SNAP-LOC 24

SNAP-LOC 24 PANEL

INSTALLING FIRST PANEL

STEPS

1. Prior to installing panel, measure from the vetical leg of the Floating Rake Angle along each

framing member and mark every 24" for panel clip placement. Care should be taken in measuring
as this helps determine panel modularity.

2. Position the first panel so the female leg is on the top of the Floating Rake Angle and the panel

is against the vertical leg of the Floating Rake Angle.

3. Slide the panel over the Gutter Drip 3" past finished wall surface.

GUTTER DRIP

Snap-Loc 24 panels can be installed going from either left to right or right to left, looking from
eave to peak. If the roof is symmetrical about the ridge and without any endlaps, the panel can
be installed on both sides simultaneously. However, if endlapping of panels is required, panels
must be installed from left to right.
The following procedures are based on installing Snap-Loc 24 panel from left to right starting
on module (full panel width). For starting panel off module see page 41.
The following procedures are for installing the Snap-Loc 24 panel to accomodate for Snap-Loc
Sculptured Gutter and Gutter Drip flashing. If Snap-Loc Sculptured Eave, is to be used,
installation can occur prior to or during roof panel installation.

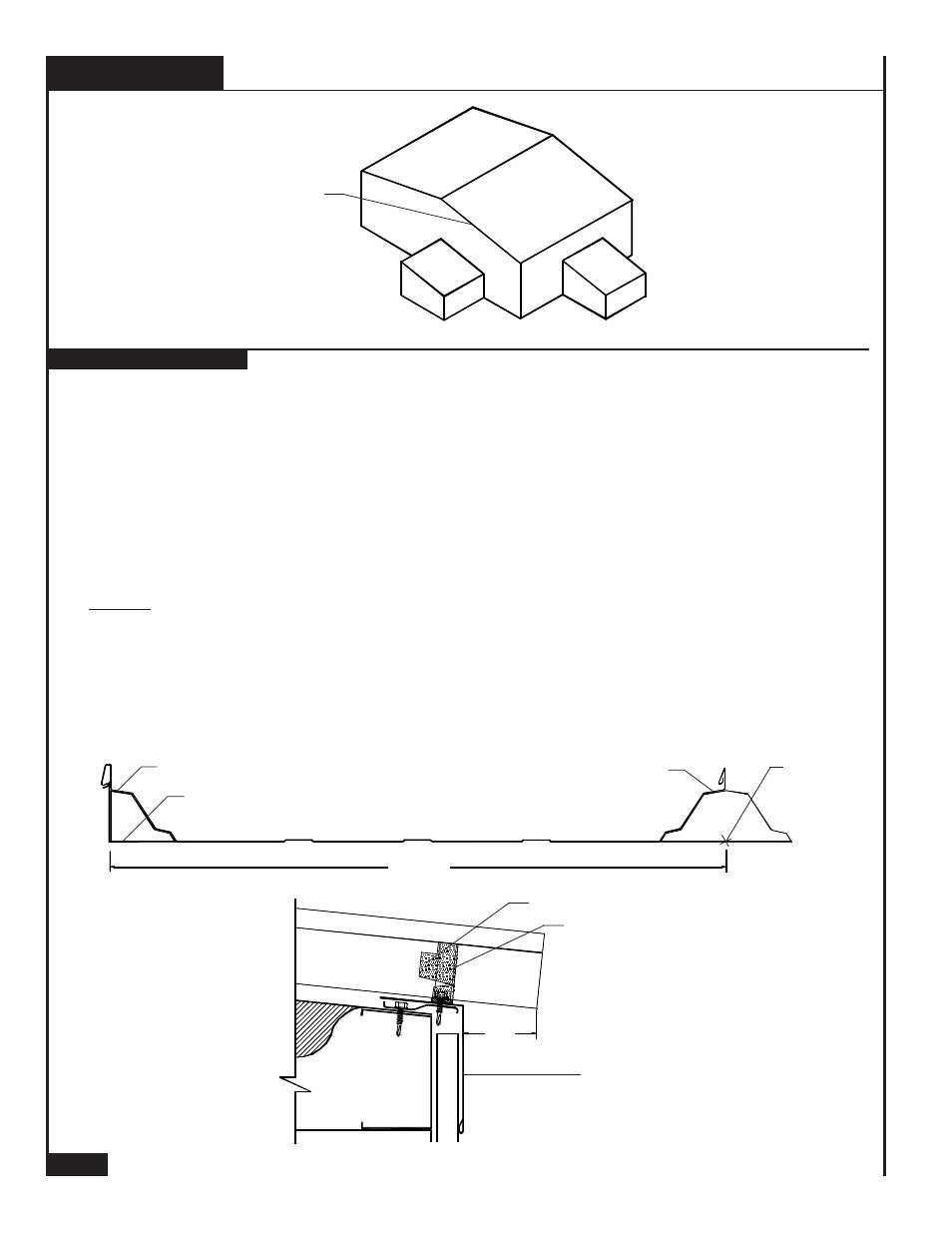

METAL INSIDE CLOSURE

INSTALLATION OF PANEL

MALE LEG

FEMALE LEG

FLOATING RAKE ANGLE

MARK FOR
PANEL CLIP
PLACEMENT

24"

DOUBLE BEAD TAPE SEALANT
(Across Top of I/S Closure)
