Snap-loc 24 installation of panel – Metal Sales Snap-Loc 24 Installation User Manual
Page 42
© Metal Sales Manufacturing Corporation / Subject to change without notice. 10/99
41
SNAP-LOC 24
INSTALLATION OF PANEL
(CONT.)

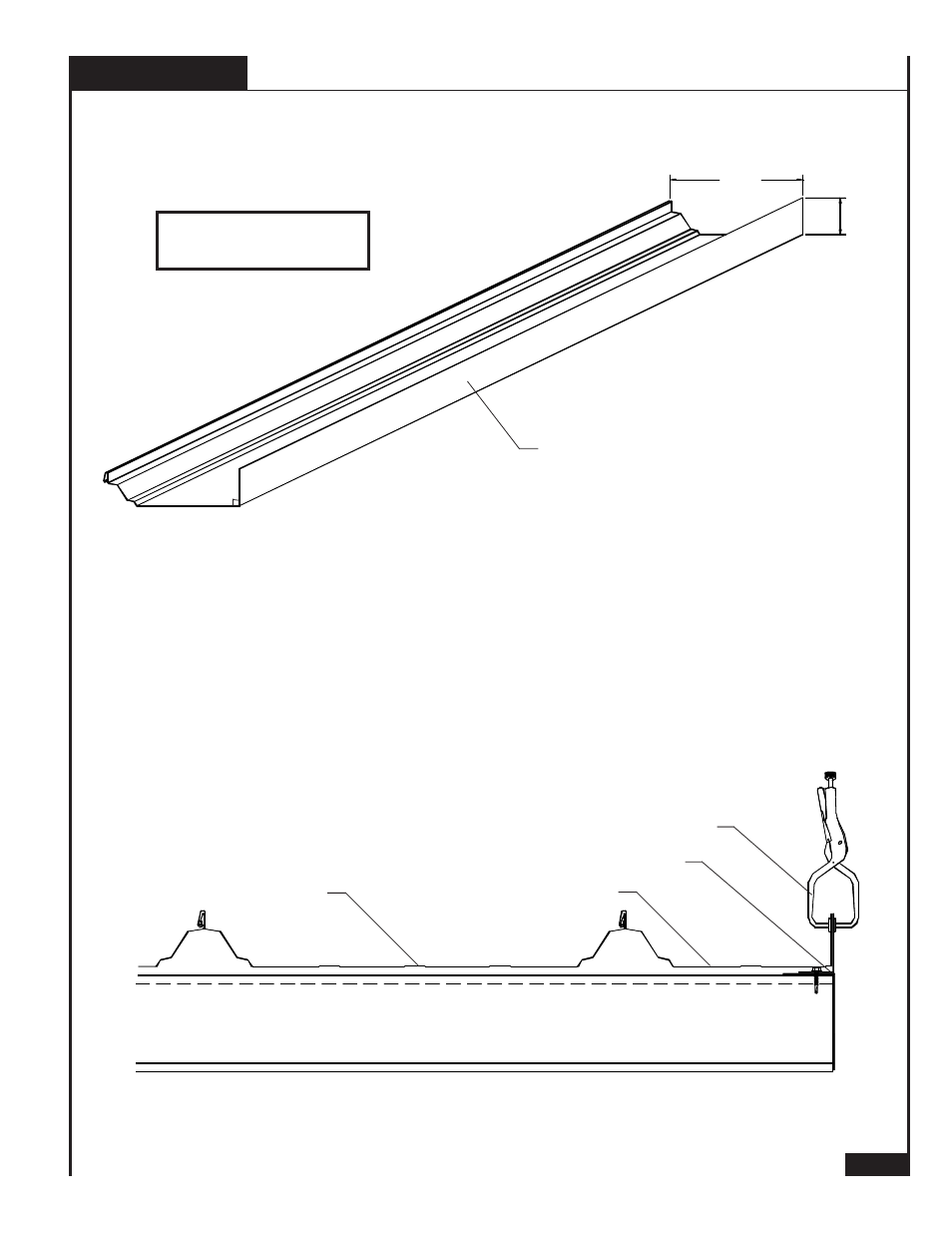

6. Field bend the cut edge of the roof panel up 90 degrees to form a vertical leg.
LAST FULL PANEL
TERMINATION PANEL
FLOATING RAKE ANGLE
"C" VICE GRIPS
A
FIELD BEND
SIMULATED MALE LEG
7. Place the termination panel between the last full panel run and the vertical leg of the Floating
Rake Angle, making sure the panel fits properly.
8. Clamp the termination panel to the vertical leg of the Floating Rake Angle temporarily, until rake
flashing can be installed.
9. Install required fasteners at eave.
3"
90
o
Note:
Minor ribs in Snap-Loc 24 panel
are not shown for clarity reasons.
