7 Data transfer
7.3 Configuring I/O data (PDO mapping)
38
Lenze · E94AYCDN communication module (DeviceNet™) · Communication Manual · DMS 5.0 EN · 02/2014 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

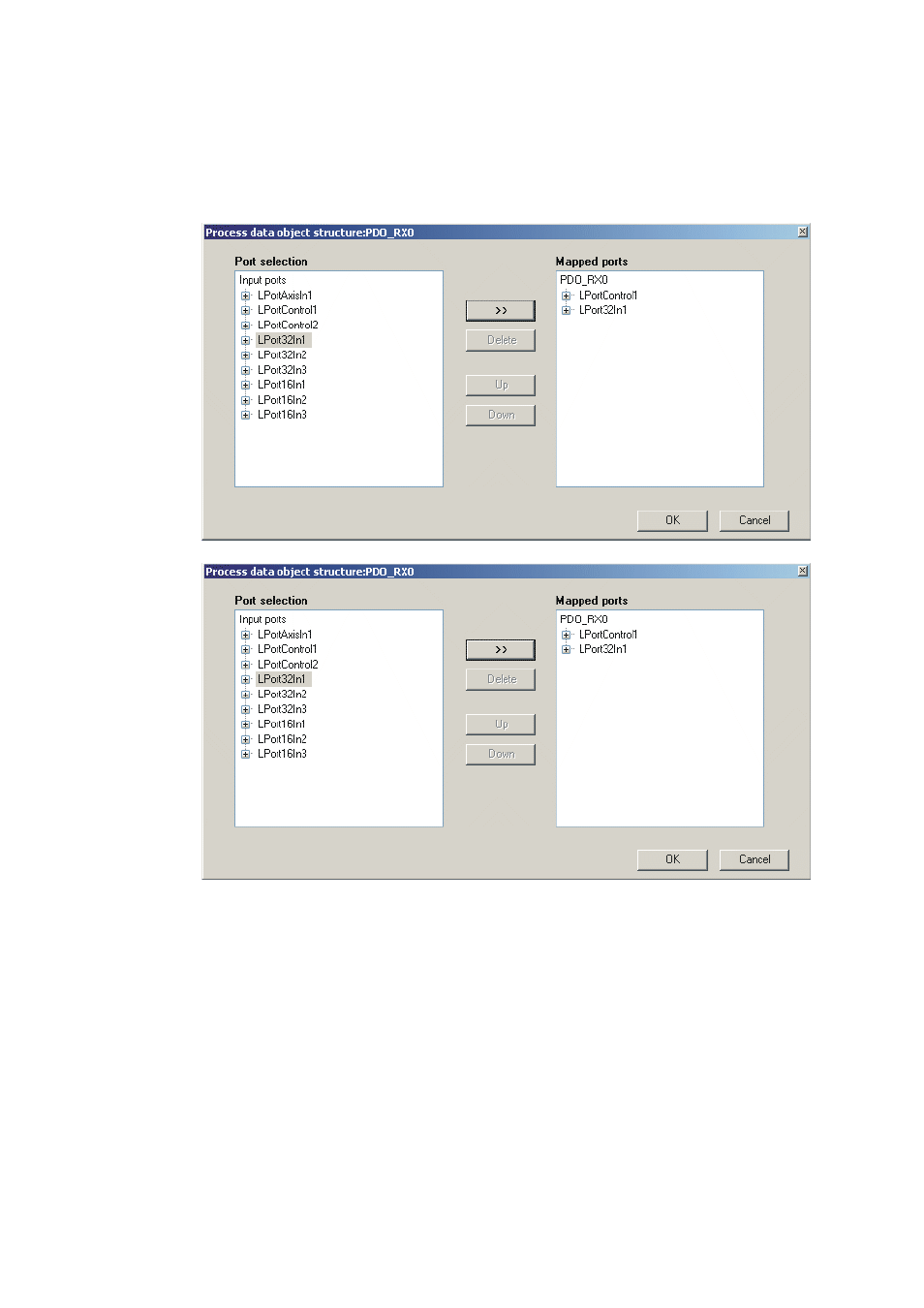

The following example shows the mapping of the ports "LPortControl1" and "Lport32In1"
into the reception PDO "PDO_RX0" and the mapping of the ports "LPortStatus1" and
"LPort32Out1" into the transmission PDO "PDO_TX0":
4. Confirm the selection with OK.
5. Repeat the steps 2. to 4. for the transmit object PDO_TX0.
6. Then link the ports to application signals in the technology application selected.
If the »FB Editor« is not enabled, this action can be carried out in the multiplexer codes
(> C03000).
If the »FB-Editor« is enabled, the multiplexer codes (> C03000) are no longer available. In
this case, the interconnection must be executed directly in the »FB Editor«.
