6
Commissioning
6.3
Possible settings via DIP switch
32
Lenze · E94AYCDN communication module (DeviceNet™) · Communication Manual · DMS 5.0 EN · 02/2014 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.3
Possible settings via DIP switch

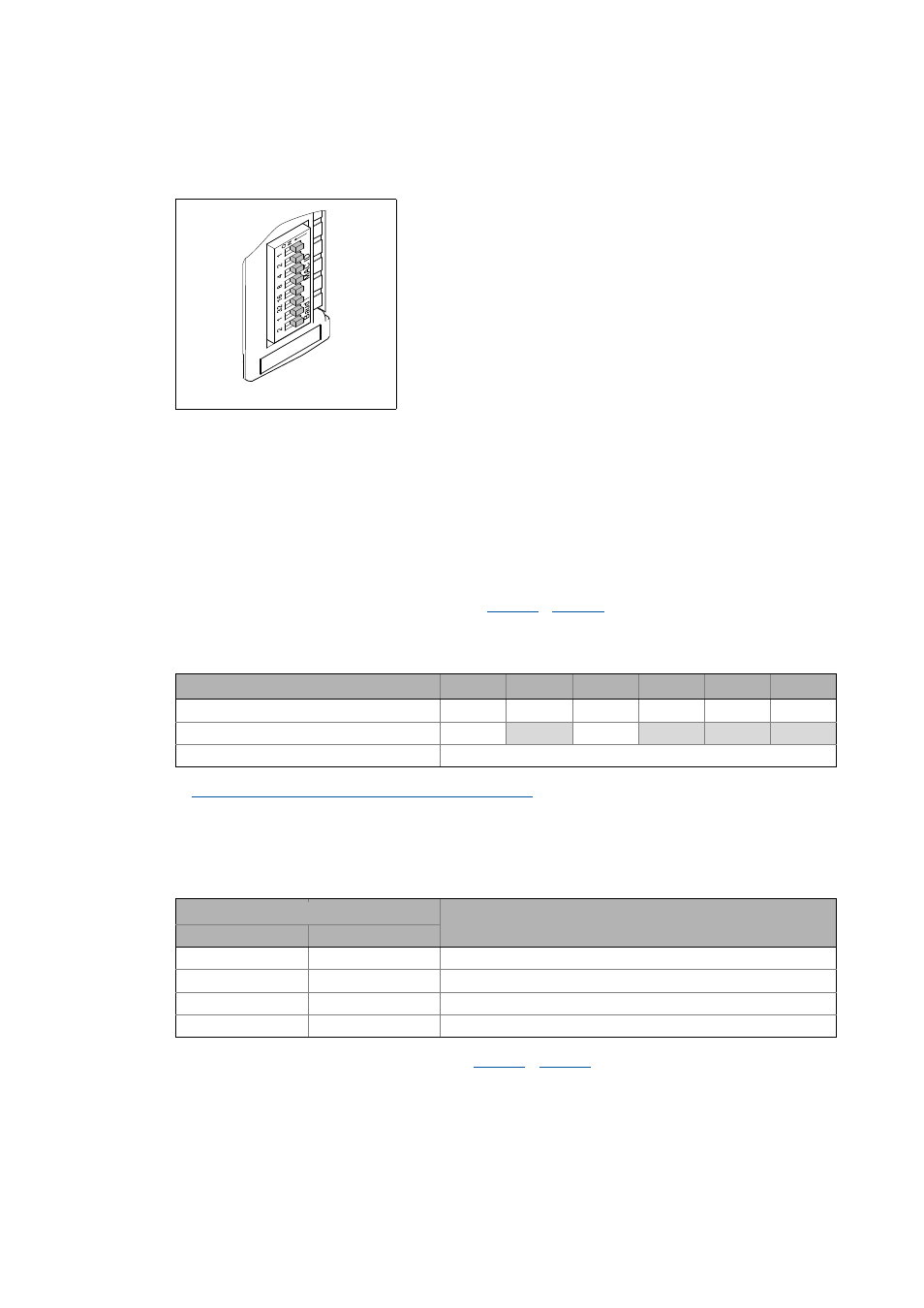

[6-1]
DIP switch
6.3.1
Setting the station address (MAC ID)
• The station address is set via the switches 1 ... 32 (MAC ID).
• The housing labelling corresponds to the binary values of the individual switches for
determining the station address.
• Valid address range: 0 … 63
• The current address setting is displayed in
/
Example: Setting of station address 23
DIP switch positions for setting the station address
6.3.2
Setting the baud rate
The baud rate is set via the switches 1 and 2 (Baud).
The current baud rate setting is displayed in
/
E94YCPM001D
The following can be set via the DIP switch on the front:
• Station address
Range: MAC ID
Switches: 1 ... 32
• Baud rate
Range: Baud
Switches: 1 and 2
Lenze setting: all switches OFF
Switch (MAC ID)
32
16
8
4
2
1
Switch status
OFF
ON
OFF
ON
ON
ON
Value
0
16
0
4
2
1
Station address
= sum of the values = 16 + 4 + 2 + 1 = 23
Switch (Baud)
Baud rate
2
1
OFF
OFF
125 kbps
OFF
ON
250 kbps
ON
OFF
500 kbps
ON
ON
No function / switch status is not supported.
