Kinze 3200 Wing-Fold Planter Rev. 5/14 - Manual (Page 92)

(IP1108)
ITEM PART NO. QTY. DESCRIPTION
1 GA8836 1 Barrel (Non-Stock Item)
2 G6408-04
GR1465 1
-
Plug W/O-Ring, 7∕16"-20 O-Ring
O-Ring
3 G6408-08
GR1037 1
-
Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
4 GD27234 1 Nylon Lock Nut, ⅞"-14, Grade 8
5 GD11983
*D12275
*D12012 1
1
1
Piston
T-Seal, 2½"
Piston Ring, 2½"
6 *D12214 1 O-Ring
7 GD10207
*D12251
*D12213
*D12212
*D12210
GD12102 1
1
1
1
1
1
Gland
U-Cup
Back-up Ring
O-Ring
Wiper
Cast Iron Ring
8 GD14529 1 Rod
9 G10324 1 Hex Jam Nut, 1"-14
10 GD23002 1 Locking Devise
11 GD14308
G10779 1
1
Threaded Sleeve End
Grease Fitting, 90°, ¼"-28
A GA10123 - Cylinder Complete, 2½" x 201∕16" (Part Number Stamped On Barrel)
B GR1521 1 Seal Kit, Includes: (1) T Seal, (2) O-Rings, (1) BU Ring, (1) U-Cup, (1) Wiper, (1)
Cast Iron Ring
*Part of seal kit, item can not be purchased individually.

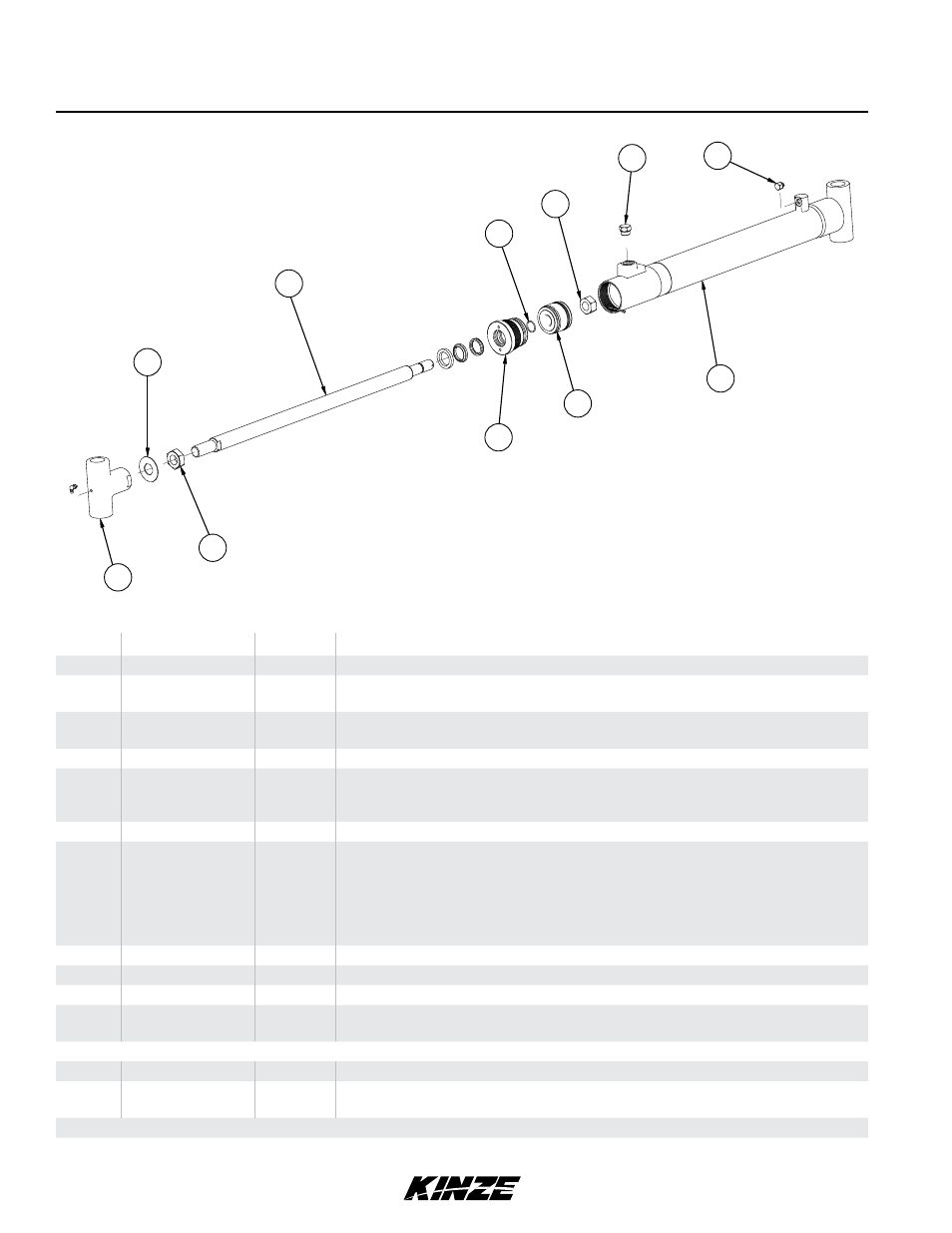

Row Marker (Cushion) Cylinder
1
2 3
4
5
6
7
8
9
11
10
M0241-02 Model 3200
P89 Rev. 5/14
