PLANTER HARNESS TO
SOLENOID ON POINT
ROW CLUTCH
(SFP46d/SFP46e/TWL71a/TWL76/TWL18/TWL76)
PLANTER TRACTOR
HARNESS HARNESS
TO BATTERY
Black
Blue
Red
Orange
Black – Ground
Blue – L.H. Two-Speed
Clutch Solenoid
Orange/Red – L.H.
Point Row Clutch
Solenoid
Black – Ground
Blue – R.H. Two-
Speed
Clutch Solenoid
Red – R.H. Point Row
Clutch Solenoid

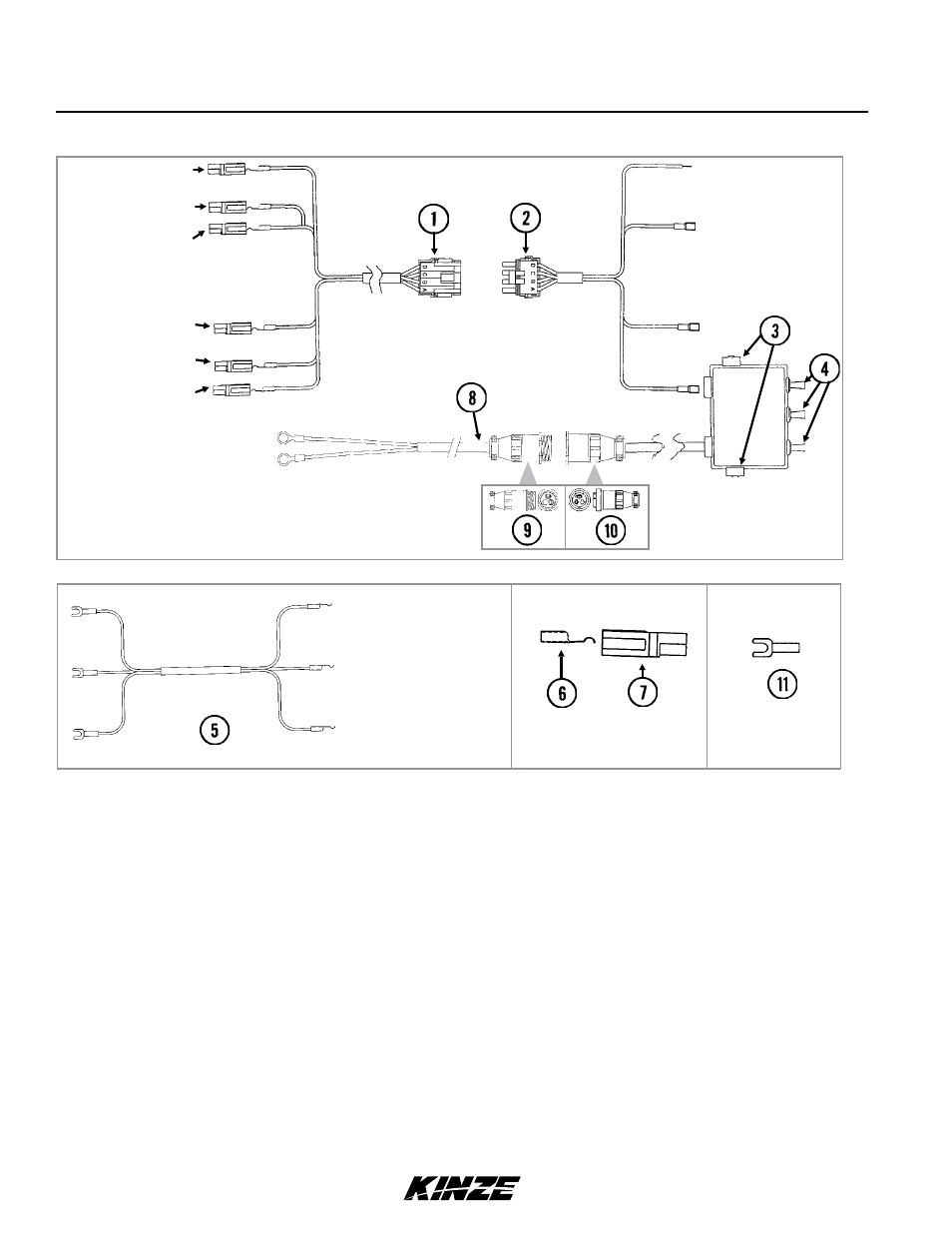

Two-Speed Point Row Clutch Electrical Components
M0241-02 Model 3200
P73 6/11
