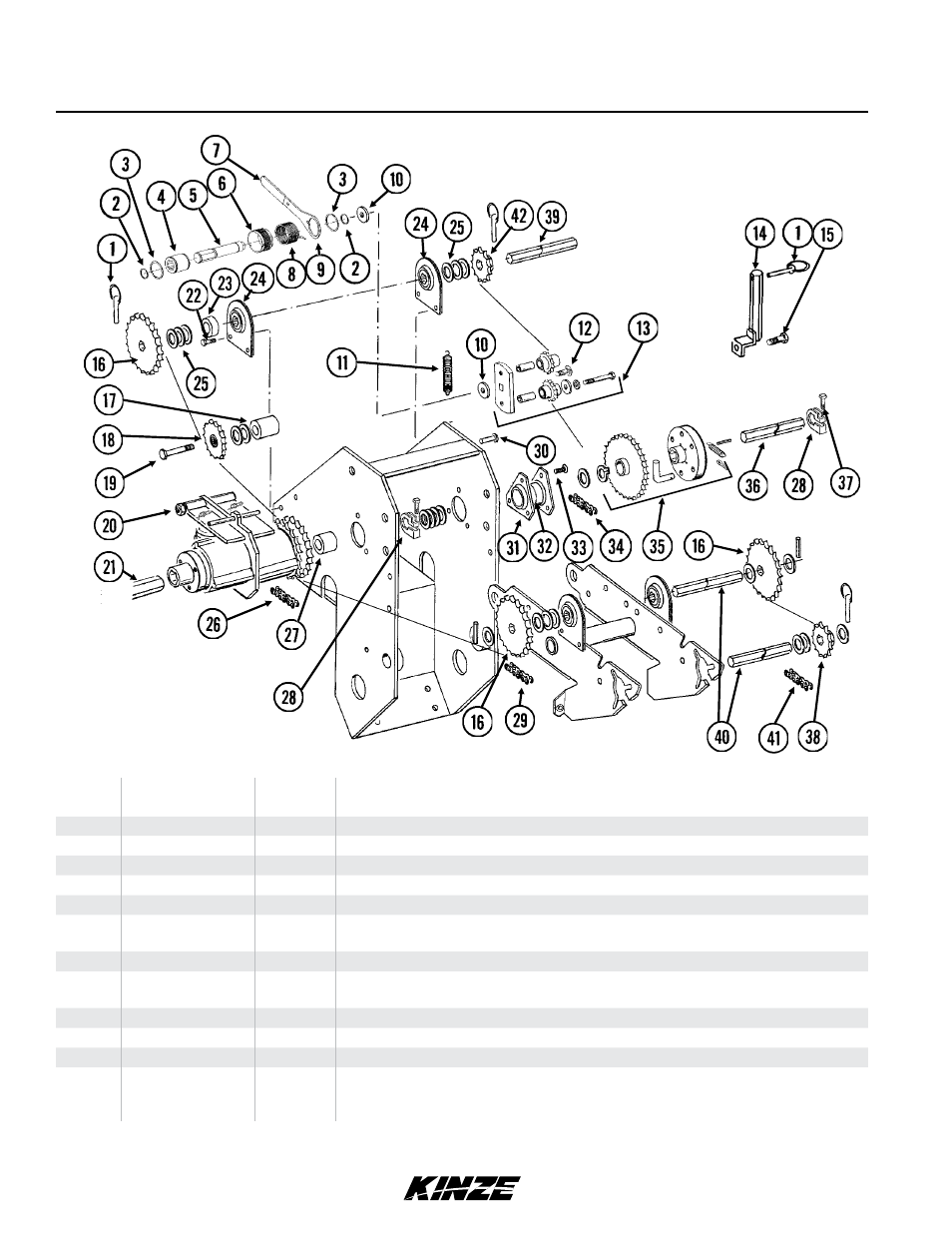

Kinze 3200 Wing-Fold Planter Rev. 5/14 - Manual (Page 78)

ITEM PART NO. QTY.
(Per Assy.)
DESCRIPTION
1 GD2558 3 Lynch Pin, ¼"
2 G10496 2 External Inverted Snap Ring, 1½"
3 G11075 2 External Inverted Snap Ring, ⅞"
4 GD14432 1 Sleeve, 1¼"
5 GD14426 1 Tightener Shaft, 3 ⅜"
6 GD19344
GD19343 -
1
Release Collar, L.H. (Shown)
Release Collar, R.H.
7 G11078 1 Vinyl Cap
8 GD14414
GD14413 1
-
Torsion Spring, R.H. (Shown)
Torsion Spring, L.H.
9 GD14431 1 Handle
10 G10235 2 Machine Bushing, ⅞", 14 Gauge
11 GD5857 1 Spring
12 G11100
G10227
G11385 1
1
1 Hex Socket Button Head Cap Screw, ¼"-20 x ½", Grade 8
Lock Washer, ¼"
Flat Washer, ¼" SAE
(EF51n)
Two-Speed Point Row Clutch Drive
M0241-02 Model 3200
P75 6/11
TM
