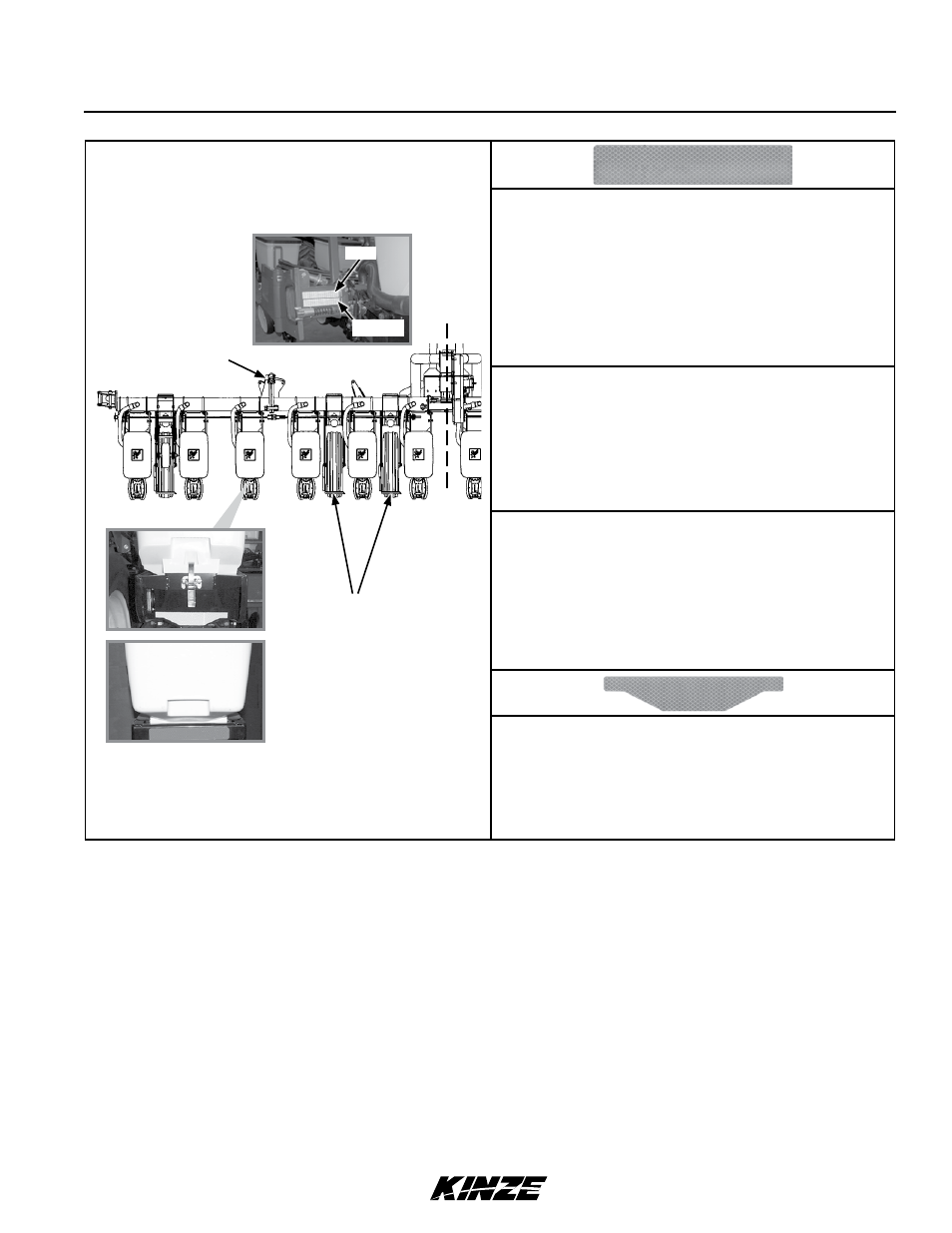

Kinze 3200 Wing-Fold Planter Rev. 5/14 - Manual (Page 147)

Decals, Paint, and Miscellaneous
TM
Model 3200 M0241-02
Rev. 7/12 P144
12 Row 30" Shown
Hinge
Center
Of
Planter
G7100-258
and
G7100-260
Red
Orange
Part No.: G7100-258
Description: Reflective Decal, Red, 1½" x 9" Rectangular
Quantity: 2 (One Located On Top Of Rear Side Of Planter
Toolbar On Each Side Of Planter) (12 Row 30"
Only)
4 (Rear-Facing In Transport Position - Two
Located On Top Of Rear Side Of Tire Scraper
On Each Side Of Planter)
Part No.: G7100-259
Description: Reflective Decal, Amber, 1½" x 9", Rectangular
Quantity: 2 (Forward-Facing In Transport Position - One
Located On The Granular Chemical Hopper
Panel Extension On First Row Unit On Outer
Side Of Hinge On Each Side Of Planter) (If
Applicable)
Part No.: G7100-260
Description: Reflective Decal, Orange, 1½" x 9" Rectangular
Quantity: 2 (One Located On Bottom Of Rear Side Of Planter
Toolbar On Each Side Of Planter) (12 Row 30" Only)
4 (Rear-Facing In Transport Position - Two Located
On Bottom Of Rear Side Of Tire Scraper On Each
Side Of Planter)
Part No.: G7100-262
Description: Reflective Decal, Amber, 1¾" x 9", Die-Cut
Quantity: 2 (Forward-Facing In Transport Position - One
Located On The Hopper Support On First Row
Unit On Outer Side Of Hinge On Each Side Of
Planter)
