Kinze 3200 Wing-Fold Planter Rev. 5/14 - Manual (Page 130)

ITEM PART NO. QTY. DESCRIPTION
1 --- - See “Liquid Fertilizer Piston Pump (Uses 18 Tooth Sprocket)” on page P139
2 GA5090
GD5753
GD5752 1
-
-
Tire And Rim Assembly (Specify Brand*)
Tire, 4.10" x 6" (Specify Brand*)
Inner Tube
3 G10602 4 Spring Pin, ¼" x 1½"
4 GA7154 2 Sprocket W/Bearing, 18 Tooth
5 GA5202 2 Sprocket, 34 Tooth
6 GA5109 1 Sprocket, 24 Tooth
7 GD5827 1 Cover
8 GA8084 1 Arm
9 G10233 9 Machine Bushing, 1", 10 Gauge
10 GD11963-01 1 Spacer, 11∕16"
(FRTZ167kk/FRTZ167j)

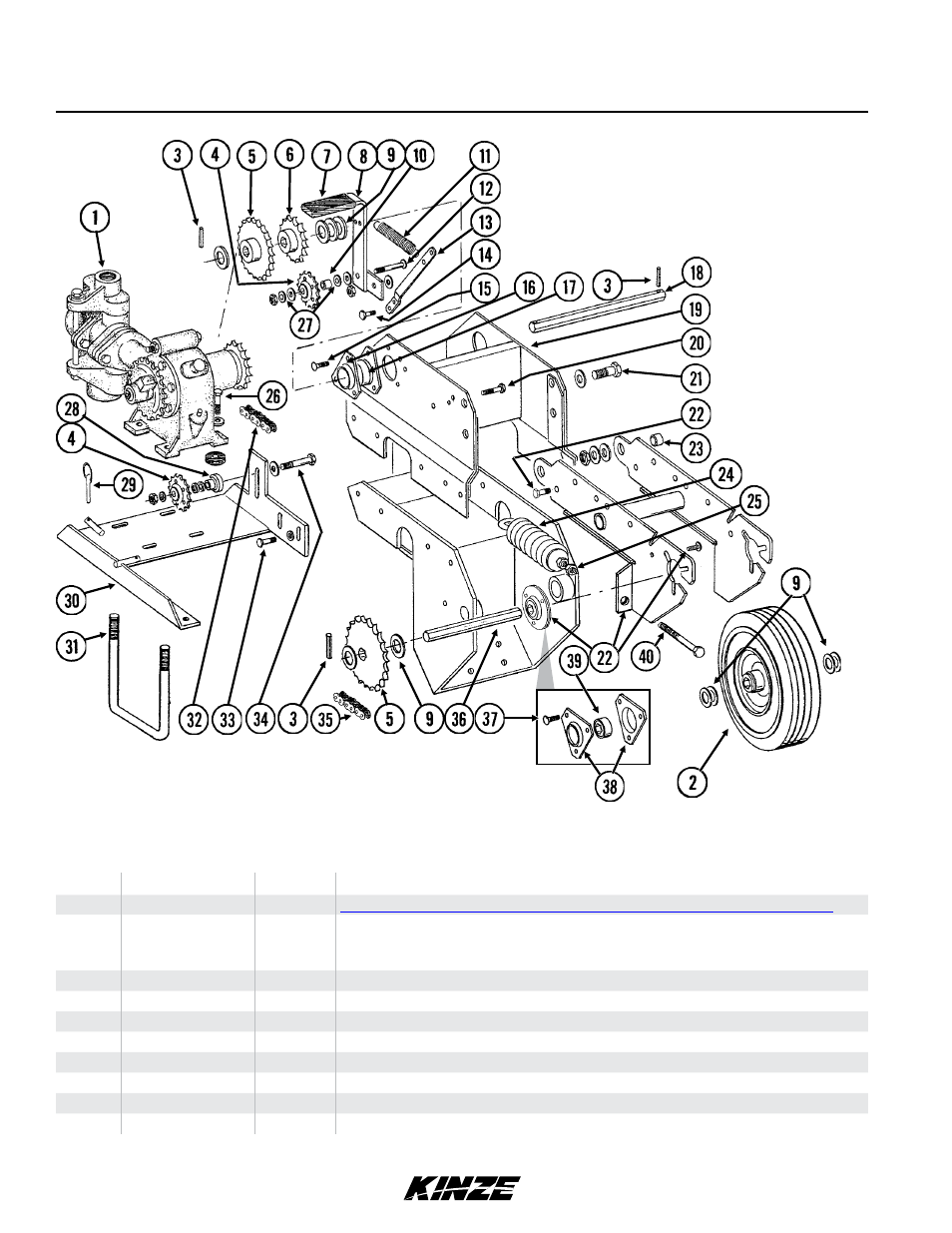

Liquid Fertilizer Piston Pump Drive
M0241-02 Model 3200
P127 6/11
