Kinze 3200 Wing-Fold Planter Rev. 5/14 - Manual (Page 86)

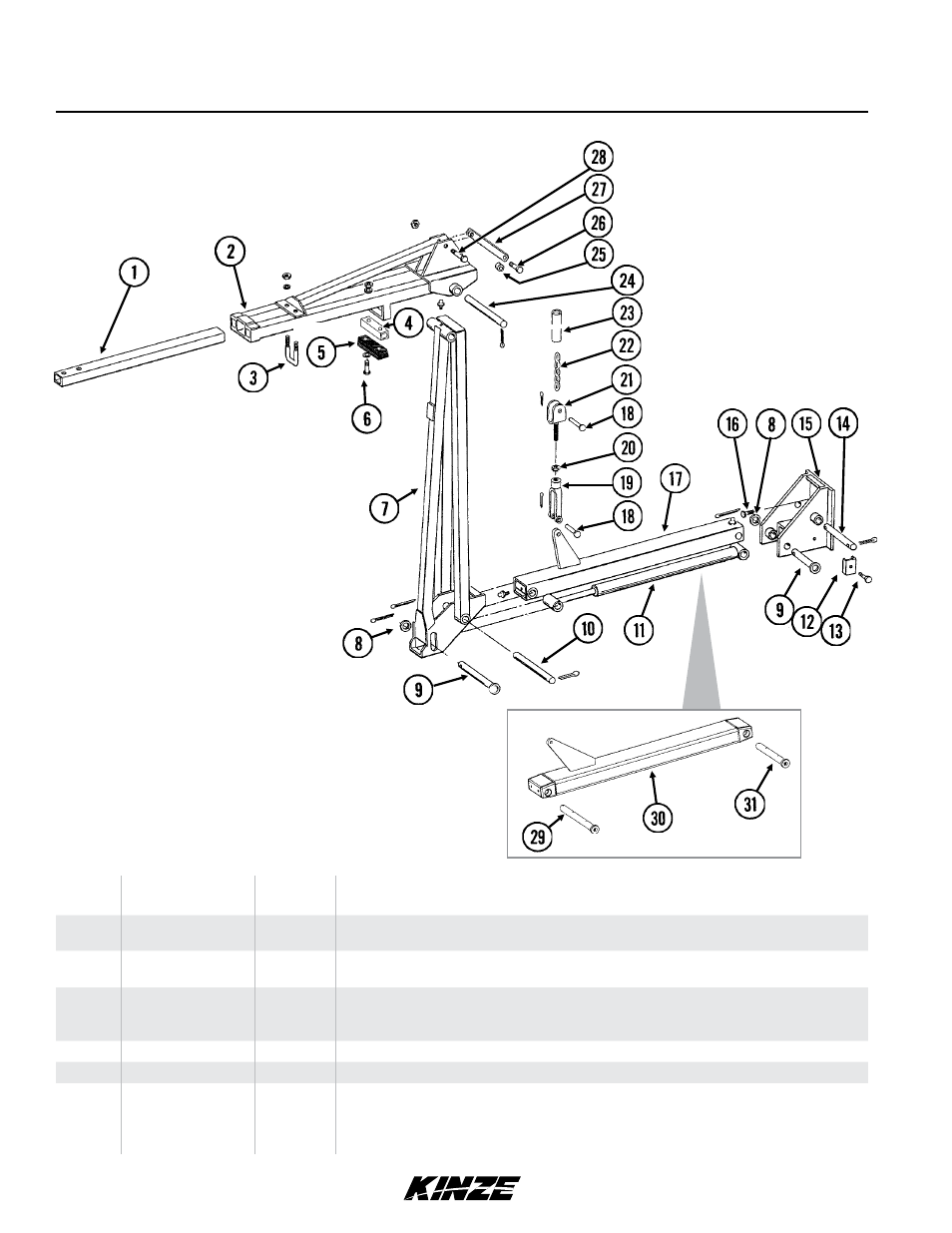

Row Marker Assembly
(MKR22gg)
ITEM PART NO. QTY.
(Per Assy.)
DESCRIPTION
1 GD0453-02
GD0453-03 1
-
Extension Tube, 40", 8 Row 36"/38"
Extension Tube, 50", 12 Row 30"
2 GA8120
GA8075 1
-
Arm, Third Stage, 19½", 8 Row 36"/38"
Arm, Third Stage, 35", 12 Row 30"
3 GD2721
G10228
G10102 1
2
2 U-Bolt, 2" x 2" x ½"-13
Lock Washer, ½"
Hex Nut, ½"-13
4 GD11141 1 Spacer, 8 Row 36"/38" Only
5 GA9145 1 Molded Stop, 6¼" Long
6 G10047
G10809
G10203
G10108 2
-
2
2
Hex Head Cap Screw, ⅜"-16 x 1¾"
Hex Head Cap Screw, ⅜"-16 x 3¼"
Washer, ⅜" SAE
Lock Nut, ⅜"-16
R.H. Side Shown
M0241-02 Model 3200
P83 6/11
TM
