Kinze 3200 Wing-Fold Planter Rev. 5/14 - Manual (Page 52)

(A11958)
ITEM PART NO. QTY. DESCRIPTION
1 GA4293
GR2041 1
-
Check Valve
Seal Kit
2 G6408-06
GR1045 1
-
Plug W/O-Ring, 9∕16"-18 O-Ring
O-Ring
3 G6408-12
GR1467 1
-
Plug W/O-Ring, 11∕16"-12 O-Ring
O-Ring
4 G6400-10
GR1466 1
-
Connector W/O-Ring, ⅞"-14 Male JIC To O-Ring
O-Ring
5 G6400-06
GR1045 1
-
Connector W/O-Ring, 9∕16"-18 Male JIC To O-Ring
O-Ring
6 G6400-12
GR1467 2
-
Connector W/O-Ring, 11∕16"-12 Male JIC To O-Ring
O-Ring
7 G10681 1 Hose Clamp, No. 6
8 GD16188 1 Valve Block
9 GA11934 1 Relief Valve Cartridge
10 G6801-06
GR1045 1
-
Elbow W/O-Ring, 90°, 9∕16"-18 Male JIC To O-Ring
O-Ring
11 G6500-06 1 Swivel Elbow, 90°, 9∕16"-18 Male JIC To Female
12 G6801-10
GR1466 1
-
Elbow W/O-Ring, 90°, ⅞"-14 Male JIC To O-Ring
O-Ring
13 G6500-12 1 Swivel Elbow, 90°, 11∕16"-12 Male JIC To Female
14 GD11700 1 Adapter, ¼" NPT To ⅜" Barb
15 GD6279-05 1 Clear Plastic Tubing, 9∕16" O.D. x 60"

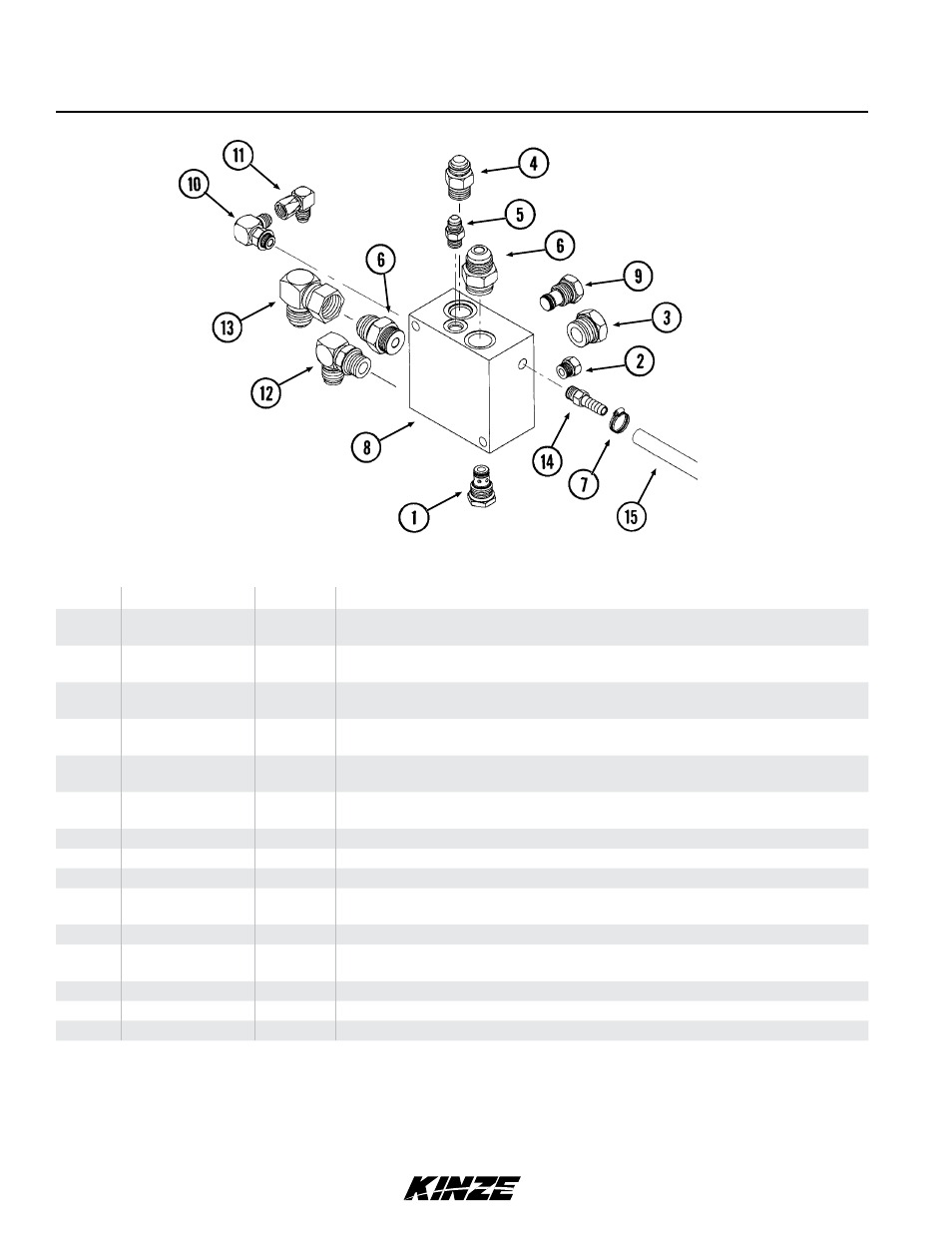

Vacuum Fan Motor Valve Block Assembly (Located Below
Vacuum Fan Motor Assembly)
