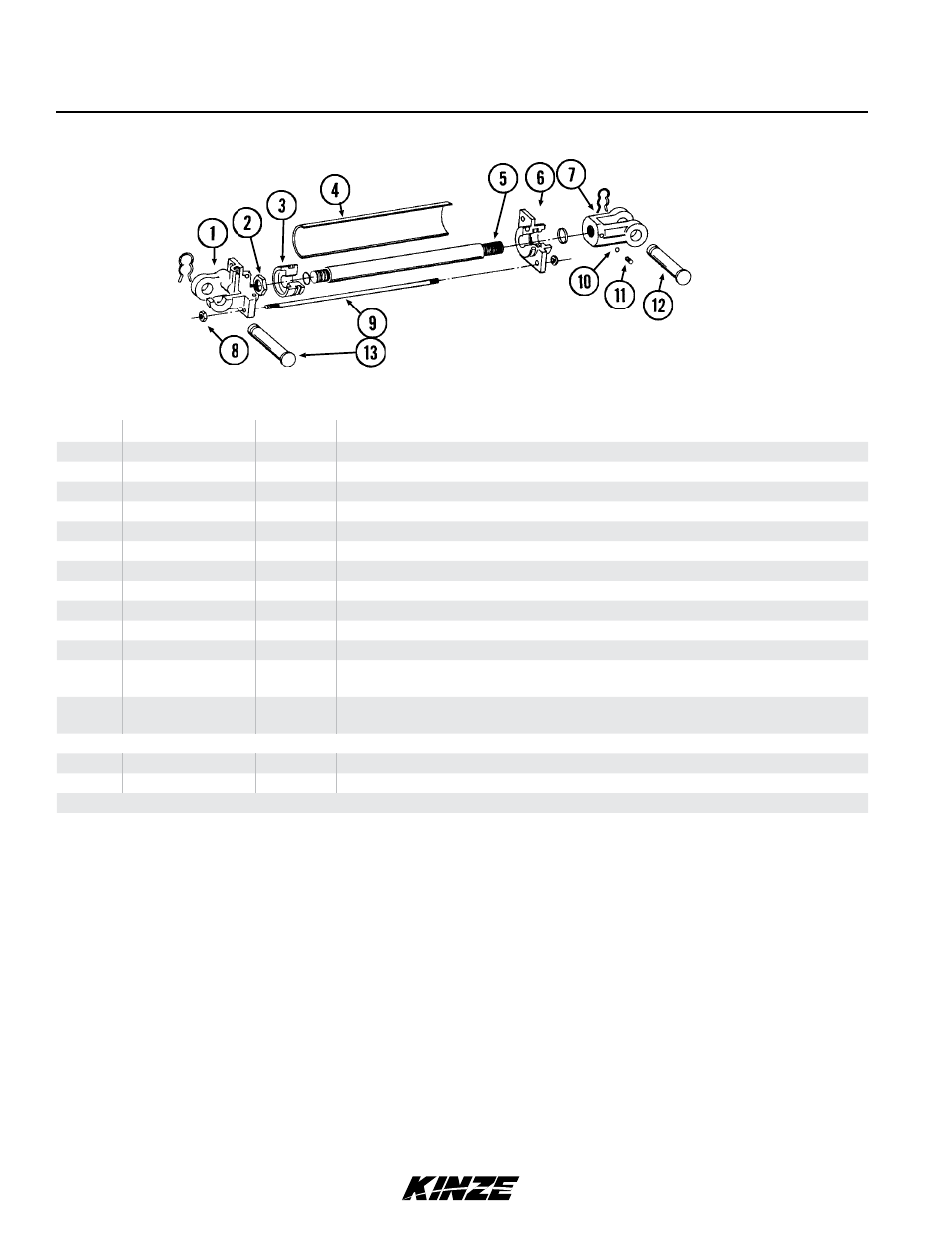

Dual Lift Assist Cylinder
(CYL22c)
ITEM PART NO . QTY . DESCRIPTION
1 GR1511 1 Clevis
2 GD27236 1 Nylon Lock Nut, 1⅛"-12, Grade 8
3 GR1512 1 Piston
4 R1510 - Barrel (Non-Stock Item)
5 GR1508 1 Shaft
6 GR1509 1 Gland
7 GR1507 1 Clevis
8 G10102 8 Hex Nut, ½"-13
9 GR1506 4 Tie Rod
10 GR0716 1 Nylon Ball
11 G10072 1 Hex Socket Set Screw, ⅜"-16 x ⅜"
12 GR1504
GR0193 1
-
Pin W/Clip
Hair Pin Clip
13 GR0717
GR0193 1
-
Pin W/Clip
Hair Pin Clip
A GA5482C - Cylinder Complete W/Pins And Clips, 3½" x 8"
B GR1505 - Seal Kit, Includes: (1) Wiper, (2) BU Rings, (3) O-Rings, (1) U-Cup, (1) Seal
IDENTIFICATION NOTE: “Energy” and date-code “3899” (week 38/year 1999 or later) cast in barrel .
3⁄4
"-16 O-Ring Ports
TM
Model 3140 M0245-02
P93 Rev . 5/14
