ITEM PART NO . QTY . DESCRIPTION
1 --- - See “Wing Down Flex Cylinder Package” on page P55
2 G6801-06-08
GR1037 4
-
Elbow W/O-Ring, 90°, 9⁄16"-18 Male JIC To ¾"-16 O-Ring
O-Ring
3 *A7600 4 Hose Assembly, ¼" x 260"
4 *A7601 4 Hose Assembly, ¼" x 80", 12 Row 36"/38"/40" And 16 Row 30" Only
5 GD4086 2 ISO Coupler
6 *A1198 2 Hose Assembly, ¼" x 60"
7 G306-06 2 Lock Nut, 9⁄16"-18
8 G2703-06 2 Bulkhead Tee, 9⁄16"-18 Male JIC
9 G10159 4 Machine Bushing, 1¼", 10 Gauge
10 G6500-06 4 Swivel Elbow, 90°, 9⁄16"-18 Male JIC To Female
* Hydraulic hose is not stocked by Kinze Repair Parts, but can be made available on a special order basis . Call for quote .
B
A
A A
B B
SMV Bulkhead Mount ( See “Center Drop Assembly and Driveline”
on page P79 )
(HYD2-17)

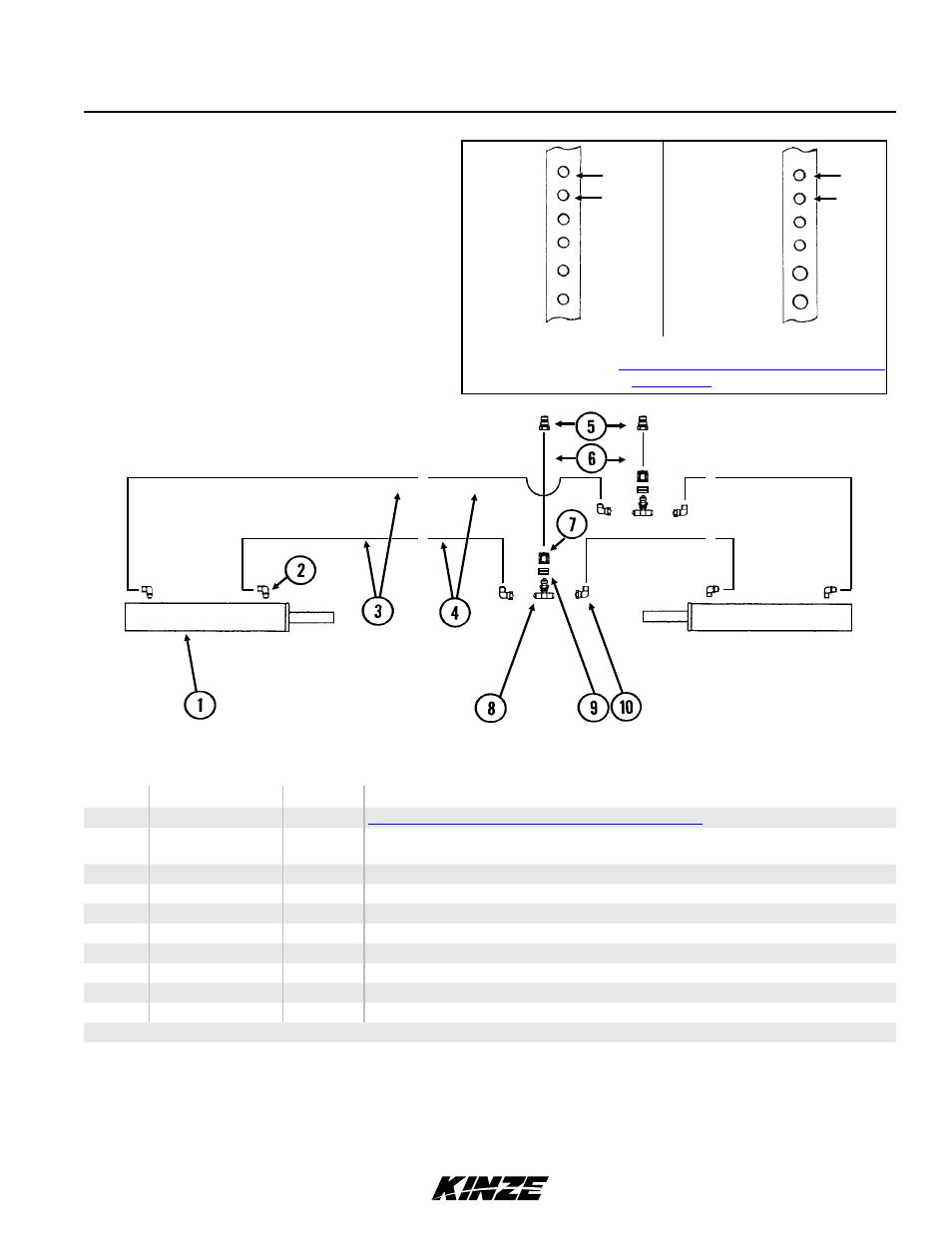

Wing Down Flex Cylinder Package Hydraulic System
12 Row 36"/38"/40" and 16 Row 30" 12 Row 30"
M0245-02 Model 3140
9/12 P104
