ITEM PART NO . QTY . DESCRIPTION
1 --- - See “Row Marker (Cushion) Cylinder” on page P90
2 G6801-06-08
G6801-08
GR1037 2
-
-
Elbow W/O-Ring, 90°, 9⁄16"-18 Male JIC To ¾"-16 O-Ring, 12 Row 30"
Elbow W/O-Ring, 90°, ¾"-16 Male JIC To O-Ring, 12 Row 36"/38"/40" and 16 Row 30"
O-Ring
3 G6400-06-04
G6400-08-04
GR1465 -
-
- Connector W/O-Ring, 9⁄16"-18 Male JIC To 7⁄16"-20 O-Ring, 12 Row 30"
Connector W/O-Ring, ¾"-16 Male JIC To 7⁄16"-20 O-Ring, 12 Row 36"/38"/40" and 16 Row 30"
O-Ring
4 *A1176
*A1072 4
-
Hose Assembly, ¼" x 48", 12 Row 30"
Hose Assembly, ⅜" x 48", 12 Row 36"/38"/40" And 16 Row 30"
5 *A1118
*A3200
*A3192 2
-
-
Hose Assembly, ¼" x 295", 12 Row 30"
Hose Assembly, ⅜" x 354", 12 Row 36"/38"
Hose Assembly, ⅜" x 370", 12 Row 38"/40" And 16 Row 30"
6 *A1109
*A3201
*A3191 2
-
-
Hose Assembly, ¼" x 145", 12 Row 30"
Hose Assembly, ⅜" x 176", 12 Row 36"/38"
Hose Assembly, ⅜" x 192", 12 Row 38"/40" And 16 Row 30"
7 --- - See “Row Marker Sequencing/Flow Control Valve and Mount” on page P95
8 *A1150
*A3274 2
-
Hose Assembly, ¼" x 103", 12 Row 30"
Hose Assembly, ⅜" x 116", 12 Row 36"/38"/40" and 16 Row 30"
9 GD4086 2 ISO Coupler
10 *A1198
*A1047 2
-
Hose Assembly, ¼" x 60", 12 Row 30"
Hose Assembly, ⅜" x 60", 12 Row 36"/38"/40" And 16 Row 30"
11 G6500-06
G6500-08 2
-
Swivel Elbow, 90°, 9⁄16"-18 Male JIC To Female, 12 Row 30"
Swivel Elbow, 90°, ¾"-16 Male JIC To Female, 12 Row 36"/38"/40" And 16 Row 30"
12 G306-06
G306-08 2
-
Lock Nut, 9⁄16"-18, 12 Row 30"
Lock Nut, ¾"-16, 12 Row 36"/38"/40" And 16 Row 30"
13 G2703-06
G2703-08 2
-
Bulkhead Tee, 9⁄16"-18 Male JIC, 12 Row 30"
Bulkhead Tee, ¾"-16 Male JIC, 12 Row 36"/38"/40" And 16 Row 30"
14 G304-C-06
G304-C-08 2
-
Cap Nut, 9⁄16"-18, 12 Row 30"
Cap Nut, ¾"-16, 12 Row 36"/38"/40" And 16 Row 30"
* Hydraulic hose is not stocked by Kinze Repair Parts, but can be made available on a special order basis . Call for quote .

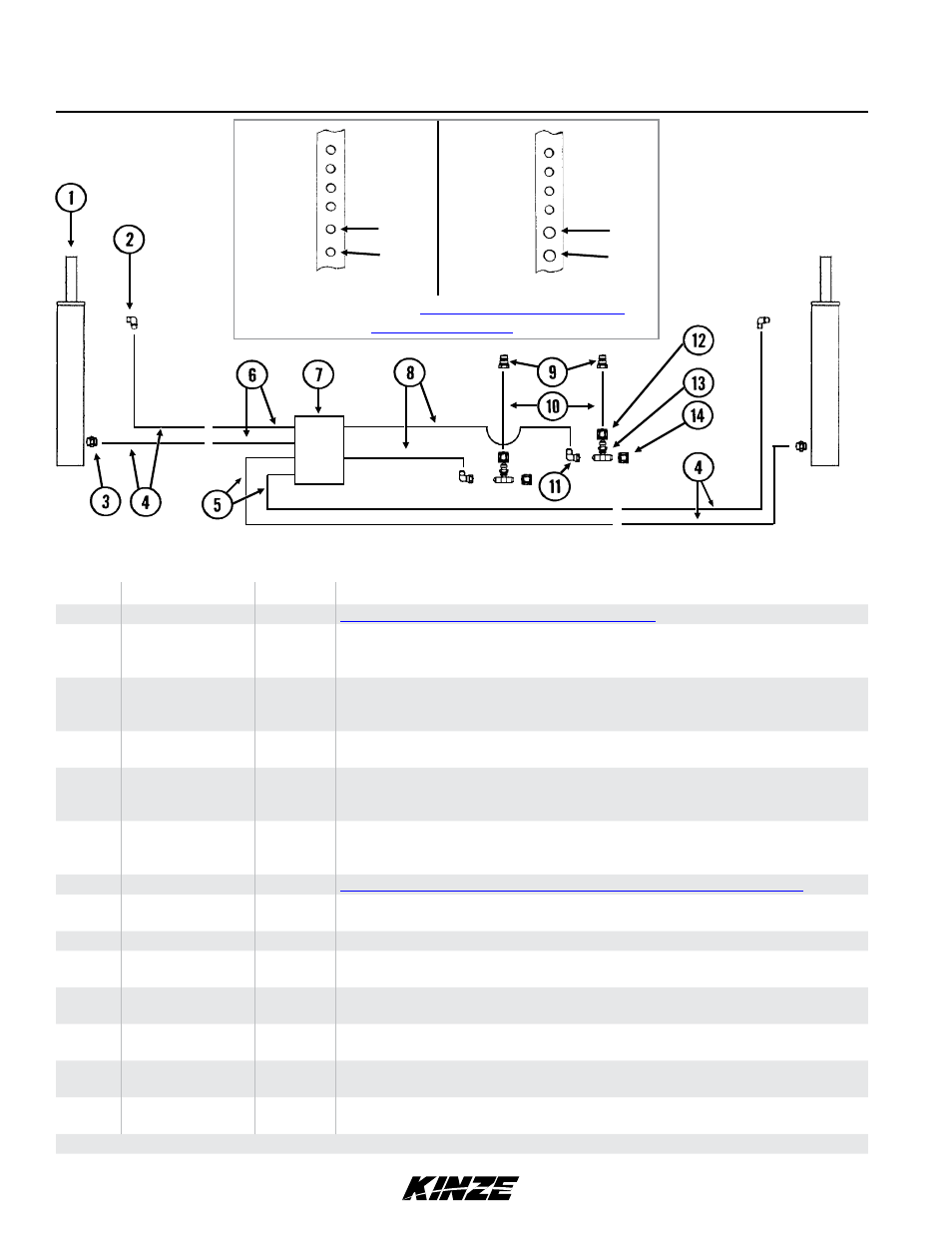

Row Marker Hydraulic System
(HYD2-17)
A A
B B
12 Row 30"
SMV Bulkhead Mount ( See “Center Drop Assembly and
Driveline” on page P79 )
A
B
R1 1
C1
C2 2
R2
12 Row 36"/38"/40" and 16 Row 30"
TM
Model 3140 M0245-02
P101 9/12
