ITEM PART NO . QTY . DESCRIPTION
1 --- - See “Dual Lift Assist Cylinder” on page P92
2 G2501-06-08
G6801-06-08
GR1037 4
-
-
Elbow, 90°, 9⁄16"-18 Male JIC To ½" NPT
Elbow W/O-Ring, 90°, 9⁄16"-18 Male JIC To ¾"-16 O-Ring
O-Ring
3 G2703-06 2 Bulkhead Tee, 9⁄16"-18 Male JIC
4 G306-06 2 Lock Nut, 9⁄16"-18
5 *A1116 4 Hose Assembly, ¼" x 136"
6 *A1198 2 Hose Assembly, ¼" x 60"
7 GD4086 2 ISO Coupler
8 G6602-06 1 Swivel Tee, 9⁄16"-18 JIC
9 G6500-06 1 Swivel Elbow, 90°, 9⁄16"-18 Male JIC To Female
10 *A1140 1 Hose Assembly, ¼" x 52"
11 G6400-06-08
GR1037 1
-
Connector W/O-Ring, 9⁄16"-18 Male JIC To ¾"-16 O-Ring
O-Ring
12 --- - Accumulator, See “Dual Lift Assist Wheels” on page P63
* Hydraulic hose is not stocked by Kinze Repair Parts, but can be made available on a special order basis . Call for quote .
A A
B B
B
A

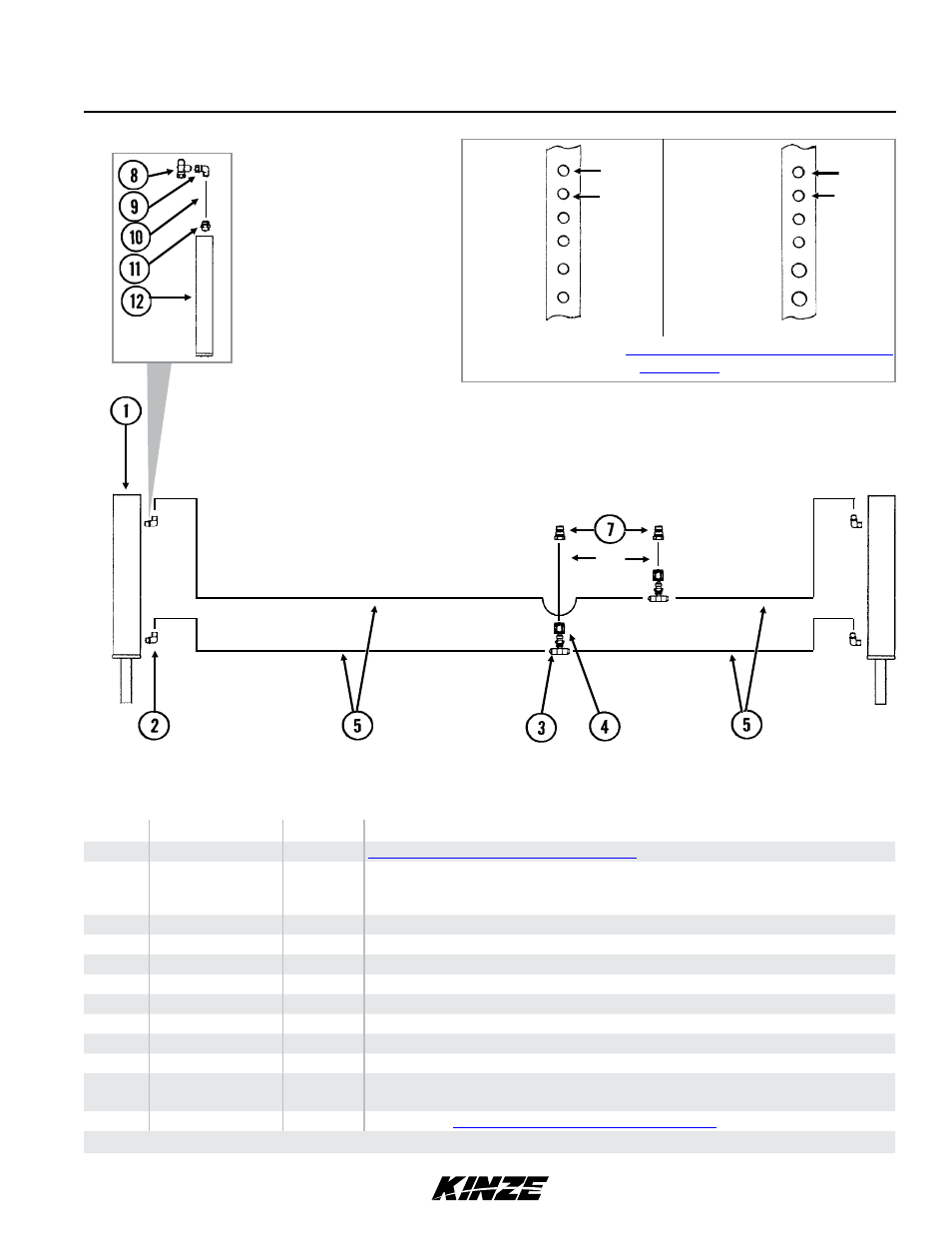

Dual Lift Assist Wheel Package Hydraulic System
12 Row 30" 12 Row 36"/38"/40" And 16 Row 30"
SMV Bulkhead Mount ( See “Center Drop Assembly and Driveline”
on page P79 )
(HYD2-17)
16 Row 30"
