Black L .H . Side
PLANTER TRACTOR
Blue HARNESS HARNESS
Orange R .H . Side
Red
TO BATTERY
CONTROL BOX ON TRACTOR

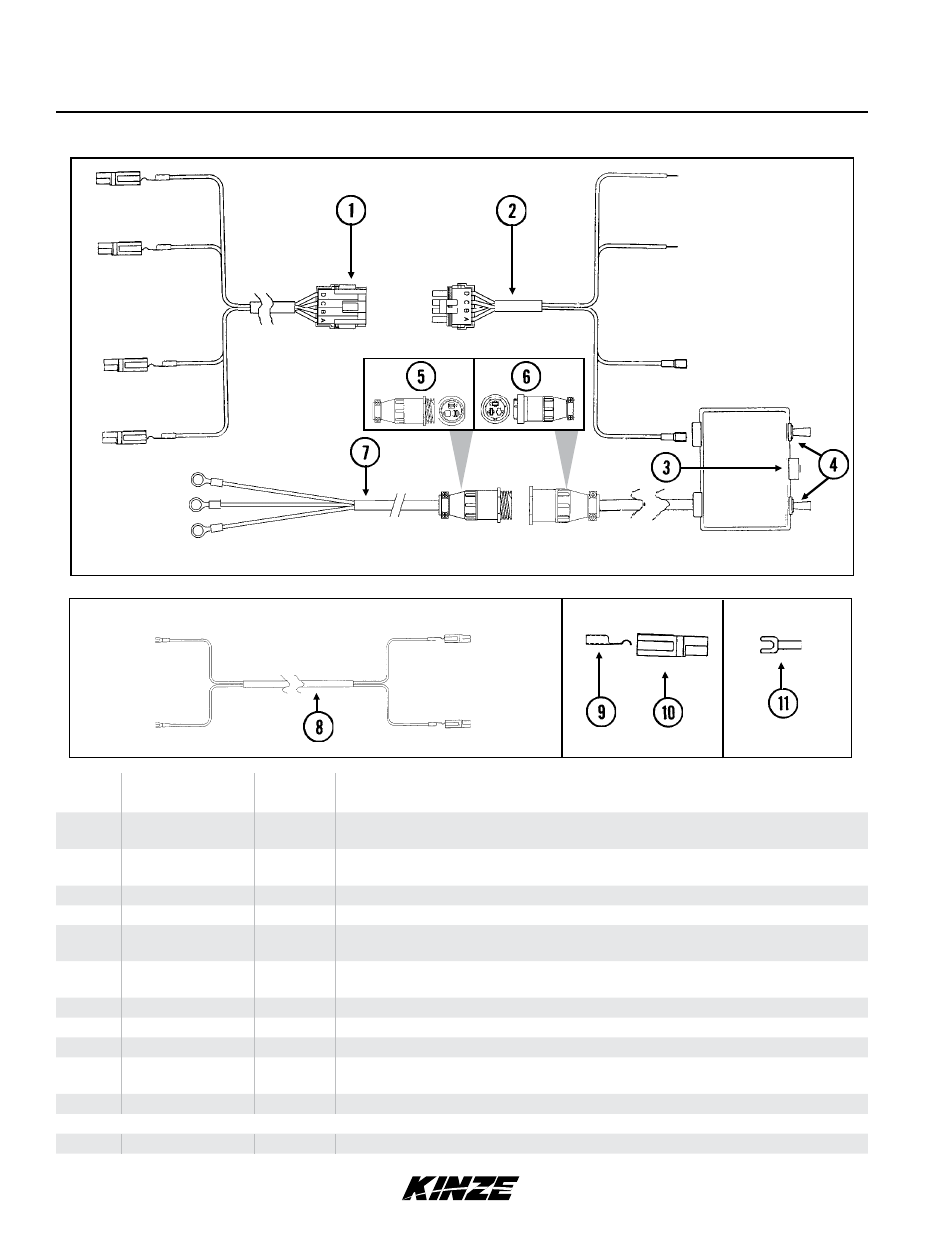

Point Row Clutch Electrical Components
(EF10b/ELC34/ELC35/EF10c/SFP6/TWL18/TWL76)
Connects To Clutch Solenoid Connects To Planter Harness
Black
Blue
Orange
Red
ITEM PART NO . QTY .
(Per Assy .)
DESCRIPTION
1 GR1450
GA8328 -
- Harness W/4-Pin Connector, 60"
4-Pin Connector W/Female Housing, 4 Seals And 4 Pin Contacts
2 GR1447
GA8329 -
- Harness W/4-Pin Connector, 152"
4-Pin Connector W/Male Housing, 4 Seals And 4 Socket Contacts
3 GA7165 - Circuit Breaker, 12 Amp
4 GA7144 - Two-Position Switch
5 G1K267 - Power Lead Adapter Connector Kit, Includes: (1) 3-Pin Connector, (1) Cable Clamp,
(3) Male Terminal Pins
6 G1K268 - Console Cable Connector Kit, Includes: (1) 3-Pin Connector, (1) Cable Clamp, (1)
Lock Ring, (3) Female Terminal Pins
7 GA17547 1 Power Lead Adapter
8 GA7416 1 Wiring Harness, 288"
9 GD9530 - Contact
10 GD9529
GD12726 -
- Housing, Black
Housing, Red
11 G10996 - Fork Terminal
A GA8747 - Control Box Assembly (Items 1-4 and 10)
TM
Model 3140 M0245-02
P71 Rev . 5/13
