Kinze 3140 Stack Fold Planter Rev. 5/14 - Manual (Page 95)

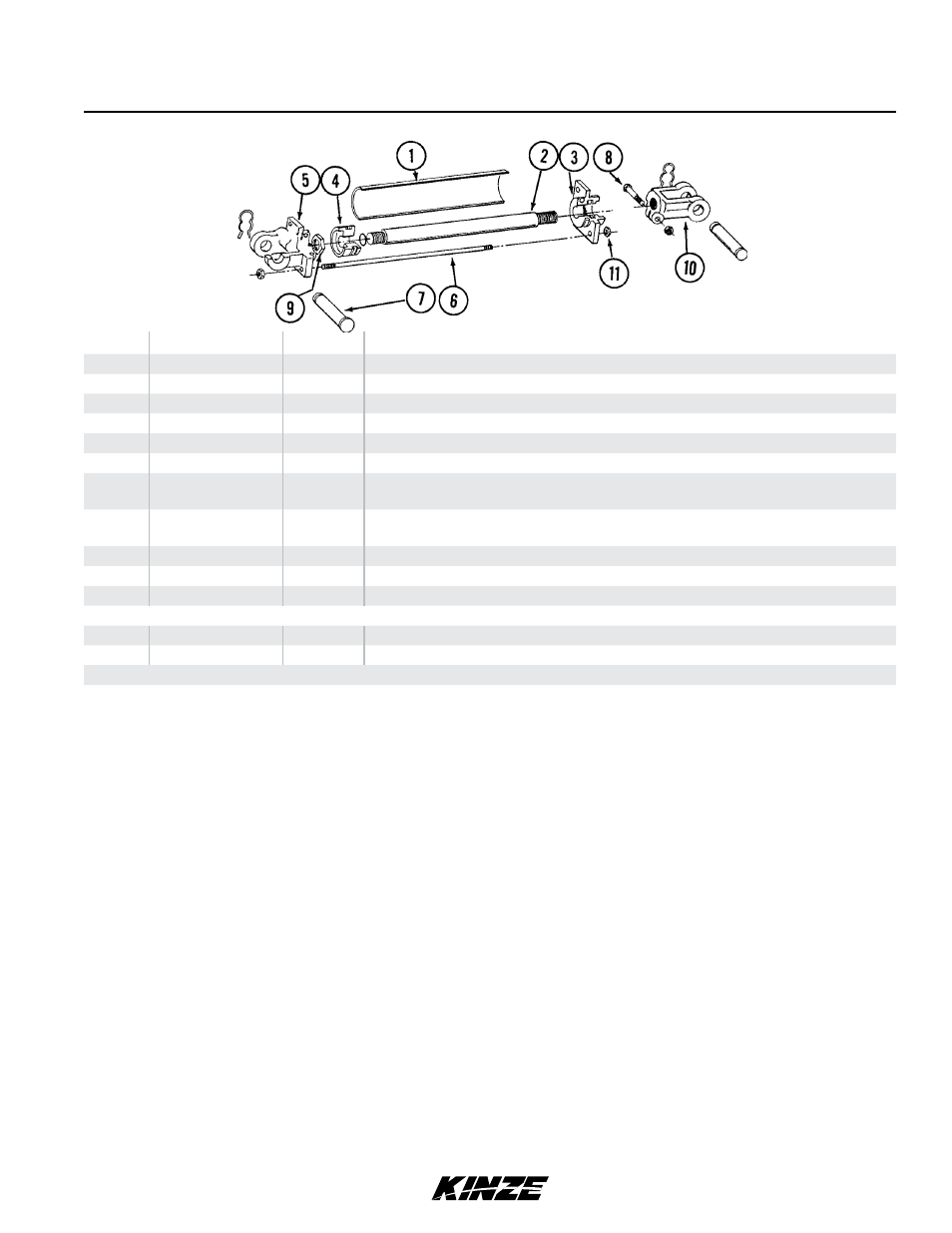

Dual Lift Assist Cylinder
ITEM PART NO . QTY . DESCRIPTION
1 R1274 1 Barrel (Non-Stock Item)
2 GR1273 1 Shaft
3 GR1271 1 Gland
4 GR1272 1 Piston
5 GR1270 1 Clevis
6 GR1024 4 Tie Rod
7 GR0717
GR0193 2
-
Pin W/Clip
Hair Pin Clip
8 G10047
G10101 1
1 Hex Head Cap Screw, ⅜"-16 x 1¾"
Hex Nut, ⅜"-16
9 GR1278 1 Special Nut, 1"-14 UNS
10 GR1276 1 Clevis
11 GR0181 8 Hex Nut, ½ "-13
A GA5482B - Cylinder Complete W/Pins And Clips, 3½" x 8"
B GR1279 - Seal Kit, Includes: (3) BU Seals, (5) O-Rings, (1) C/R Seal
IDENTIFICATION NOTE: Decal on barrel identifies “Lion Hydraulics” .
