Kinze 3140 Stack Fold Planter Rev. 5/14 - Manual (Page 116)

TM
M0245-02 Model 3140
P113 Rev . 5/13

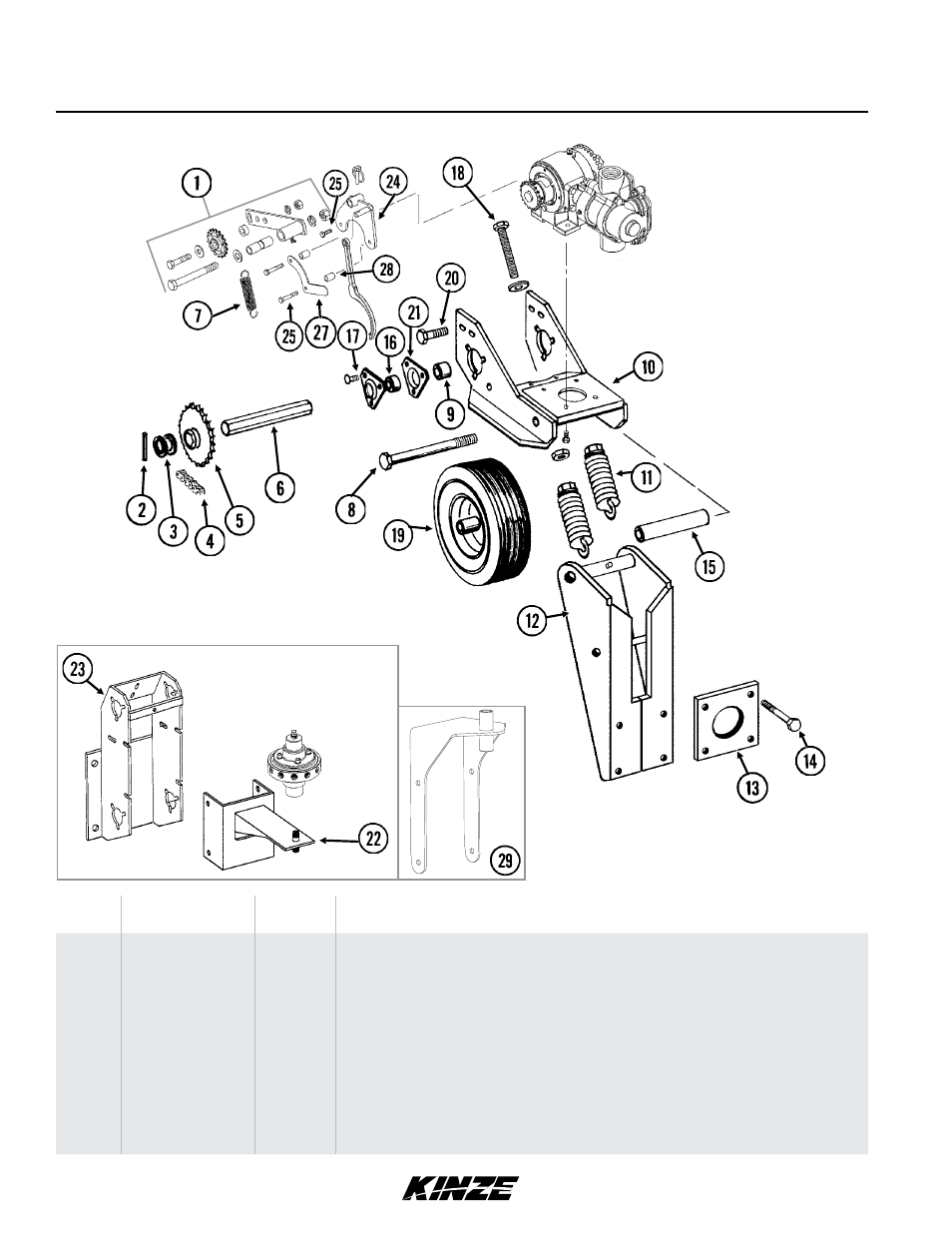

Liquid Fertilizer Piston Pump Mount/Drive
(SFP77/SFP23g)
John Blue
Model NGP-6055
Piston Pump Shown
John Blue
Model FD-1200
Flow Divider Shown
ITEM PART NO . QTY .
(Per Assy .)
DESCRIPTION
1 GA12597
GA7154
GD7889
G10581
G11389
G10228
G10102
G10011
G11391
G10230
G10104
GD10254
G10779 1
-
-
-
-
-
-
-
-
-
-
-
-
Idler W/Sprocket, Bushing, Spacer And Hardware
Sprocket W/Bearing, 18 Tooth
Bushing, 1" O .D . x 9⁄16" I .D . x 7⁄16" Long
Hex Head Cap Screw, ½"-13 x 2¼"
Flat Washer, ½" SAE
Lock Washer, ½"
Hex Nut, ½"-13
Hex Head Cap Screw, ⅝"-11 x 5½"
Flat Washer, ⅝" SAE
Lock Washer, ⅝"
Hex Nut, ⅝"-11
Spacer, 2¾"
Grease Fitting, 90°, ¼"-28
