Kinze 3140 Stack Fold Planter Rev. 5/14 - Manual (Page 92)

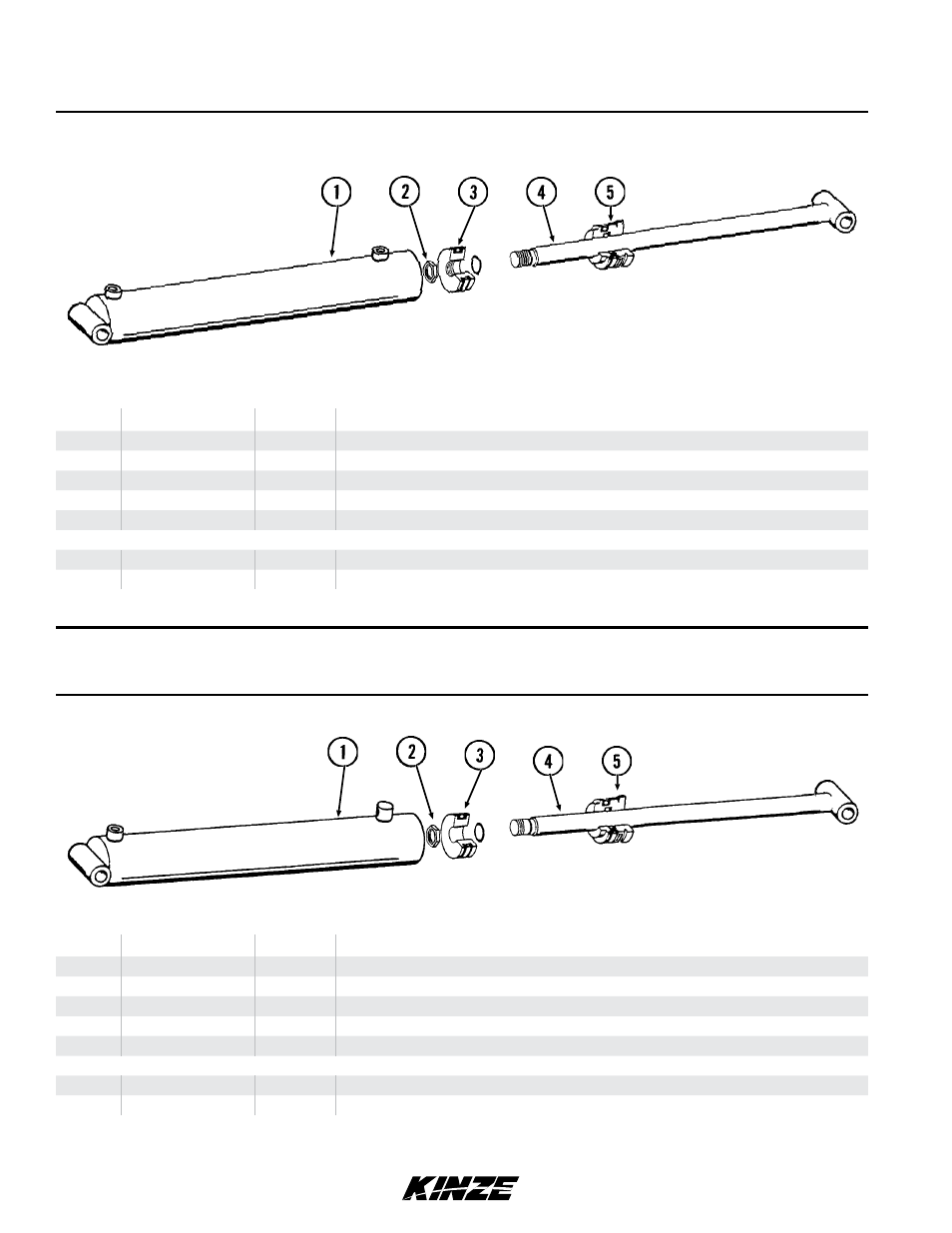

Wing Fold Cylinder, 12 Row 30"
ITEM PART NO . QTY . DESCRIPTION
1 A9059 1 Barrel (Non-Stock Item)
2 GD27237 1 Nylon Lock Nut, 1¼"-12, Grade 8
3 GD12660 1 Piston
4 GA9057 1 Rod Assembly
5 GD12659 1 Gland
A GA9060 - Cylinder Complete, 4" x 20" (Part Number Stamped On Barrel)
B GR1554 - Seal Kit, Includes: (2) O-Rings, (1) BU Ring, (1) U-Cup, (1) Wiper, (1) T-Seal
Wing Fold Cylinder, 12 Row 36"/38"/40" and 16 Row 30"
(CYL16b)
ITEM PART NO . QTY . DESCRIPTION
1 A9535 1 Barrel (Non-Stock Item)
2 GD27235 1 Nylon Lock Nut, 1"-14, Grade 8
3 GD12691 1 Piston
4 GA9033 1 Rod Assembly
5 GD12548 1 Gland
A GA9036 - Cylinder Complete, 3½" x 20" (Part Number Stamped On Barrel)
B GR1553 - Seal Kit, Includes: (2) O-Rings, (1) BU Ring, (1) U-Cup, (1) Wiper, (1) T-Seal
(CYL16a)
3⁄4
"-16 O-Ring Ports
3⁄4
"-16 O-Ring Ports
TM
Model 3140 M0245-02
P89 Rev . 5/14
