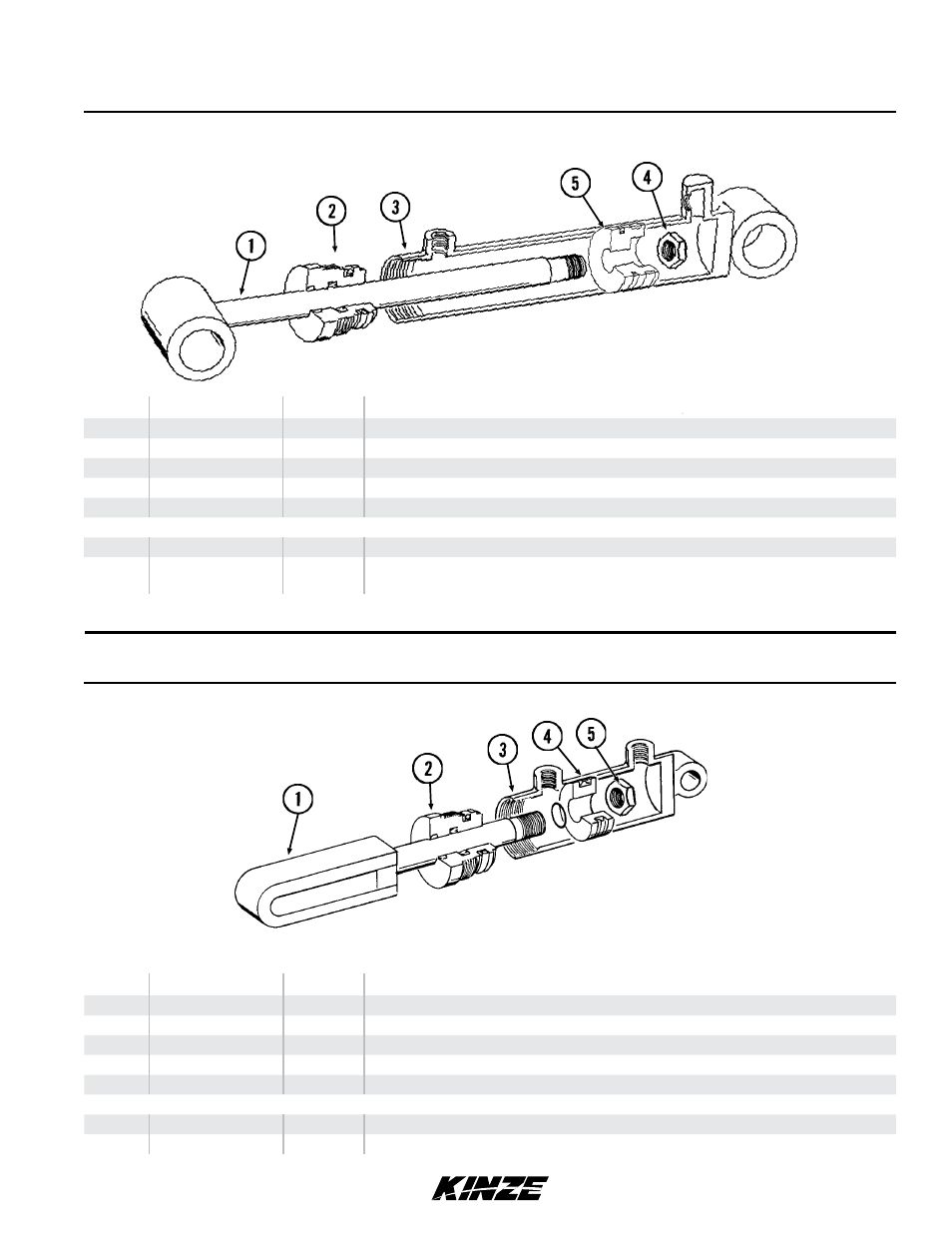

Row marker (cushion) cylinder, Wing down flex cylinder, 3⁄4 "-16 o-ring ports – Kinze 3140 Stack Fold Planter Rev. 5/14 User Manual
Page 93
ITEM
PART NO .
QTY .
DESCRIPTION
1
GA8871
1
Rod Assembly
2
GD10207
1
Gland
3
A7524
1
Barrel
(Non-Stock Item)
4
GD27234
1
Nylon Lock Nut, ⅞"-14, Grade 8
5
GD11983
1
Piston
A
GA8895
-
Cylinder Complete, 2½" x 201⁄16" (Part Number Stamped On Barrel)
B
GR1521
-
Seal Kit, Includes: (1) T-Seal, (2) O-Rings, (1) BU Ring, (1) U-Cup, (1) Wiper, (1)
Cast Iron Ring
Row Marker (Cushion) Cylinder
(CYL32f)
3⁄4
"-16 O-Ring Port
7⁄16
"-20 O-Ring Port
ITEM
PART NO .
QTY .
DESCRIPTION
1
GA9052
1
Rod Assembly
2
GD12659
1
Gland
3
A9054
1
Barrel
(Non-Stock Item)
4
GD12660
1
Piston
5
GD27237
1
Nylon Lock Nut, 1¼"-12, Grade 8
A
GA9055
-
Cylinder Complete, 4" x 3½" (Part Number Stamped On Barrel)
B
GR1554
-
Seal Kit, Includes: (2) O-Rings, (1) BU Ring, (1) U-Cup, (1) Wiper, (1) T-Seal
Wing Down Flex Cylinder
(CYL31b)
3⁄4
"-16 O-Ring Ports
