Edgevac system, Rev . 5/13 – Kinze 3140 Stack Fold Planter Rev. 5/14 User Manual
Page 46
TM
Model 3140
M0245-02
P43
Rev . 5/13

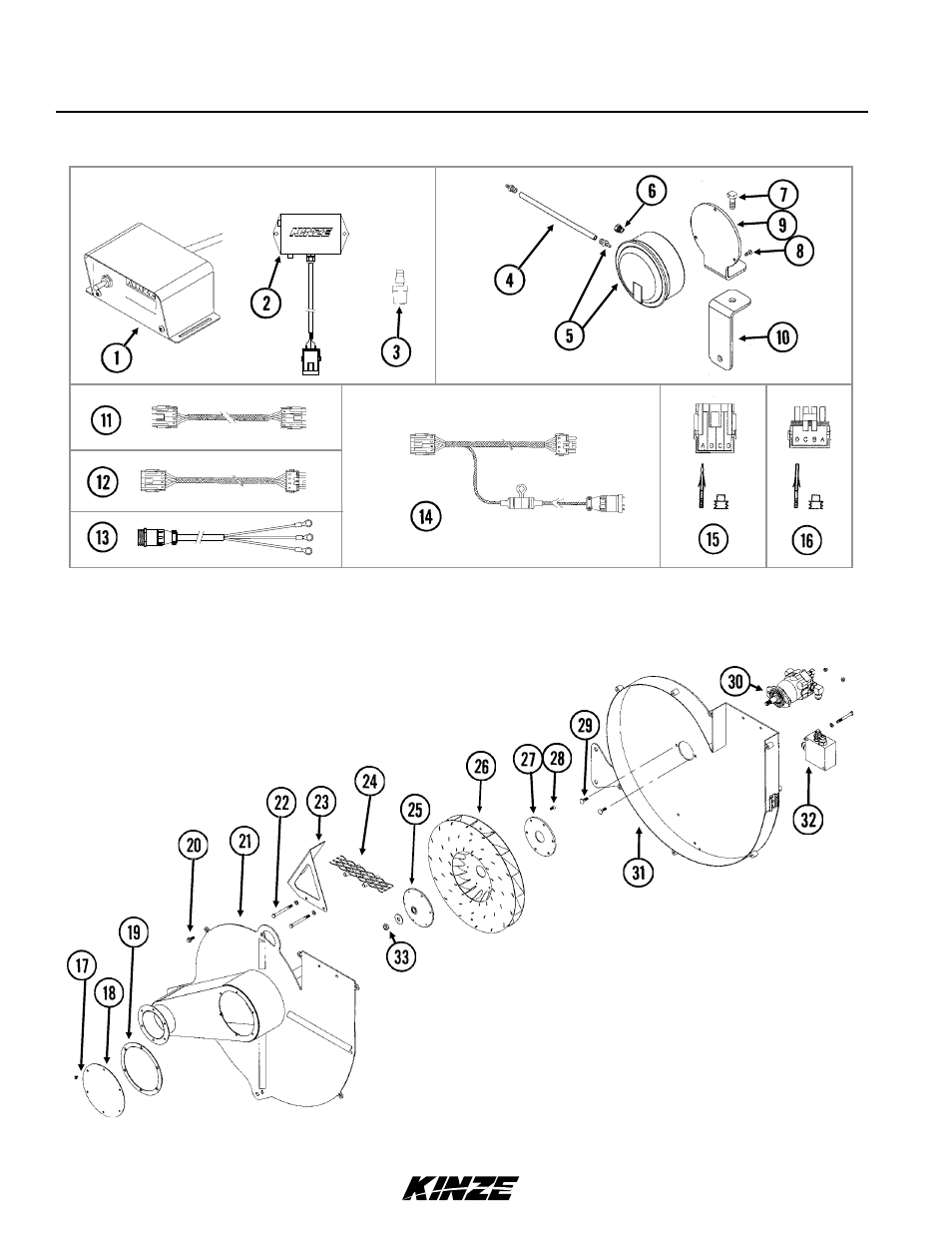

Digital Vacuum Gauge, Analog Vacuum Gauge and
Vacuum Fan Assembly
(A11154/A11156/GR1736/A10765/A11158/A11699/A7856/A11155/A8329/METR68a)
NOTE: Torque
specifications
in Maintenance
Section .
Digital Vacuum
Gauge
Sending Unit
Analog Vacuum Gauge
B
A
C
Low Pressure Sensor (0-40 in H
2
O)
P/N: A14847
Vacuum
Pressure
1
3
2
