7 Setup program
88
2012-12-31/00561073 [SCR power switch TYA202]
7.4 Program start

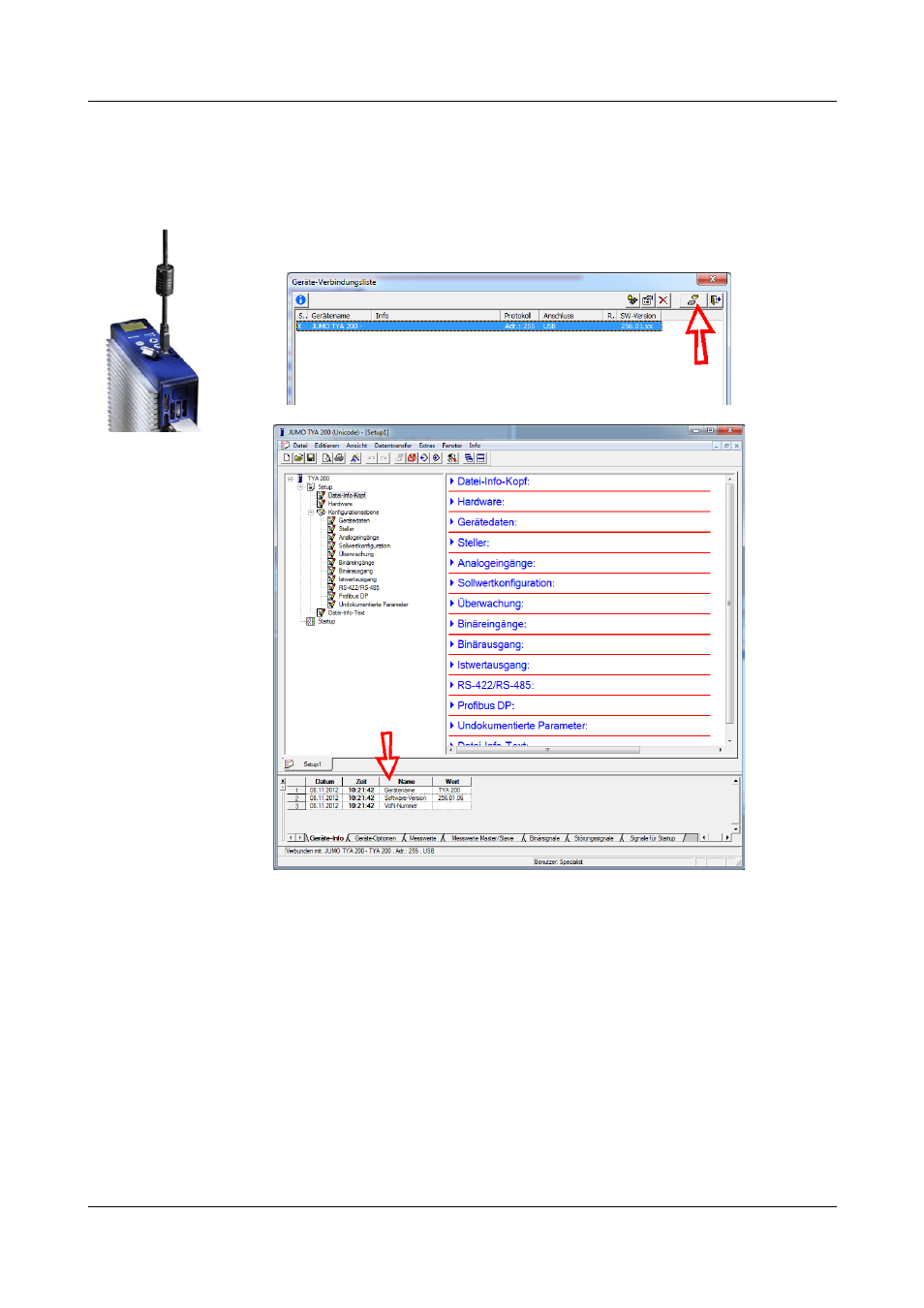

h Start the setup program via the Windows® start menu
h Insert the supplied USB cable in the socket of the power controller and in
one of the PC's sockets
h Click Connect in the menu bar
Diagnosis
The diagnosis window appears at the bottom of the screen and shows the de-
vice info and the current measured data. The connection has thus been estab-
lished.
H
The power controller supplies no power while setup data is being transferred
"to the device". The device performs a restart after the transmission.
