4 wall mounting with screws (ex works), Wall mounting with screws (ex works) – JUMO 709062 TYA 202 - Three-Phase Power Controller Operating Manual User Manual
Page 21
2012-12-31/00561073 [SCR power switch TYA202]
19
2 Installation

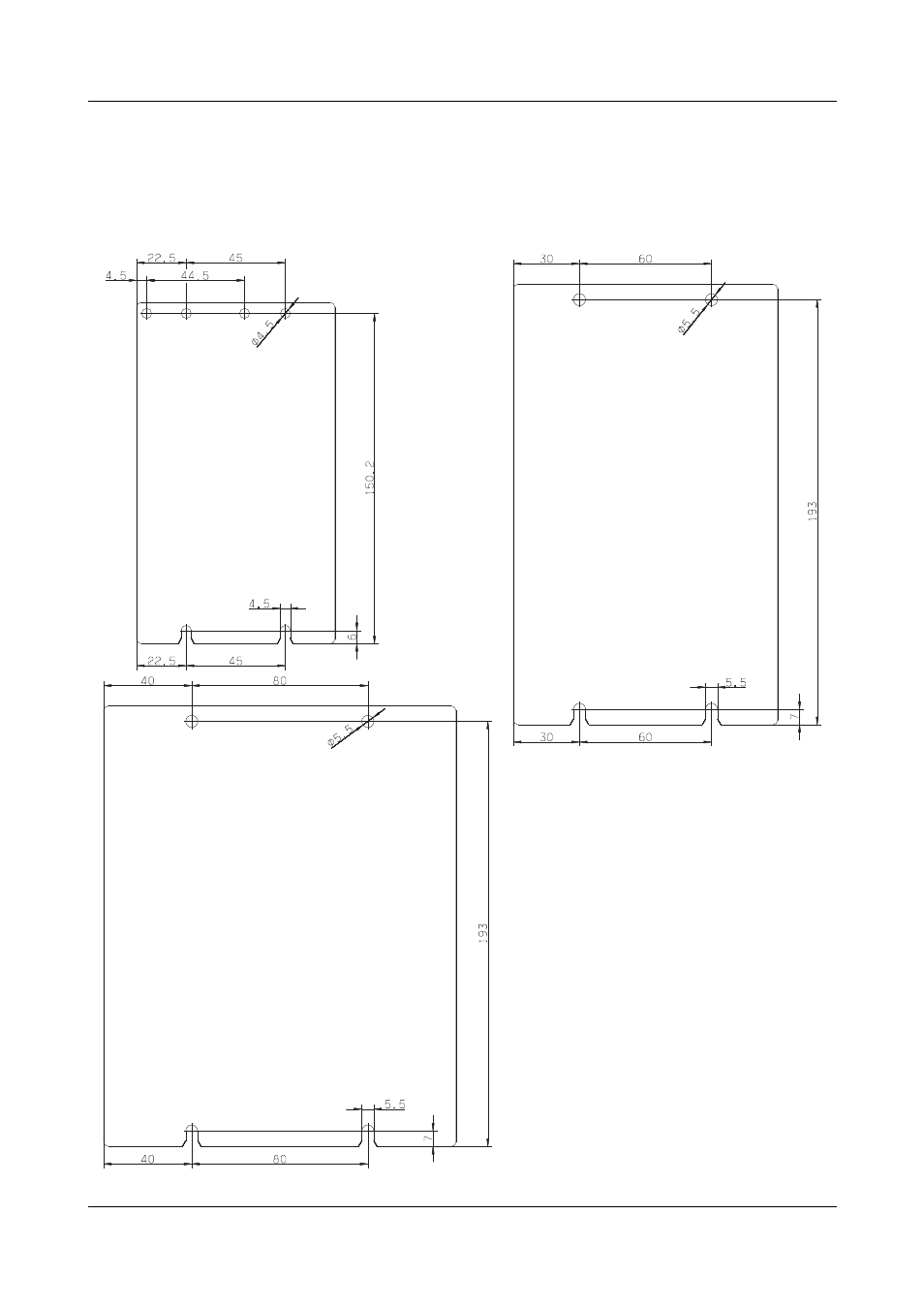

2.1.4 Wall mounting with screws (ex works)
Power controllers with a load current between 20 and 50 A are affixed to a fire-
proof control cabinet wall with 4 screws. The left-hand hole is more easily ac-
cessible in the upper section. Power controllers with a load current between
100 and 250 A are affixed with 6 screws.
TYA202
20A
TYA202 32A
TYA202 50A
