2 Installation

28

2012-12-31/00561073 [SCR power switch TYA202]

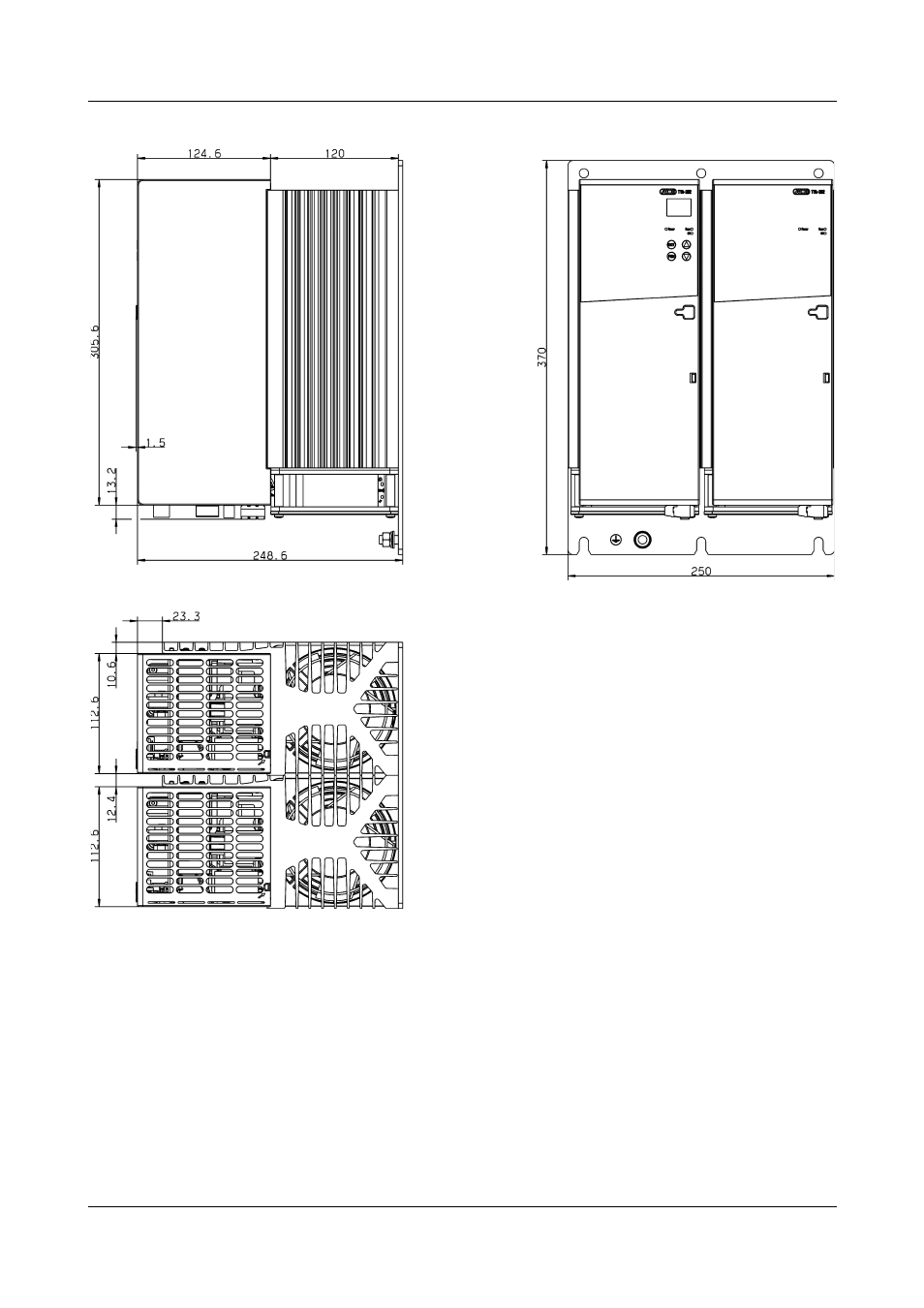

2.2.6 Type 709062/X-0X-250-XXX-XXX-XX-25X

2.2.7 Clearances (all types)

h Allow a clearance of 10 cm from the floor.
h Allow a clearance of 15 cm from the ceiling.
h When fitted next to each other, no spacing between the units is required.
