5 Configuration
62 2012-12-31/00561073 [SCR power switch TYA202]
5.1.7 Binary output
This parameter specifies which control direction the binary output should have. It is
controlled by the multi-input interference signal.
v Chapter 8.1 "Binary signal for collective fault"
h
Switch to the configuration level
r
Binary input using the key

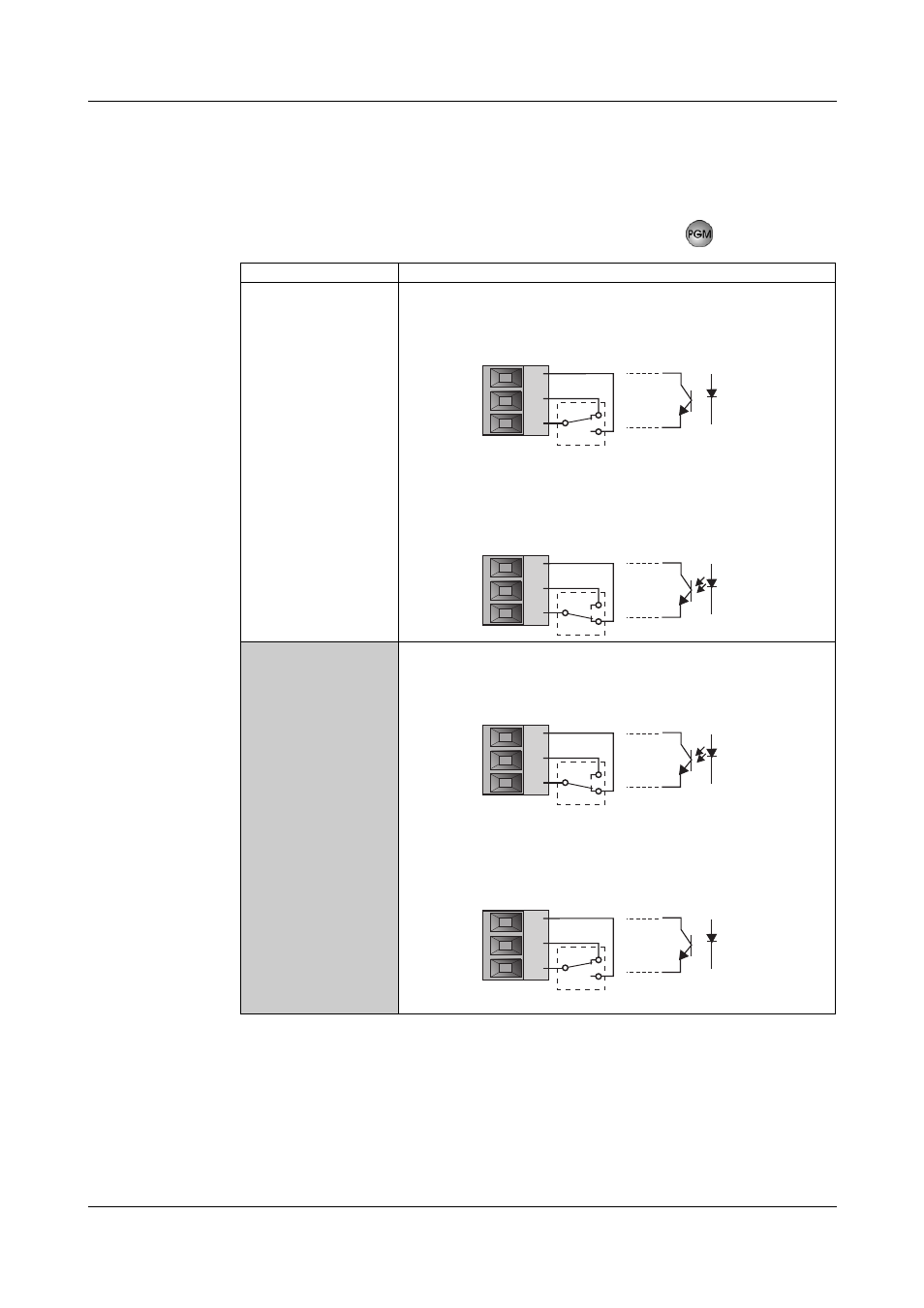

Value / settings Description
Control direction,
binary output N/O contact No fault message present:
14 and 15 pole and N/C contact closed or
13 and 14 optocoupler collector-emitter loop high-impedance
Fault message present:
13 and 15 pole and N/O contact closed or
13 and 15 optocoupler collector-emitter loop low-impedance
N/C contact No fault message present:
13 and 15 pole and N/O contact closed or
13 and 15 optocoupler collector-emitter loop low-impedance
Fault message present:
14 and 15 pole and N/C contact closed or
13 and 14 optocoupler collector-emitter loop high-impedance
k
/ bold = factory setting
13
14
15 E
S
C
Ö
P
Optocoupler Relay
13
14
15 E
S
Optocoupler Relay
C
Ö
P
13
14
15 E
S
Optocoupler Relay
C
Ö
P
13
14
15 E
S
C
Ö
P
Optocoupler Relay
