6 Special device functions
70 2012-12-31/00561073 [SCR power switch TYA202]
Teach In
"Automatically
cyclically" "Automatically cyclically" means that the Teach-In values are temporarily
saved again at intervals of 1 minute. This setting is particularly suitable for SIC
heating elements as in this case the resistance in the load point changes with
time due to aging.
When the power controller is disconnected from the supply voltage, the
Teach-In values are deleted again. After another power ON, the power control-
ler resumes automatic Teach-In detection.
6.2 Manual mode
In this case, the setpoint value can be manually preset in % without the need
for external wiring via the analog input.
6.2.1 Default setpoint value in manual mode
Starting Manual mode, as set ex works, can be accessed without entering a code.
h Press the
key once (selection menu)
h Press the
key again (manual mode)
h Use the
or key to increase or decrease the setpoint value
The changes become effective immediately at the load output and are indicat-
ed on the display.
6.2.2 Configuring the Teach-In (prerequisite for Teach-In in manual mode)
The Teach-In function records the current/voltage ratio of a load in the OK sta-
tus.
This function is not configured ex works.
v Configuration level See "Teach In type load monitoring" on page 59.
Configuring
"manual
"Teach-In The power controller is in the "Measured value overview" level.
h Press the
key
h Config. level r
Monitoring
r
Load monitoring
r
Undercurrent or
overcurrent
r
Teach-In type load monit.
r
Set to "manual"
h Press the
key
II
h Press the
key twice
The device performs a reset.
H
The setpoint value for manual mode is not saved in the event of a pow-
er failure!

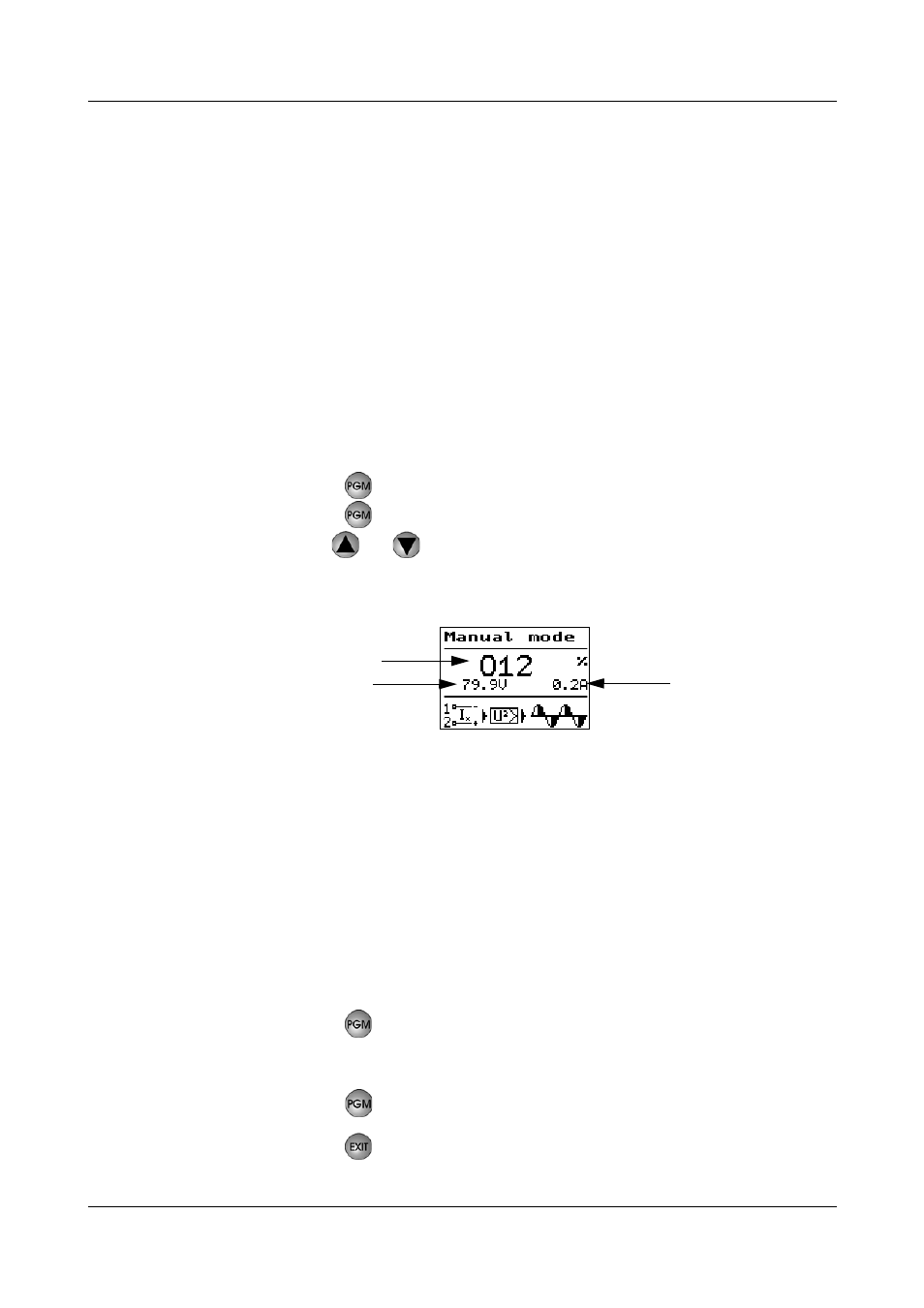

Load voltage Load current
Setpoint value
