3 Electrical connection
3.2.4 Type 709062/X-0X-150-XXX-XXX-XX-25X
Type 709062/X-0X-200-XXX-XXX-XX-25X

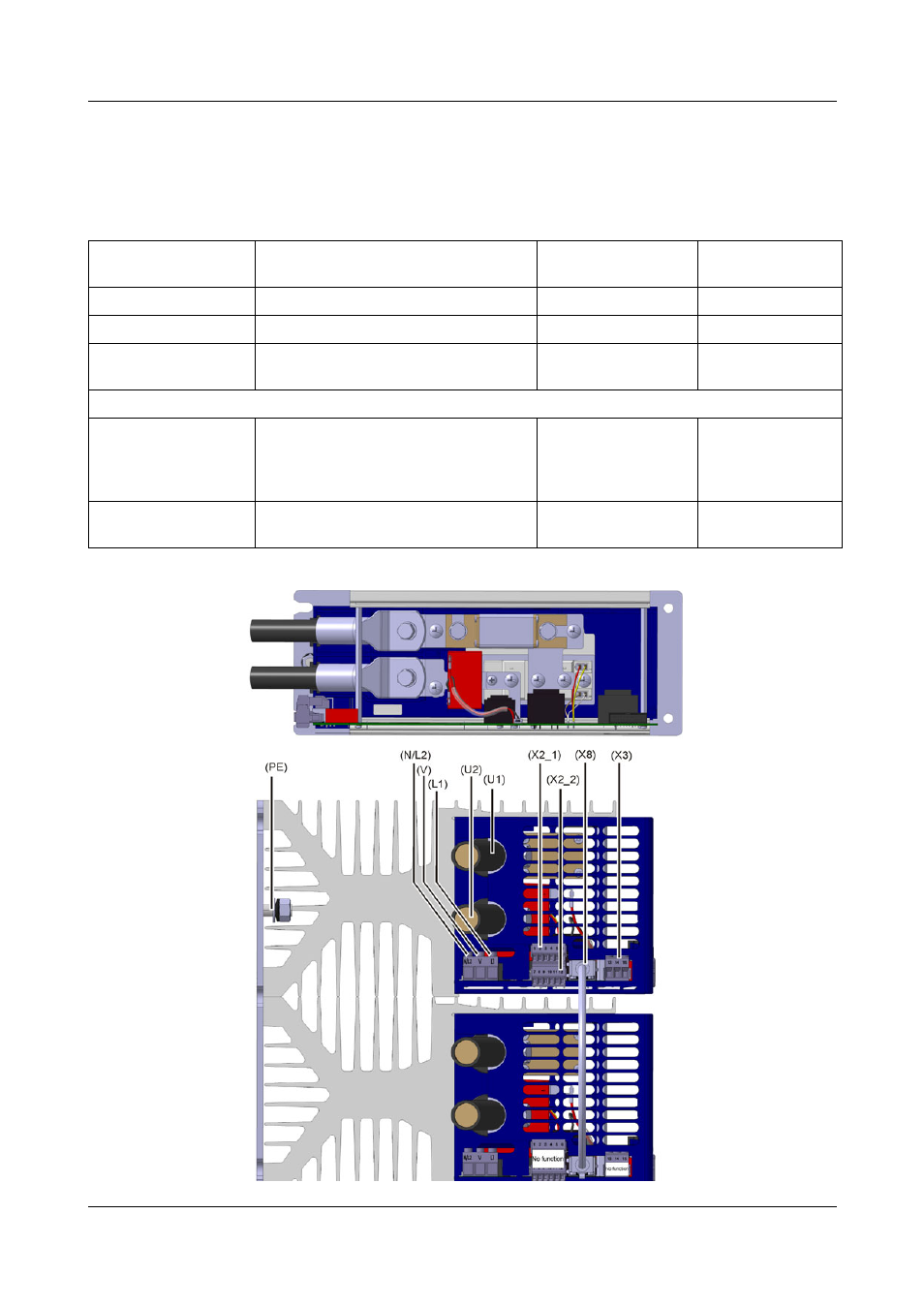

Devices with a load current of 150 A are equipped with plug-in screw terminals
in the control section and cable lugs in the power section.
Terminal Version Conductor cross-
section Maximum
tightening torque
X2_1 and X2_2 Slotted screws, blade width 2 mm 0.2 to 1.5 mm
2
0.25 Nm
X3 Slotted screws, blade width 3 mm 0.5 to 2.5 mm
2
0.5 Nm
U2, U1 M8 hexagon screws, width across flats
13 mm 95 to 150 mm
2
12 Nm
For applications according to UL, only 75 °C copper conductors may be used!
N/L2, V, L1 Slotted screws,
blade width 3 mm 0.5 to 4 mm
2
or
(0.5 to 2.5 mm
2
with
end sleeve)
(for UL AWG 20-12)
0.5 Nm
Ground terminal PE M8 setscrew with hexagon
nut, width across flats 13 mm Cable lug
hole: 8 mm 12 Nm
