Stations, N o t e – ETC SmartPack v2.1.0 User Manual
Page 25
2
SmartLink™ Enabled
21
Stations

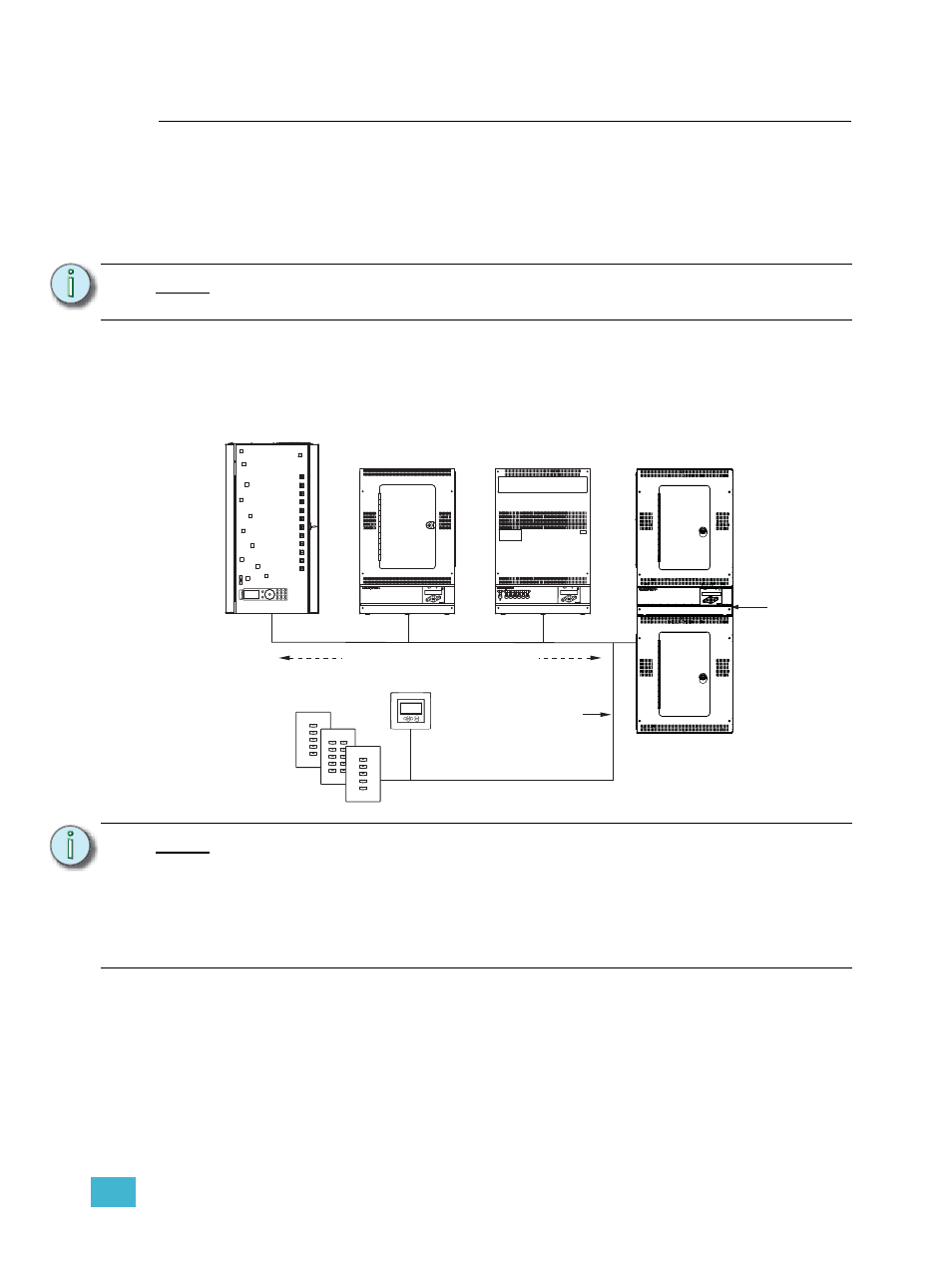

Two button station types are available for use on the SmartLink network, a 5 button and a
10 button station, providing easy remote access to the 32 built-in presets and sequencer
found in the SmartPack. The SmartLink Timeclock also provides access to all your presets
and adds real and astronomical time functions to the SmartLink control system from a
single location.
A LinkPower supply must be installed into one SmartPack Wall Mount and is required to
operate up to four wall stations per SmartLink system. The LinkPower supply is available
factory installed or as a kit (S-LPS) for field installation. Reference
for installation instructions.
N o t e :
Wall station use with the SmartPack Portable dimmer pack requires additional
hardware that is separate from the pack itself. Contact ETC for assistance.
N o t e :
A SmartLink LinkPower supply is limited to four SmartLink stations. Alternatively,
you may have up to 16 SmartLink stations when using a SmartLink Station Power
Module (S-SPM). You may have up to four SmartLink host products in a SmartLink
system.
One SmartLink host product (SmartPack, SmartSwitch, Unison DRd with
SmartLink or Sensor + with SmartLink) in the system must have a LinkPower
Supply or Station Power Module installed for wall station power.
Preset 5
Preset 1
Preset 2
Preset 4
Preset 3
Preset 10
Preset 6
Preset 7
Preset 9
Preset 8
Preset 5
Preset 1
Preset 2
Preset 4
Preset 3
Preset 5
Preset 1
Preset 2
Preset 4
Preset 3
Belden 8471
plus (1) #14 ground
Presets, Sequences, Sequence Timing
SmartLink ATC
Back
Up
Enter
Recall
Preset
Hold
Down
SmartLink
LinkPower
Supply
SmartPack
SmartSwitch
DRd 12 with SmartLink
SmartSwitch 48
DMX
