AirLive AirMax5 - Manual (Page 24)

3. Configuring the AirMax5
17 AirLive AirMax5 User’s Manual

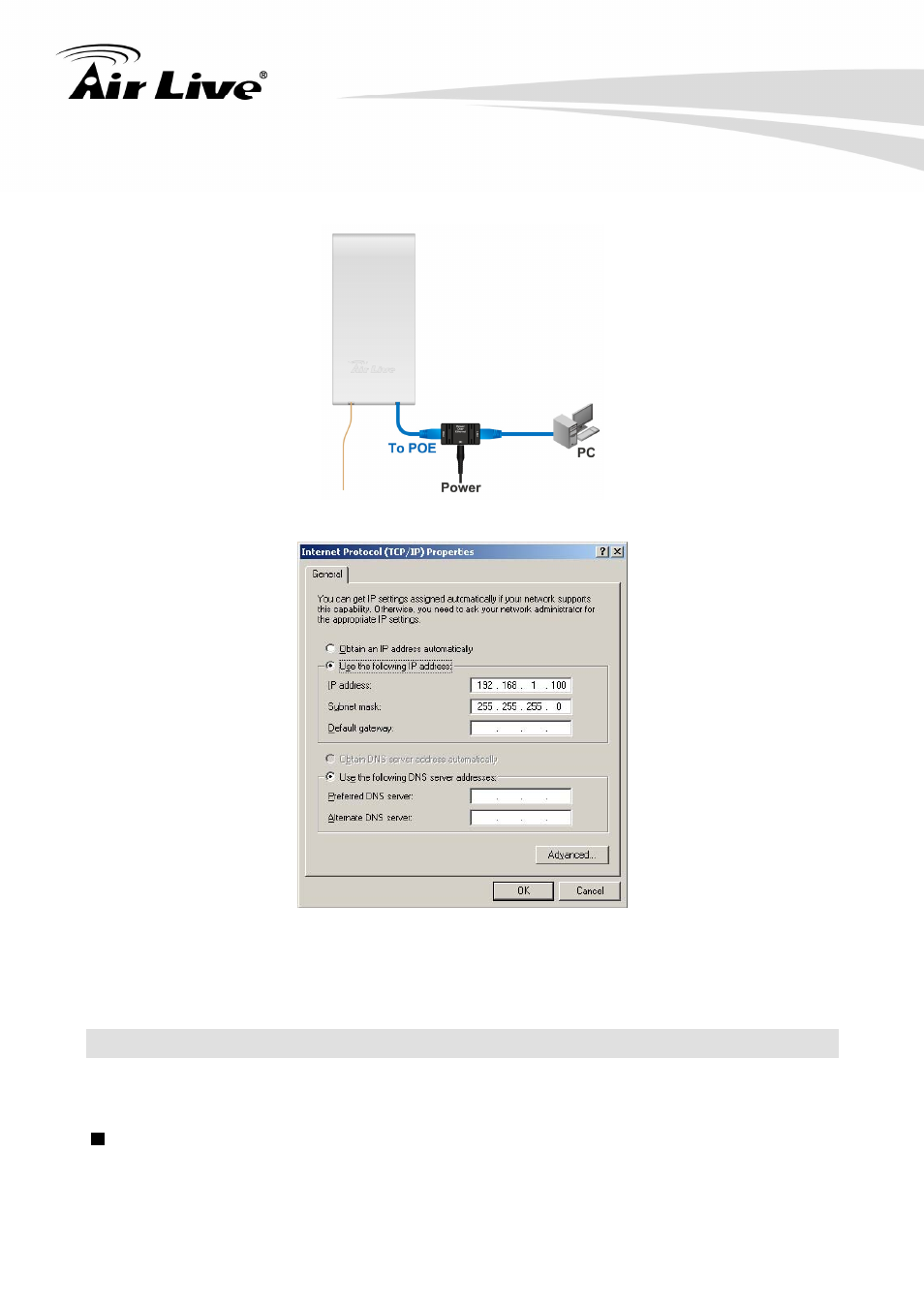

To prepare your PC for management with the AirMax5, please do the following:
1. Connect your PC directly to the LAN port on the DC Injector of AirMax5
2. Set your PC’s IP address manually to 192.168.1.100 (or other address in the same
subnet)
You are ready now to configure the AirMax5 using your PC.
3.3 Management Interface
The AirMax can be configured using one the management interfaces below:
Web Management (HTTP): You can manage your AirMax5 by simply typing its IP
address in the web browser. Most functions of AirMax5 can be accessed by web
management interface. We recommend using this interface for initial configurations.
To begin, simply enter AirMax5’s IP address (default is 192.168.1.1) on the web
