7. Antenna Alignment
AirLive AirMax5 User’s Manual 98
It is important to align your antenna correctly with the remote device to get the best signal
and performance. The AirMax5 is equipped with dual diversity antenna. In this chapter,
we will first explain the design and function of the built-in antenna. Then we will talk about
2 different ways for antenna alignment:
„
Using the LED Indicators: The AirMax5 has 2 LED indicators to show the current
signal strength of the connection. By having the 2 LED displayed in 4 different states,
you can easily know the signal strength of your antenna without the need to use a PC.
„ Using Signal Survey tool: The AirMax5 has a special Signal Survey tool inside the
Site Survey function. It will display a remote AP/Bridge’s signal strength level while
you adjust the antenna angle. If you can have a notebook attached while doing
antenna alignment, this method can tell you the precise RSSI level.

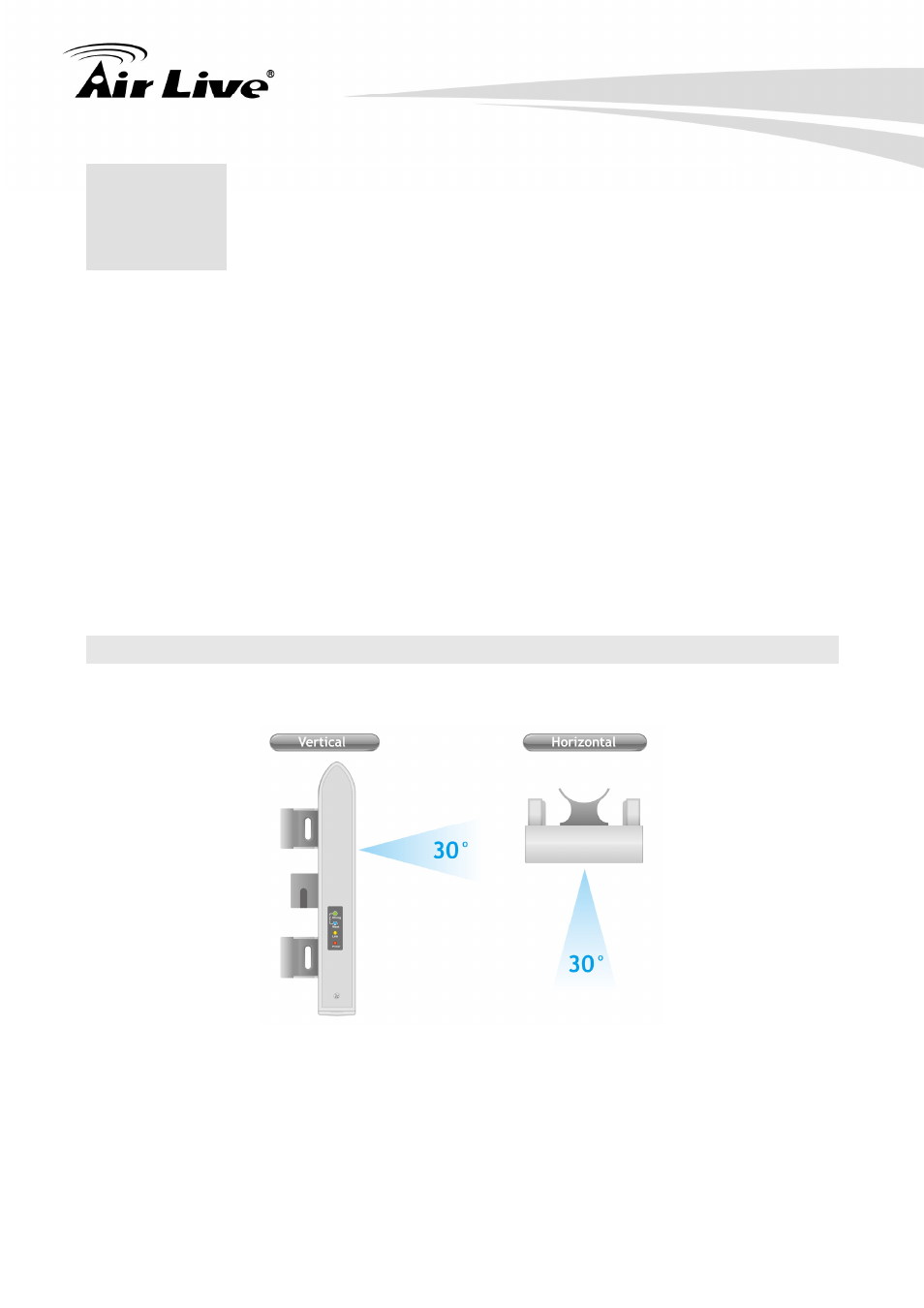

7.1 About AirMax5’s Antenna
The AirMax’s built-in antenna has the following characteristics:
„ Gain: 13dBi
„ Type: Patch Antenna
„ Polarization: Vertical, Horizontal, or Diversity.
„ H-Plane Coverage Angle: 30 degree forward
„ E-Plane Coverage Angle: 30 degree forward
„ External Antenna Connector: R-SMA
7
7 .
Antenna Alignment
