8. Application Example: Bridge Network
AirLive AirMax5 User’s Manual
112

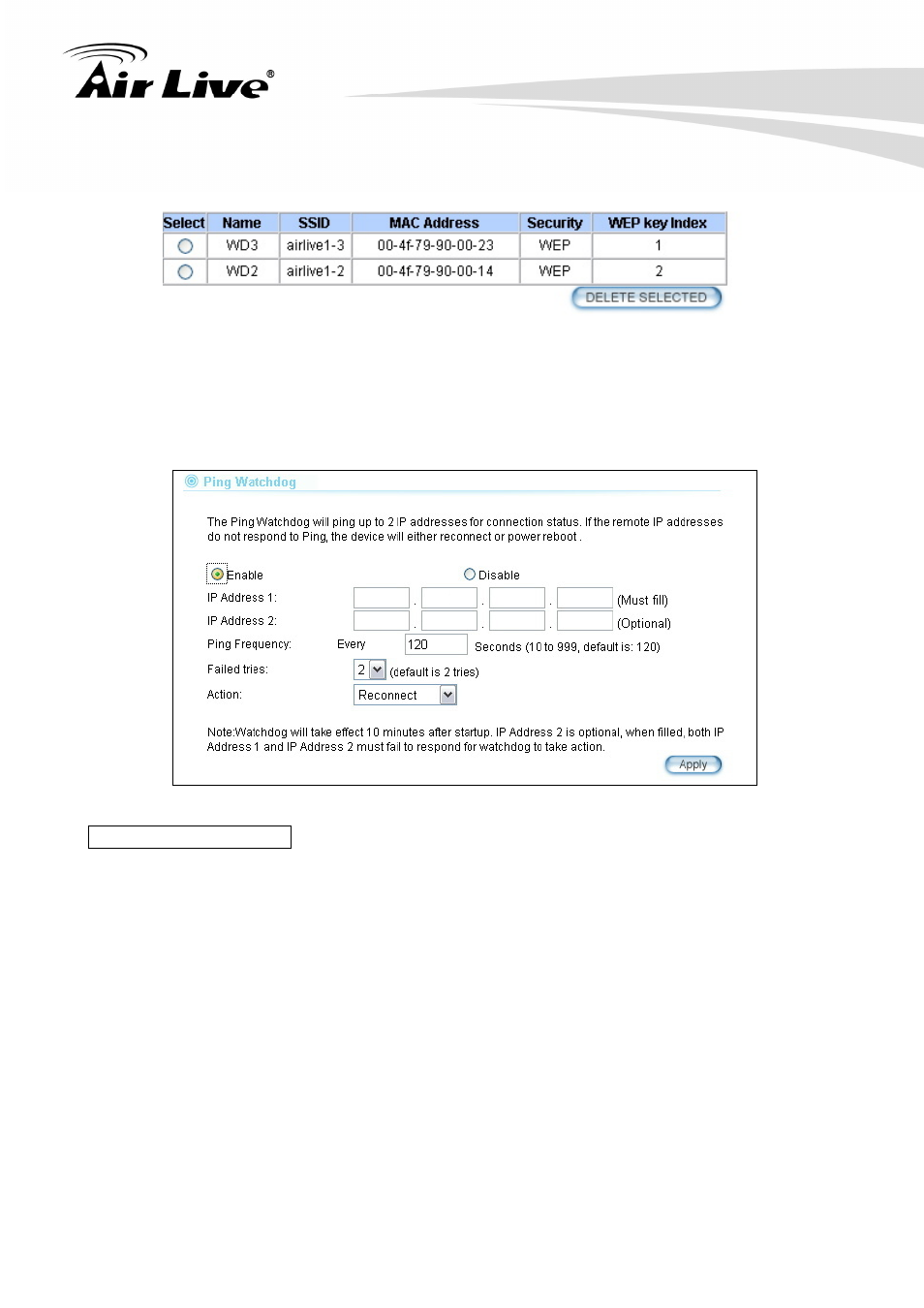

The following table will be displayed to show the added WDS links:
4. Setup the PING watchdog. Ping watchdog will reboot or reconnect the AirMax5
when the remote device does not respond to PING command. It helps maintain the
WDS Link. Please setup the PING watchdog according to graphic below:
.
192 168 1 2
192 168 1 3
WDS Bridge 2 Settings
1. Enter the WEP Encryption Keys. In this example, we have 4 WEP keys with
WEP152-HEX, WEP152-ASCII, WEP128-ASCII, and WEP64-ASCII. Click on
“Apply” after entering the keys.
2. Adding the WDS Link to WDS Bridge 1
Name: WDS1
SSID: airlive1-2
MAC address: you should enter the MAC address of WDS Bridge 1:
00-4f-79-90-00-0b
Select Security Policy: Select “WEP” encryption. The AirMax5 will ask you to
select which key to use. You can select same key or different key for different
WDS link (however, both side of the same link must use the same key). In this
