1. Introduction
AirLive AIRMAX5 User’s Manual
6

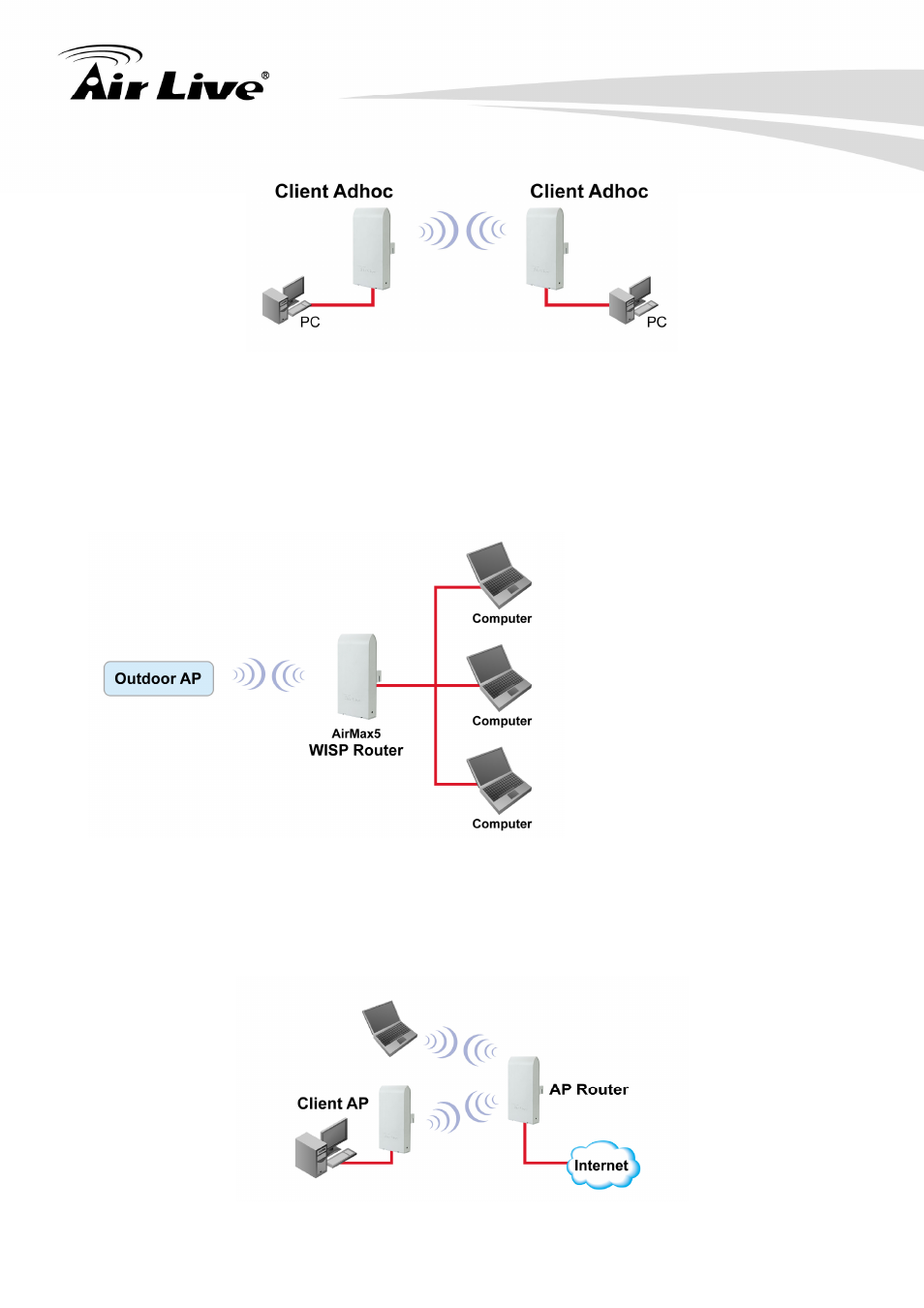

1.5.5 Client Router Mode
This mode is also known as WISP Router mode. In this mode, AIRMAX5’s radio operates
as a wireless client. It adds NAT function between the connects to the remote Access
Point as in Client Infrastructure Mode. On the LAN side, it acts like a wired router for IP
sharing function. This mode is best used for IP sharing application for WISP subscribers.
In this mode, the WAN is the wireless client side, the LAN is the wired side.
1.5.6 AP Router Mode
In AP Router Mode, the AirMax5 behaves like a wireless router. The LAN port of the
AirMax5 will become WAN port. The wireless network of AirMax5 becomes the LAN side.
Please note when this mode is used, the only way to manage the AirMax5 is through the
wireless side unless remote management is opened.
