2. Install the AirMax5
AirLive AirMax5 User’s Manual 14

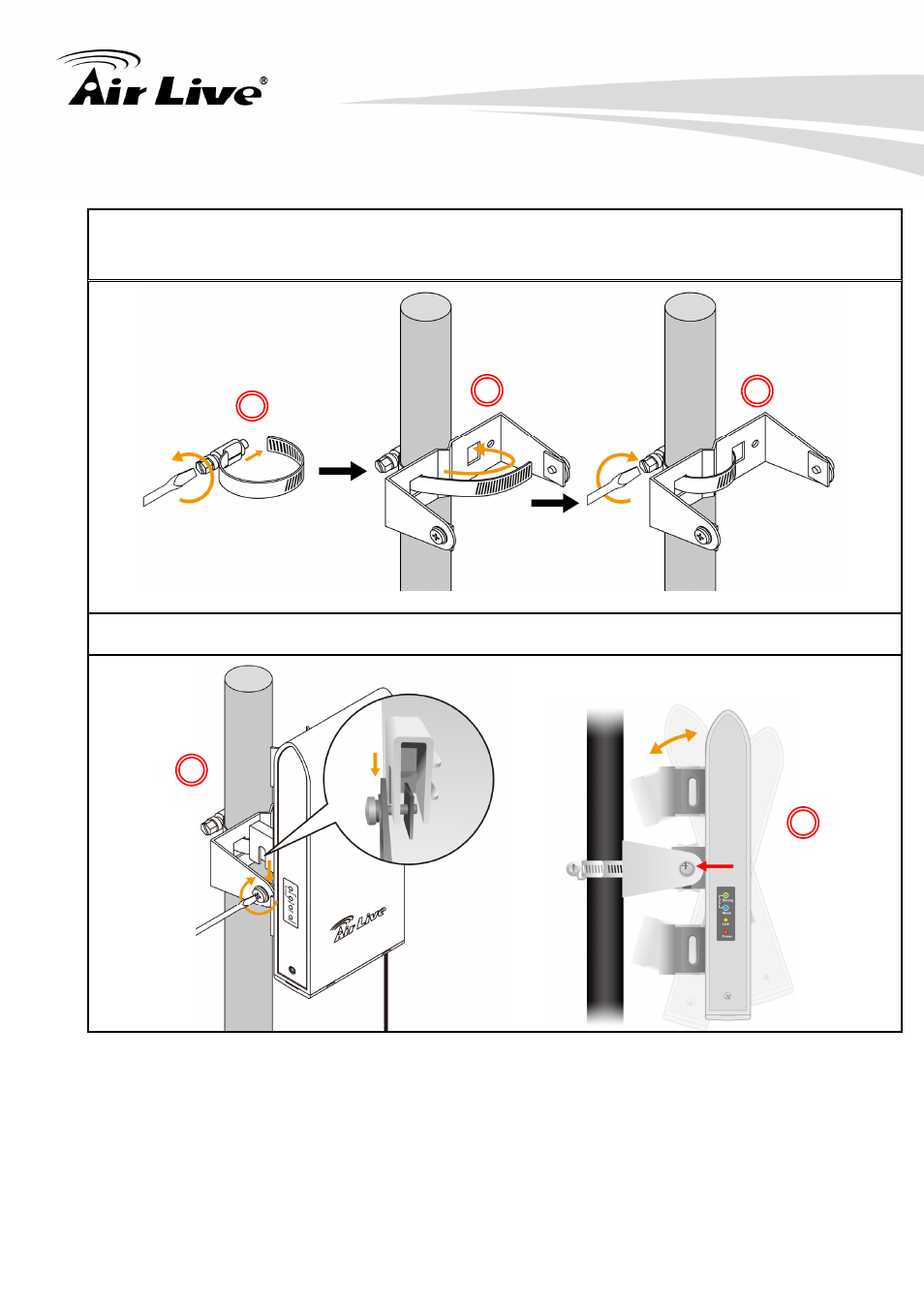

Pole Mount Installation using WMK-AIRMAX
1. Unscrew the metal ring(pipe fastener) until one end of the ring come off completely
2. Put the metal ring through the holes on the bracket and wrap it around the pole.
3. Tighten the screw on the ring until the ring is very tight around the pole.
4. Now, install the AirMax 5 into the metal bracket and tighten the screws on the bracket
5. By adjusting the bracket screws, you can adjust the tilting angle of the AirMax5
Bracket Screw
1
2 3
4
5
