7. Antenna Alignment

103

AirLive AirMax5 User’s Manual

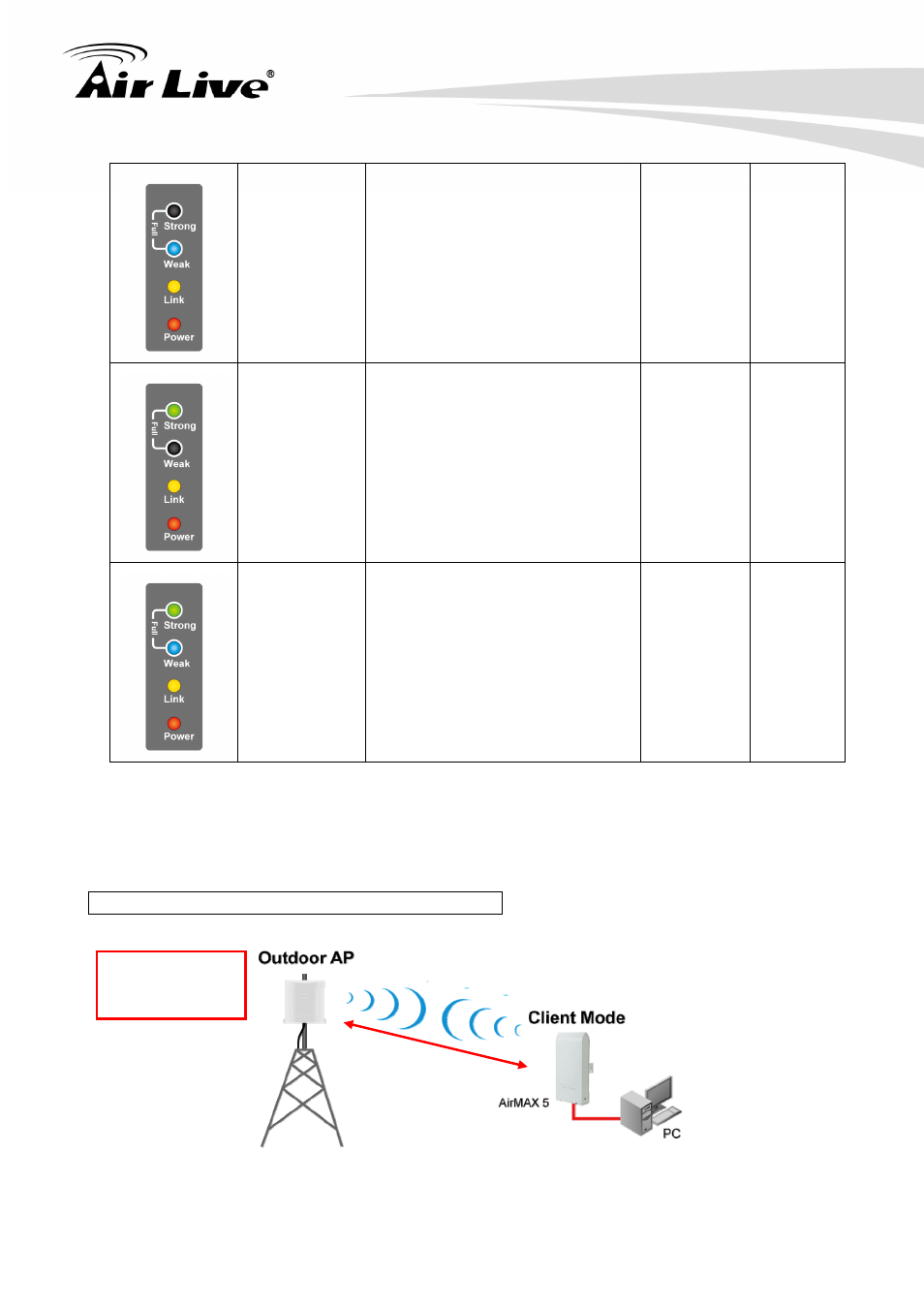

Weak Signal When signal strength is greater

or equal than the “Weak Signal
Threshold”. Only the Blue
LED is on.

-80dB -75dB

Strong Signal When signal strength is greater

or equal than the “Strong
Signal Threshold”. Only the
Green LED is on.

-60dB -55dB

Full Signal

When signal strength is greater
or equal than the “Full Signal
Threshold” (i.e. -45dB). Both
Green and Blue LEDs are on

-50dB -45dB

Antena Alignment Procedures using RSSI LED

SSID: airlive3
Encryption:
WPA-PSK

3 km
