Chapter 1
6

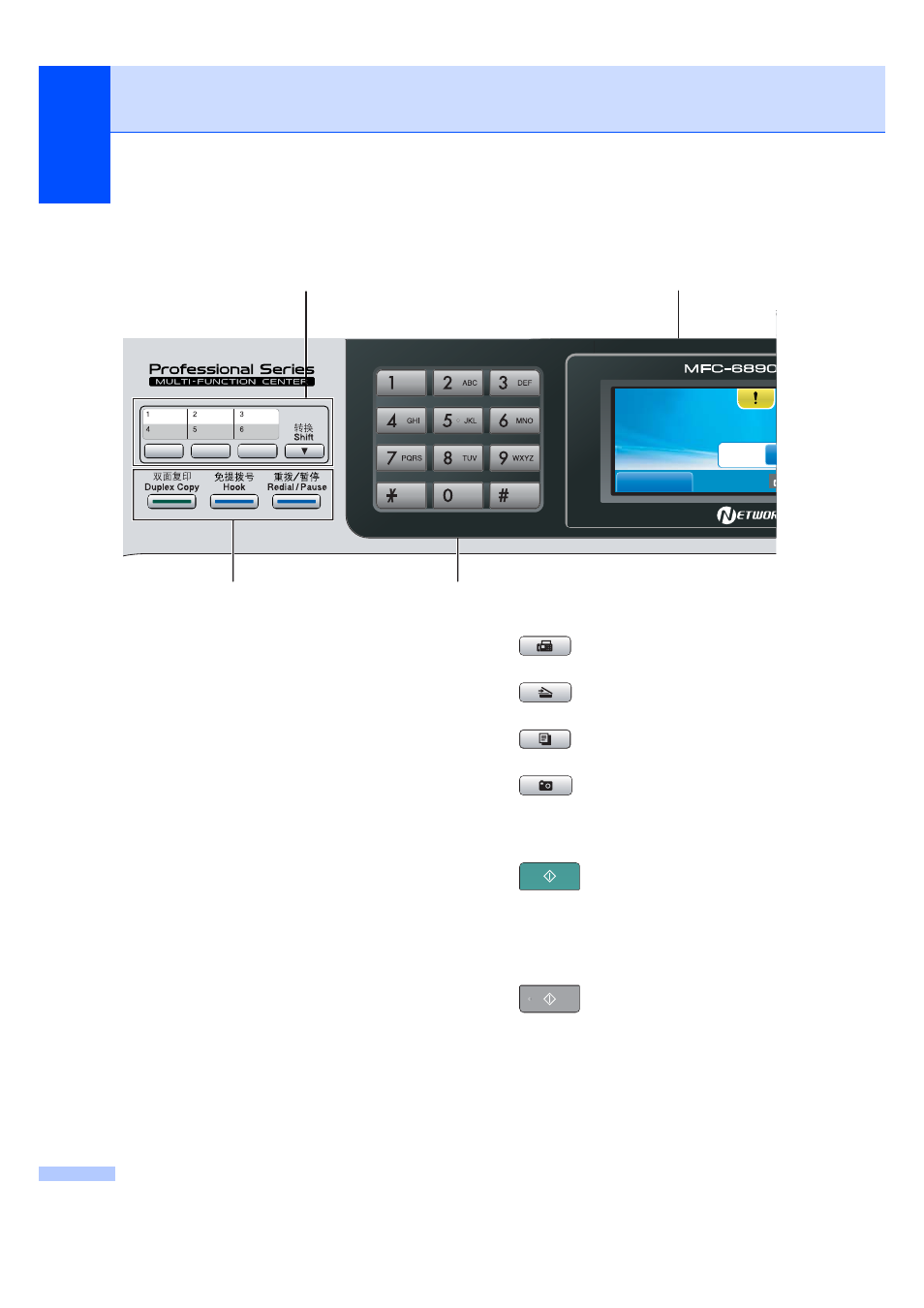

Control panel overview
1
1 Fax and telephone keys:
Duplex Copy
Press this key to copy on both sides of the
paper.
Hook
Press before dialing if you want to make
sure a fax machine will answer, and then
press Black Start or Color Start.
Also, press this key after picking up the
handset of an external telephone during the
F/T pseudo/double-ring.
Redial/Pause
Redials one of the last 30 numbers called.
It also inserts a pause when dialling.
2 Dial Pad
Use these keys to dial telephone and fax
numbers and as a keyboard for entering
information into the machine.
This function transfers to the touchscreen
during some operations.
The # key lets you temporarily switch the
dialling mode during a telephone call from
Pulse to Tone.
3 Mode keys:
Fax
Lets you access Fax mode.
Scan
Lets you access Scan mode.
Copy
Lets you access Copy mode.
Photo Capture
Lets you access PhotoCapture Center™
mode.
4 Start keys:
Color Start
Lets you start sending faxes or making
copies in full color. Also lets you start a
scanning operation (in color or mono,
depending on the scanning setting in the
ControlCenter software).
Mono Start
Lets you start sending faxes or making
copies in monochrome. Also lets you start a
scanning operation (in color or mono
depending on the scanning setting in the
ControlCenter software).
2 1
7 8
History
New Fax New Fax
01 01 Pr
Mem.
06:11 06:11
01.01.2009 27.01.2009
