SECTION 3 - CHASSIS & TURNTABLE
3-48 – JLG Lift – 3121259

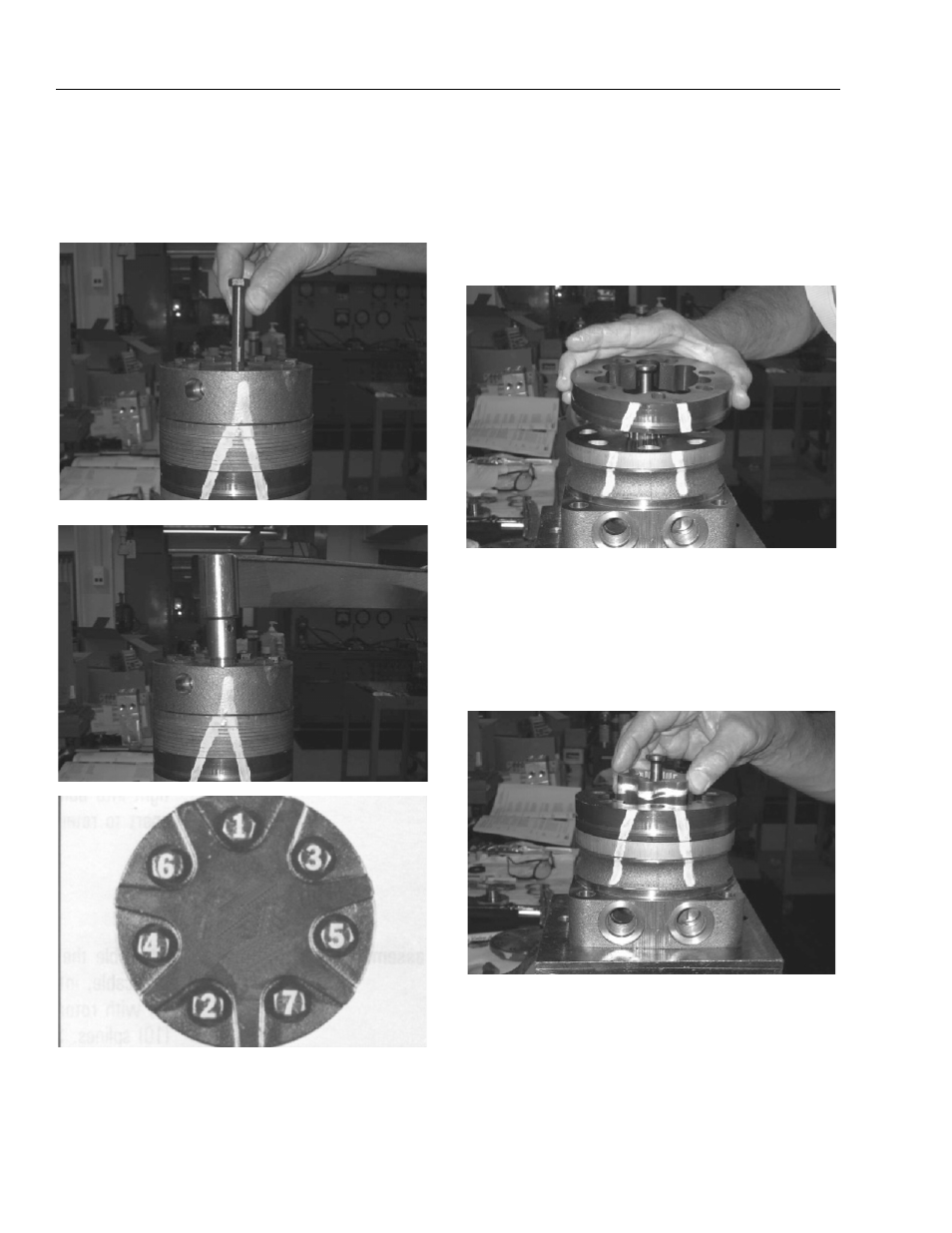

20. Assemble the bolts (1) and screw in finger tight. Remove
and replace the two alignment studs with bolts after the
other bolts are in place. Alternately and progressively
tighten the bolts to pull the end cover and other compo-
nents into place with a final torque of 25-30 ft. lbs. (34-
41 N m). One Piece Stator Construction
A disassembled rotor stator and vanes that cannot be readily
assembled by hand can be assembled by the following proce-
dures.
1. Place stator onto wear plate (9) with seal ring (4) side
down, after following assembly procedures 1 through
13. Be sure the seal ring is in place.
2. If assembly alignment studs are not being utilized, align
stator bolt holes with wear plate and housing bolt holes
and turn two bolts (1) finger tight into bolt holes
approximately 180 degrees apart to retain stator and
wear plate stationary.
3. Assemble the rotor, counterbore down if applicable, into
stator, and onto wear plate (9) with rotor splines into
mesh with drive link (10) splines.
