SECTION 3 - CHASSIS & TURNTABLE
3-64 – JLG Lift – 3121259
SEE DETAIL
K
SEE DETAIL
J
DETAIL
J
SYSTEM PRESSURE
SYSTEM TANK
LEVEL TO LEVEL CYL PORT V2
LEVEL TO LEVEL CYL PORT V1
BOOM CABLE
AC CABLE
19 PIN BOOM PLUG/
RECEPTACLE LOADING
SOCKET
NUMBER
WIRE
COLOR
WIRE
SIZE
1 SHIELD 18 GA.
2 BLACK 18 GA.
3 RED 18 GA.
4 ORANGE 18 GA.
5 BLUE 18 GA.
6 YELLOW 18 GA.
7 BROWN 18 GA.
8 PLUG N/A
9 RED/BLACK 18 GA.
10 ORANGE 12 GA.
11 BLUE/BLACK 18 GA.
12 RED 12 GA.
13 ORANGE/BLACK 18 GA.
14 PLUG N/A
15 YELLOW/BLACK 18 GA.
16 BLACK 12 GA.
17 PLUG N/A
18 BLACK/WHITE 12 GA.
19 PLUG N/A
AC CABLE
CONNECTIONS
SCREW
LABEL
WIRE
COLOR
X BROWN
Y BLUE
G GREEN/YELLOW
DETAIL
K
TORQUE THREADED STUDS TO 15 Nm (10 ft lbs)
ASSEMBLE IN THE FOLLOWING ORDER:U NUT,
CLAMP BLOCK, PUSH NUT, COVER, FLANGED NUT

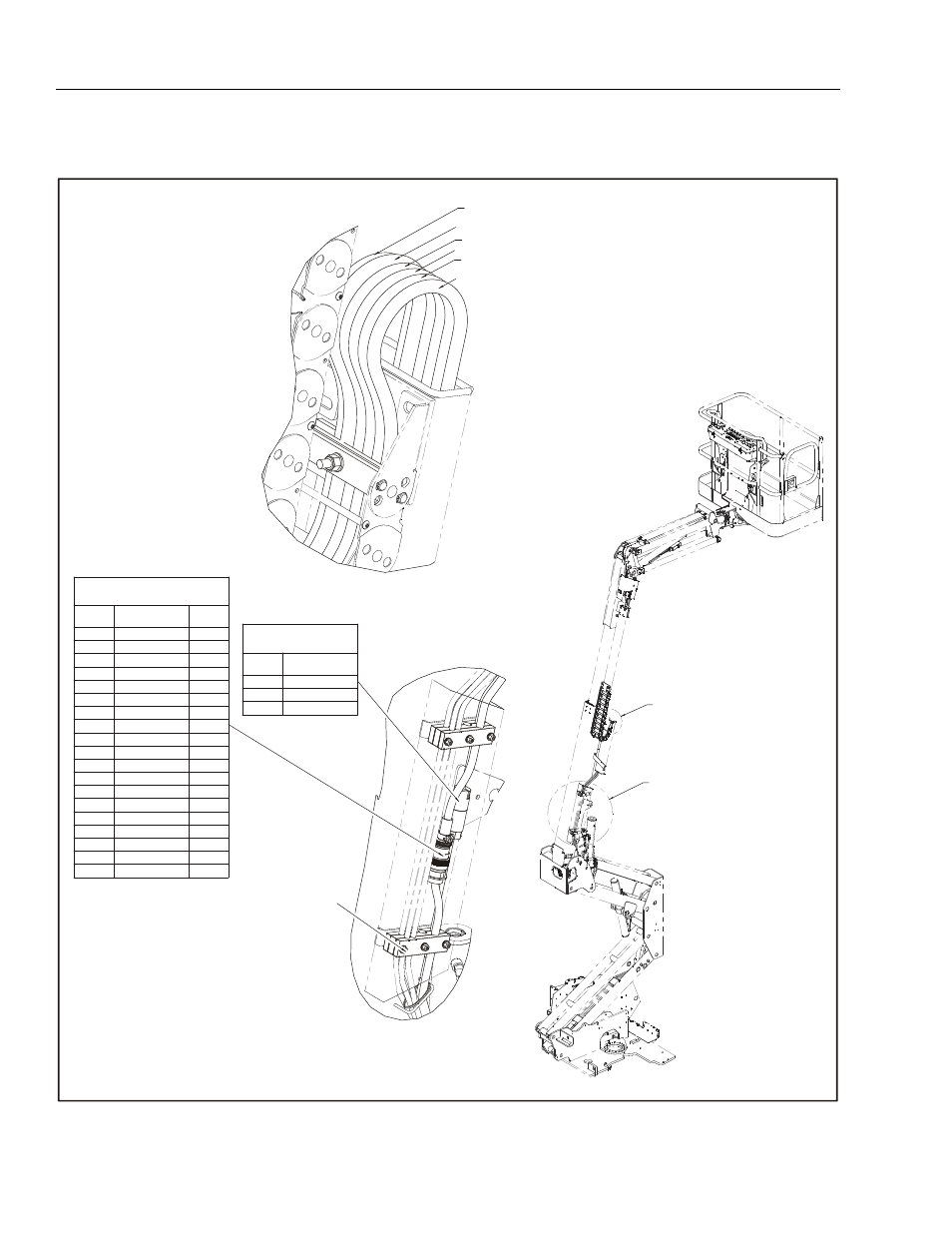

Figure 3-42. Cable Installation and Identification - Sheet 4 of 8
