SECTION 5 - HYDRAULICS

3121259

– JLG Lift –

5-33

VALVE, UPRIGHT

PORT "M2"

(VALVE, UPRIGHT)

PORT "M1"
(VALVE, UPRIGHT)

PORT "T2"

(VALVE,

UPRIGHT)

PORT "V1"
(LIFT CYL)

PLATFORM LEVEL

TELESCOPE

PORT "V2"
(LIFT CYL)

PORT "P1"

(VALVE,

UPRIGHT)

PORT "V2"

(TELE CYL)

PORT "V1"

(TELE CYL)

PORT "T1"
(VALVE,
UPRIGHT)

PORT "V2"

(VALVE, UPRIGHT)

PORT "V2"

(TELE CYL)

PORT "V1"

(VALVE, UPRIGHT)

PORT "V1"

(TELE CYL)

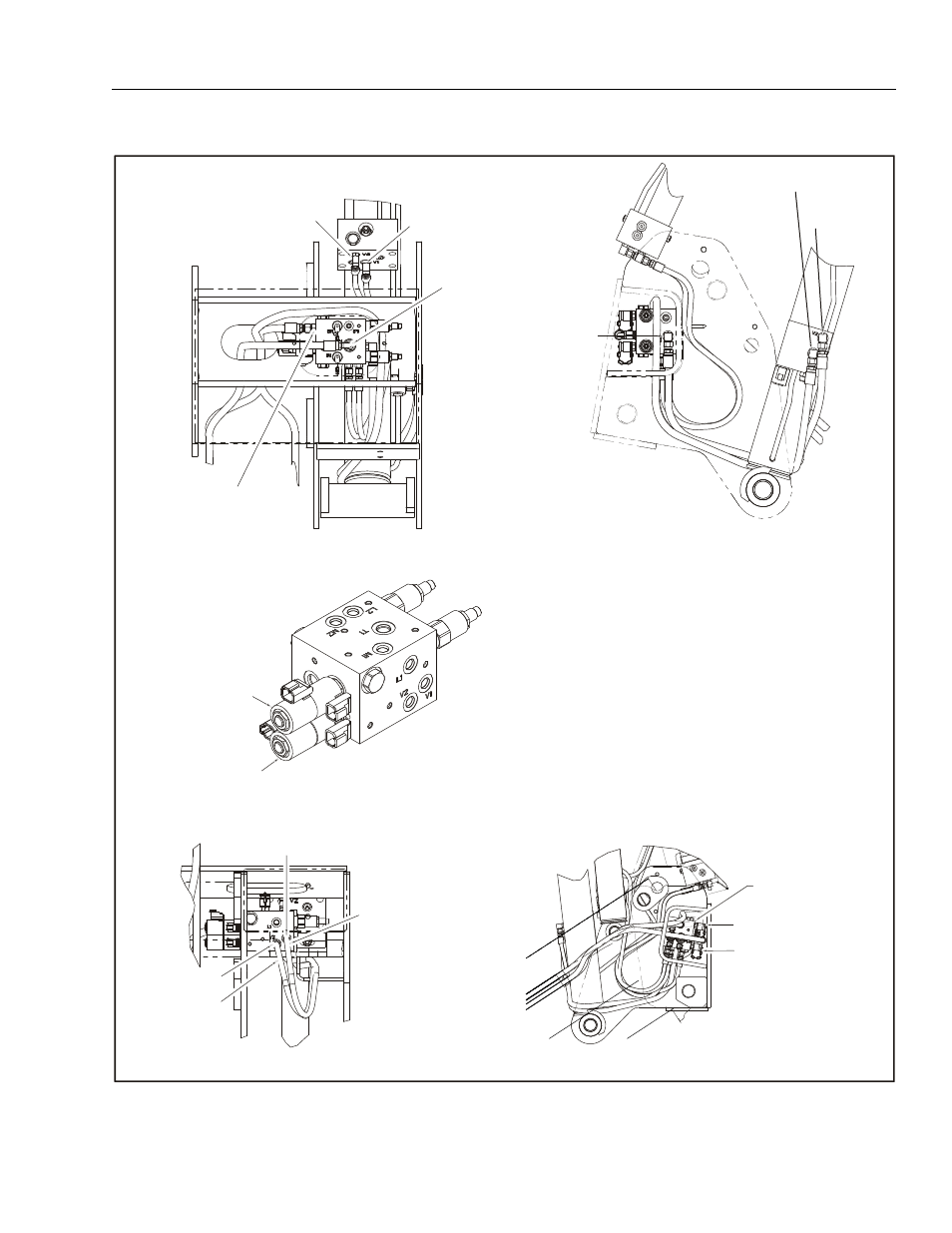

Figure 5-23. Upright Control Valve Identification

NOTE:

Solenoid Valves are torqued 19-21 ft.lbs. (25.8-28.6 Nm).
Coils are torqued 4-5 ft.lbs. (5.4-6.8 Nm).

NOTE:

Solenoid Coils are rated at 9.8 Ohms.

1001116229-D
