SECTION 5 - HYDRAULICS
5-26 – JLG Lift – 3121259
2 11
9
10
10
4
9
9
3
12
1 11
12
6 6
10 13
16
10
7
14
14
16
16
5 15
16
14
16
8
1001116487-E

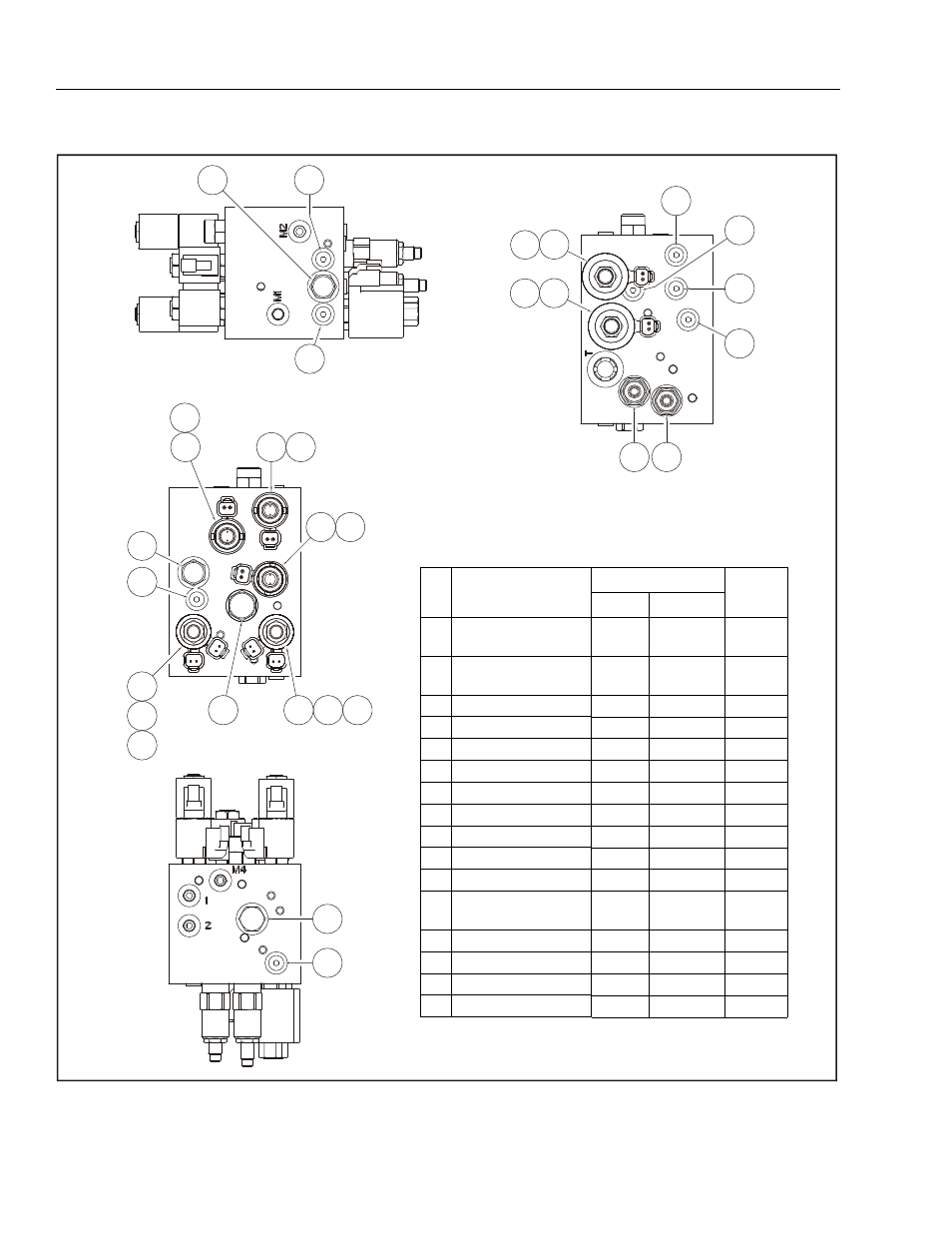

Figure 5-16. Main Control Valve Torque Specifications
Table 5-6. Main Control Valve Specifications
# Item
Torque
Ohms
ft.lbs. Nm
1 Solenoid /w Integral Relief
Valve 24-26 32.7-35.4 - -
2 Solenoid /w Integral Relief
Valve 24-26 32.7-35.4 - -
3 Solenoid Valve 16-20 24.4-27.1 - -
4 Solenoid Valve 16-20 24.4-27.1 - -
5 Relief Valve 19-21 25.8-28.6 - -
6 Flow Control Valve 19-21 25.8-28.6 - -
7 Flow Control Valve 19-21 25.8-28.6 - -
8 Load Shuttle Valve 19-21 25.8-28.6 - -
9 Coil 5-7 6.8-9.5 5.4
10 Coil 5-7 6.8-9.5 9.8
11 Coil 5-7 6.8-9.5 7.2
12 Pressure Compensated Flow
Regulator Valve 19-21 25.8-28.6 - -
13 Pressure Compensator 24-26 32.7-35.4 - -
14 Check Valve 12-14 16.3-19 - -
15 Relief Valve 19-21 25.8-28.6 - -
16 Plug 12-14 16.3-19 - -
