SECTION 5 - HYDRAULICS
5-28 – JLG Lift – 3121259
11
8 8
9
2 9
6
7
10
7
3
1 1
10
4 11
11 4
7
7
6
1001118029-D

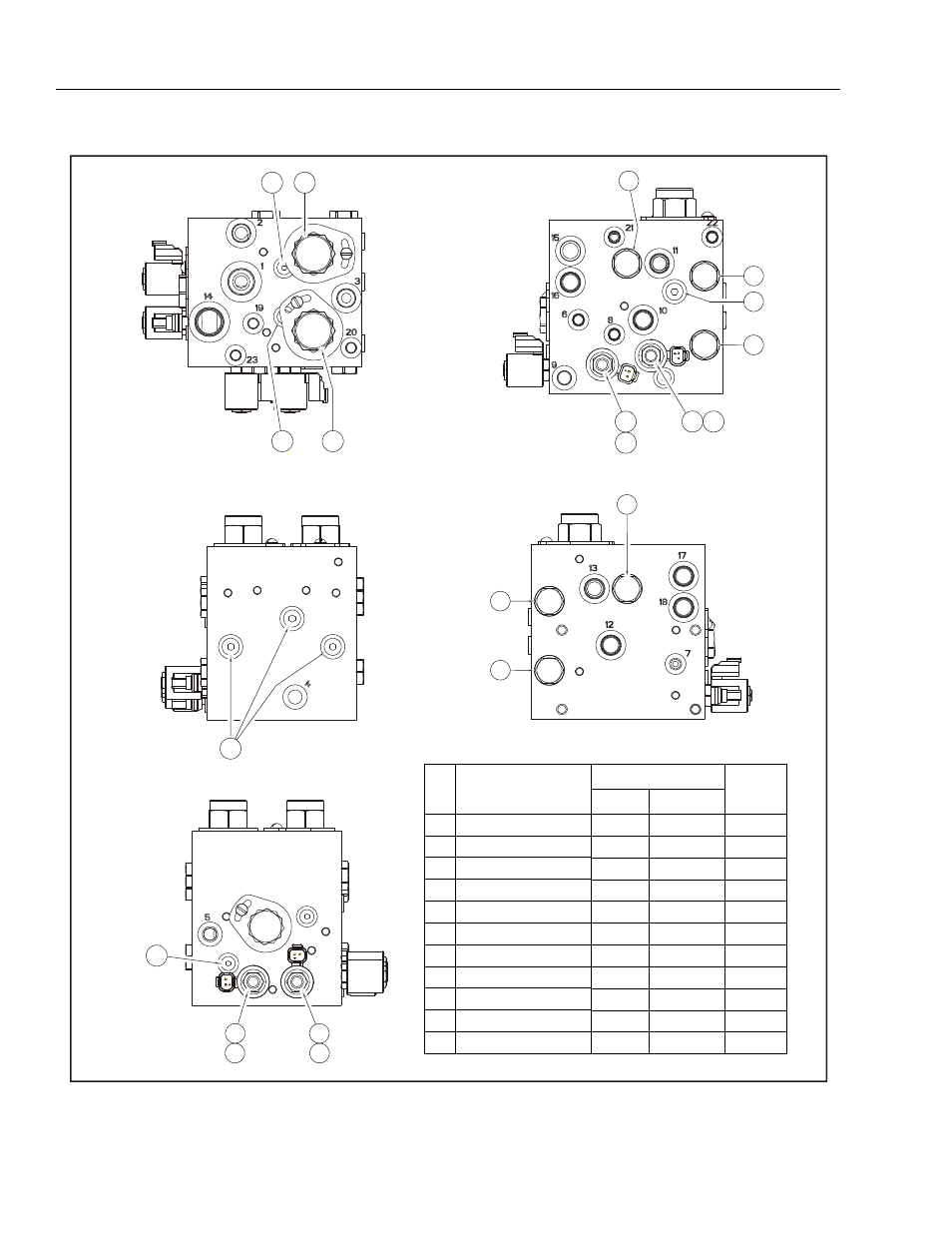

Figure 5-18. Flow Divider Valve Torque Specifications
Table 5-6. Flow Divider Specifications
# Item
Torque
Ohms
ft.lbs. Nm
1 Solenoid Valve 4-5 5.4-6.8 - -
2 Solenoid Valve 4-5 5.4-6.8 - -
3 Solenoid Valve 4-5 5.4-6.8 - -
4 Pilot/Directional Valve 46-54 62.6-73.4 - -
5 Flow Divider Valve 73-77 99-104 - -
6 Flow Divider Valve 48-52 65-70 - -
7 Check Valve 24-26 32.5-35.25 - -
8 Coil 4-5 5.4-6.8 8.8
9 Coil 4-5 5.4-6.8 8.8
10 Plug 24-26 32.5-35.25 - -
11 Plug 12-14 16.3-19 - -
