Page 63

SECTION 3 - CHASSIS & TURNTABLE

3121259

– JLG Lift –

3-23

Repeat Steps (2-6) for the installation of the two remain-
ing Planet Gears (4F).

NOTE:

All components should receive a generous amount of lubri-
cant oil as they are being assembled.

Grease O-Ring (18) and place it into groove of Housing
(1D).

Place Ring Gear (1E) onto Housing (1D). Align the three
shipping cap screw holes on Housing (1D) and Ring
Gear (1E).

Install three Shipping Cap Screws (19) into Ring Gear
(1E) and Housing (1G). Torque them to15-20 ft-lbs.

10.

With the non-toothed end facing up, place the Sun Gear
(11) into mesh with the planet gears from the Housing-
Spindle Subassembly.

Cover Subassembly

Grease O-Ring (6E) and insert into internal groove in
Cover (6A).

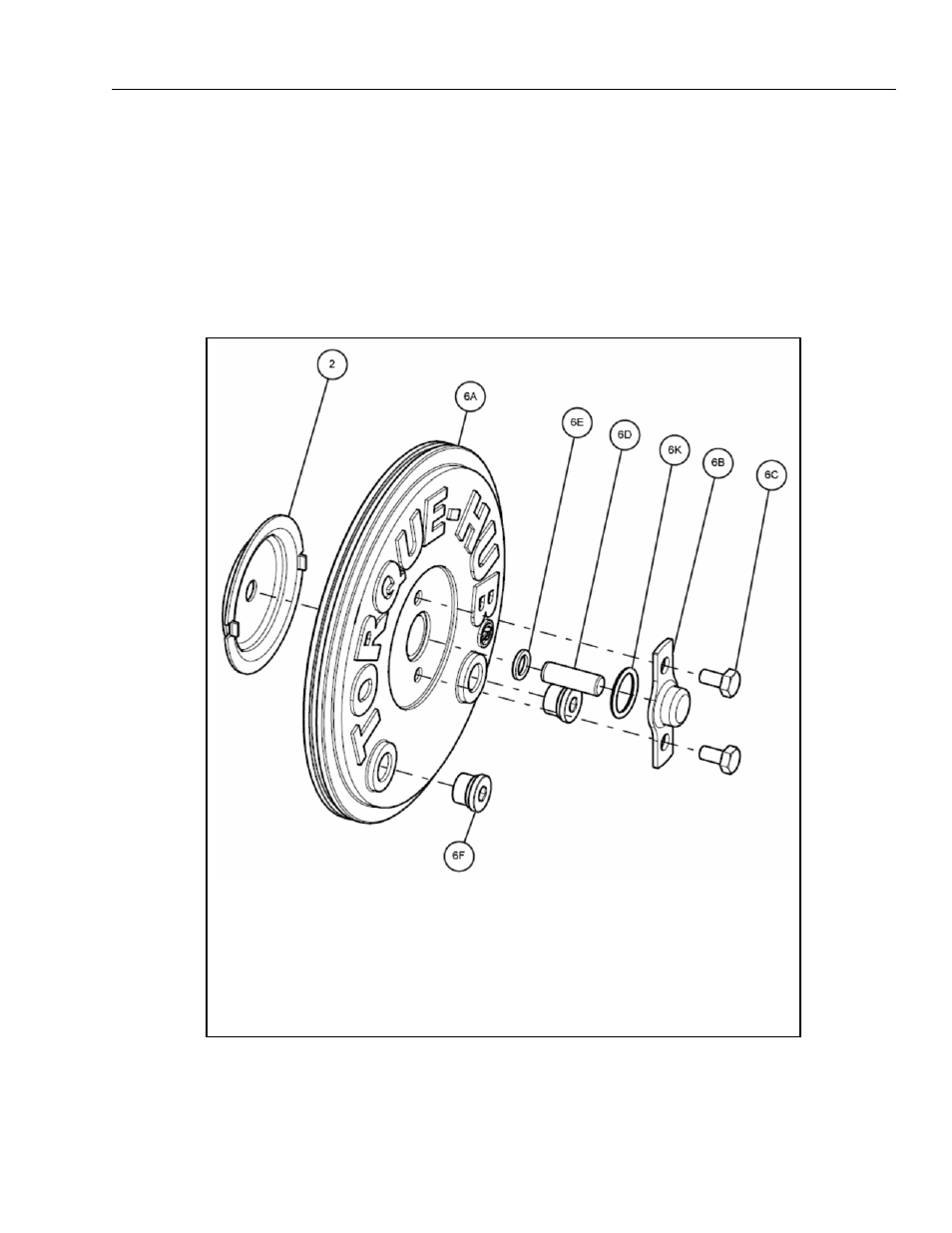

Figure 3-21. Cover

2. Thrust Spacer
6A. Cover
6B. Disengage Cap
6C. Bolt
6D. Dowel Pin
6E. O-ring
6F. Pipe Plug
6K. O-ring
