SECTION 5 - HYDRAULICS
5-66 – JLG Lift – 3121259
6. Repeat steps four and five until you reach the desired PL
setting. After adjustment, torque the locknut (L024) to
12 Nm [9 ft.lbs.]. Do not over torque.
7. Shut down the prime mover. Remove gauges and
replace plugs.
Table 5-15. Pressure Limiter Settings
Pressure limiter setting HPRV setting
150 200
180 230
200 250
230 280
250 300
280 330
300 350
330 380
350 400
380 420
400 450
410
420
430 480
440
450
460 510
470
480
Table 5-15. Pressure Limiter Settings
Pressure limiter setting HPRV setting

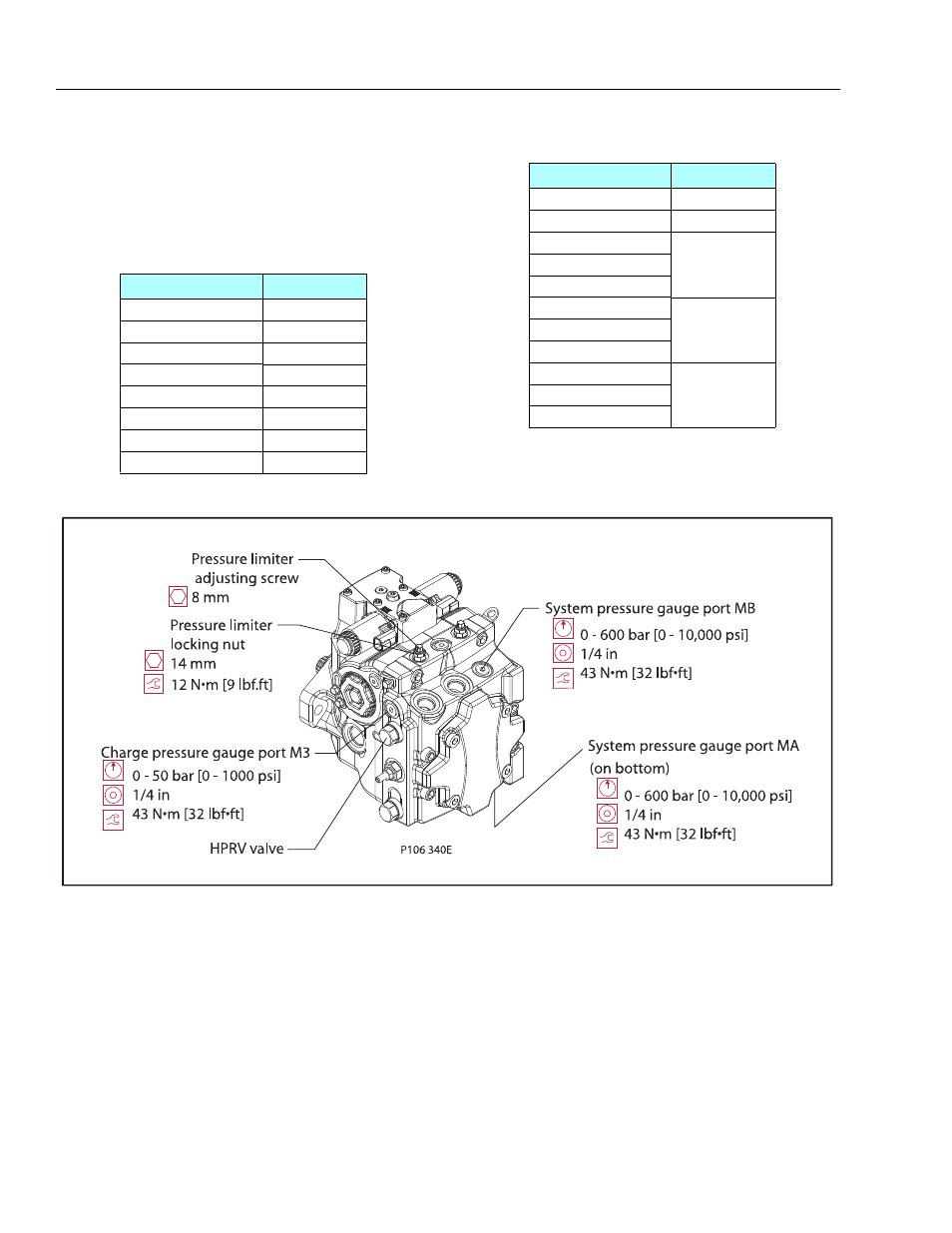

Figure 5-35. Pressure Limiter Adjustment
