SECTION 3 - CHASSIS & TURNTABLE
3-62 – JLG Lift – 3121259
A
A
NOTE: NUMEROUS COMPONENTS SHOWN
TRANSPARENT FOR ROUTING CLARITY
ROUTE HOSES/ CABLES
THROUGH GUIDE ROD
ON BASE BOOM
LOWER UPRIGHT
UPPER UPRIGHT
SYSTEM TANK
MAIN LIFT CYLINDER
PRESSURE
SYSTEM PRESSURE
BOOM CABLE
SECTION
A-A
ROTATED 33° CCW
(ORIENTATION LOOKING
TOWARDS UPPER UPRIGHT)
AC CABLE
WIRE BUNDLE
TO UPRIGHT
HYDRAULIC
MANIFOLD
18/6 CABLE
TO MAIN
BOOM LIMIT
SWITCHES
(ORIENTATION LOOKING TOWARDS
LOWER UPRIGHT)
SYSTEM TANK
TOWER LIFT CYLINDER TANK
TOWER LIFT CYLINDER PRESSURE
AC CABLE
MAIN LIFT CYLINDER PRESSURE
SYSTEM PRESSURE
BOOM CABLE
18/6 CABLE TO UPRIGHT HYDRAULIC MANIFOLD
18/6 CABLE TO MAIN BOOM LIMIT SWITCHES
18/2 CABLE TO TOWER CYLINDER MANIFOLD
SECTION B-B
ROTATED 28.5° CW

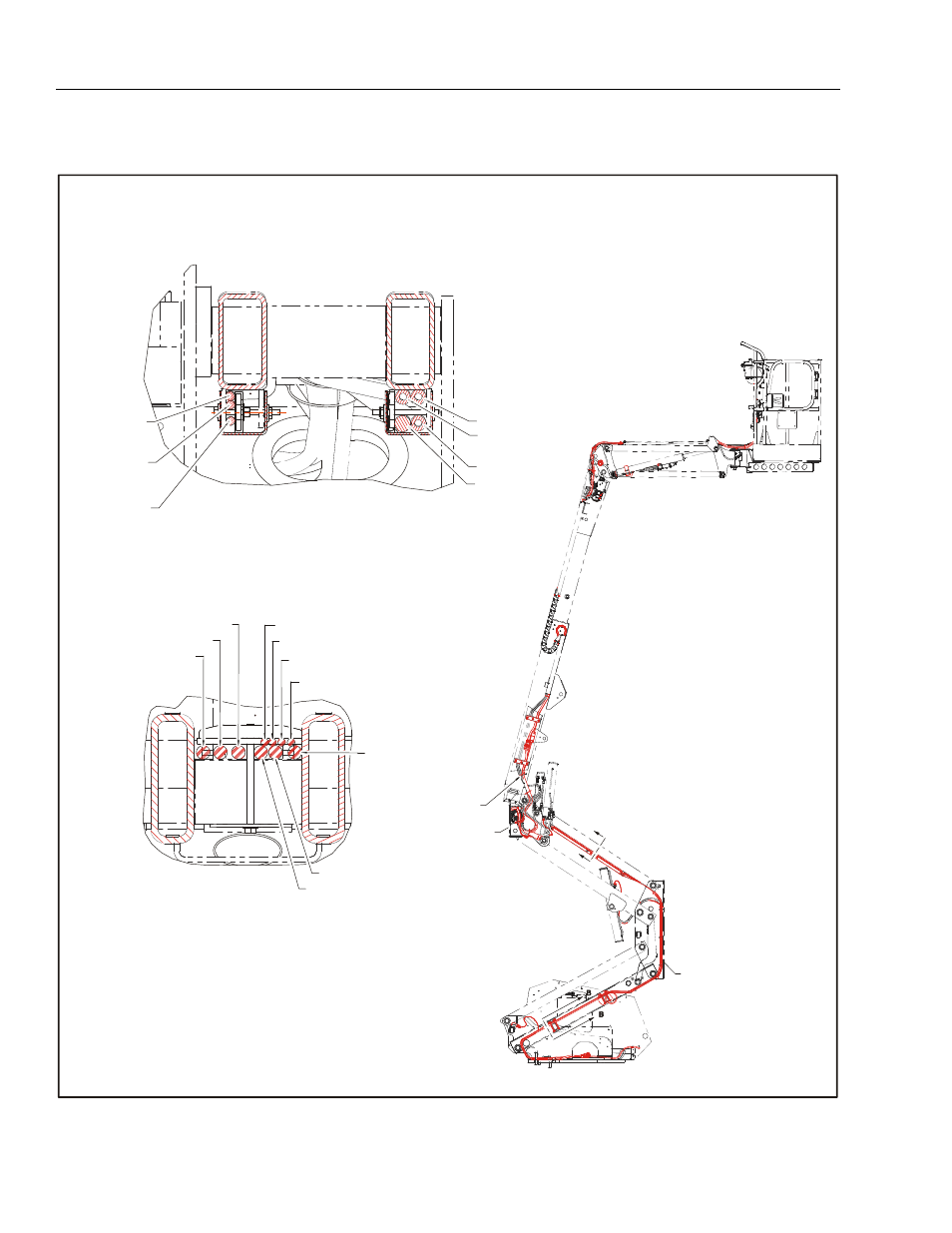

Figure 3-40. Cable Installation and Identification - Sheet 2 of 8
