SECTION 5 - HYDRAULICS
3121259 – JLG Lift – 5-55

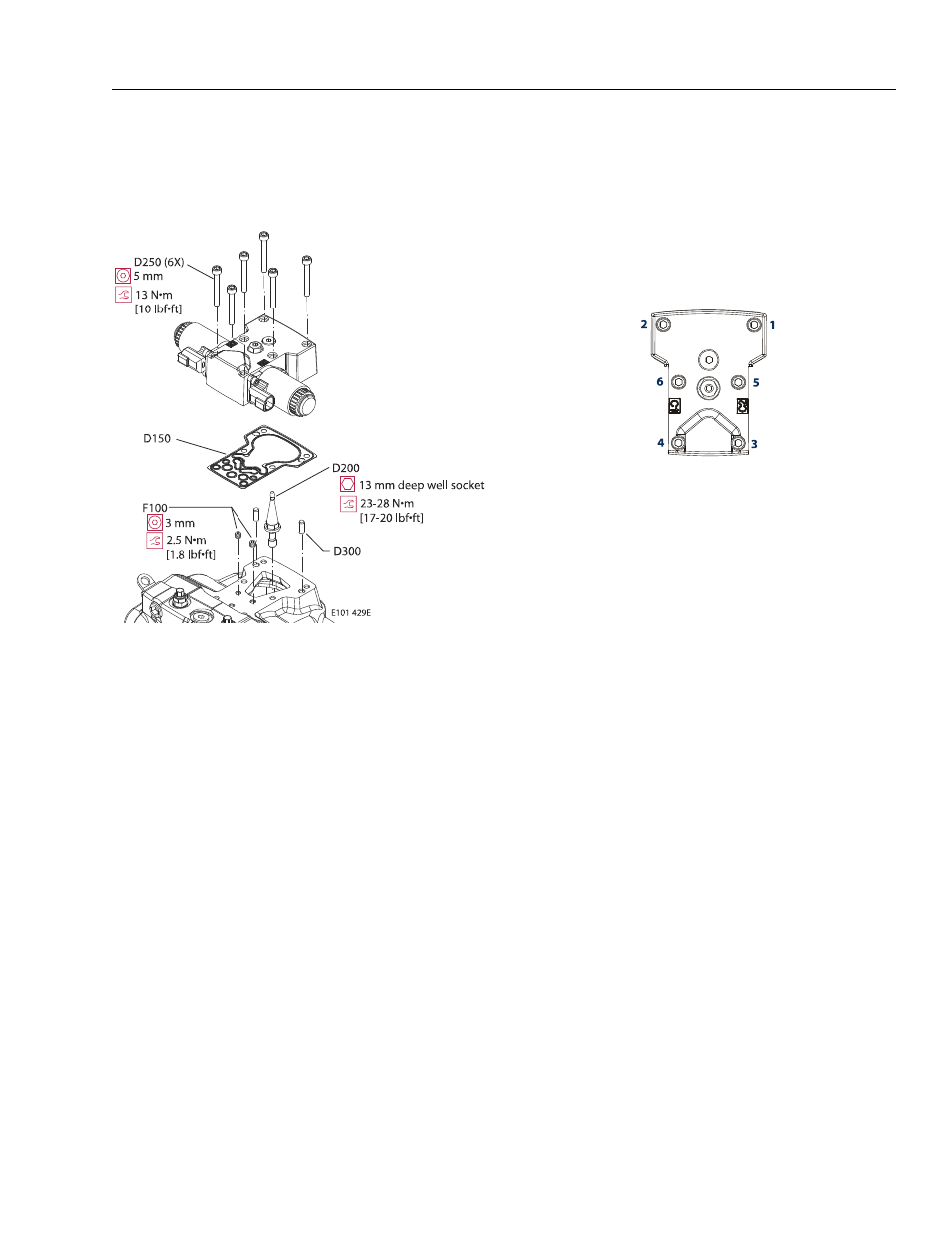

EDC CONTROL INSTALLATION
1. Use a 13 mm deep well socket to install feedback pin in
swashplate. Torque to 23-28 Nm [17-20 ft.lbs.]. Do not
overtorque.
NOTE: If orifices (F100) were removed, reinstall using a 3 mm
internal hex wrench.Torque to 2.5 Nm [1.8 ft.lbs.].
2. Install dowel pins (D300).
3. Install new gasket (D150).
4. Position control on pump housing. Remove plug on top
of control to visually ensure that feedback pin on swash-
plate is engaged properly in control arms.
5. Using a 5 mm internal hex wrench, fasten control to
pump with hex screws (D250). Torque screws to 13 Nm
[10 ft.lbs.]. Follow torque sequence shown.
