Center Sections on 11 section and larger boilers. THIS
IS IMPORTANT.
a. Carefully join a Center Section with nipples in
adjoining section and bump lightly to secure.
b. Run nut approximately 8” on two (2) ¾” draw-up
rods of equal length. (Note – more than one set of
draw-up rods are furnished on 8 section and larger
boilers). Place draw-up channel and one flat washer
against nut.
FIG. 3

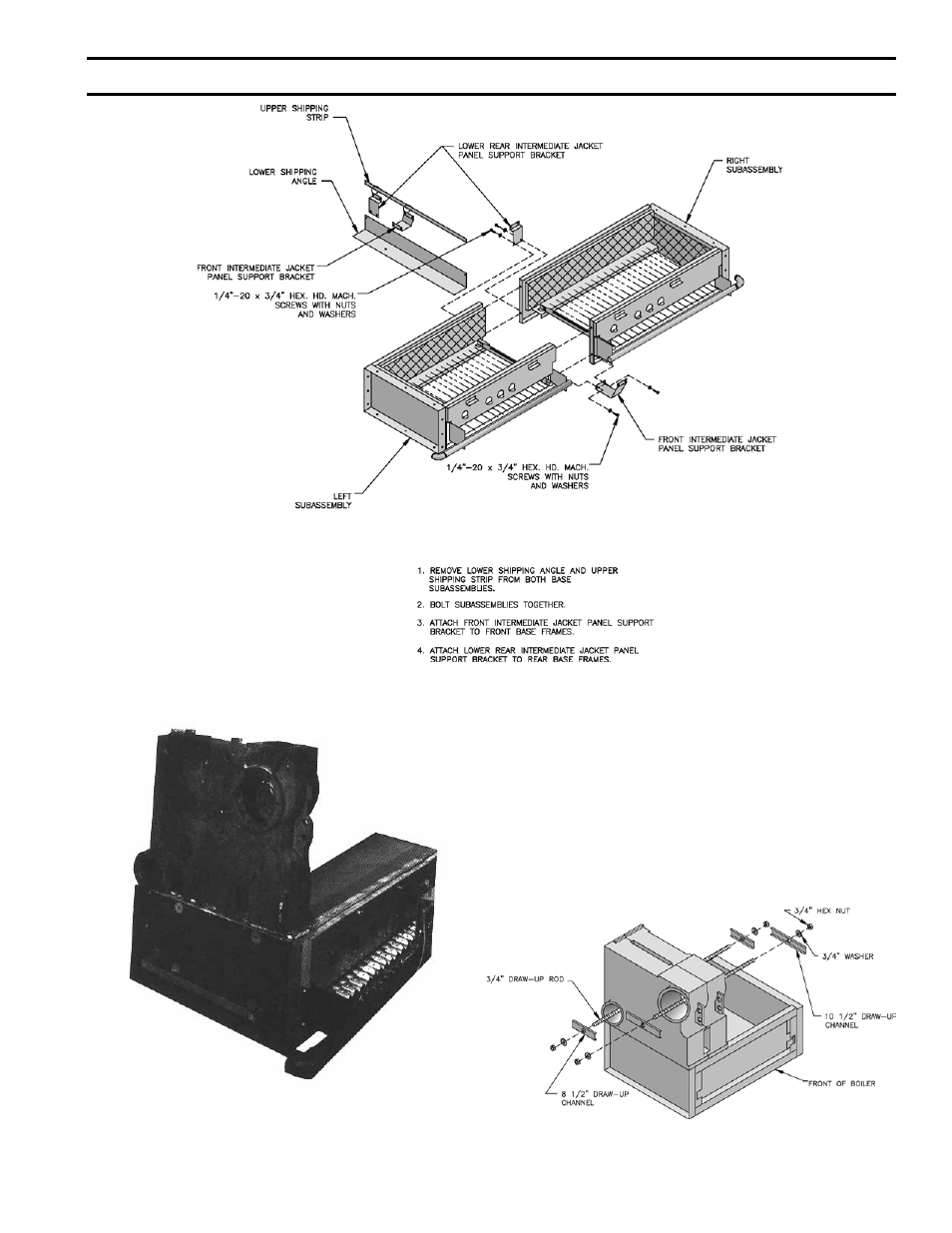

DUAL MANIFOLD BASES - 5015B THRU 5026B SECTION BOILERS
FIG. 4
LEH SECTION ON BASE FIG. 5
ASSEMBLY OF CENTER SECTIONS
SecTiON iii – iNSTALLATiON iNSTRUcTiONS (continued)
