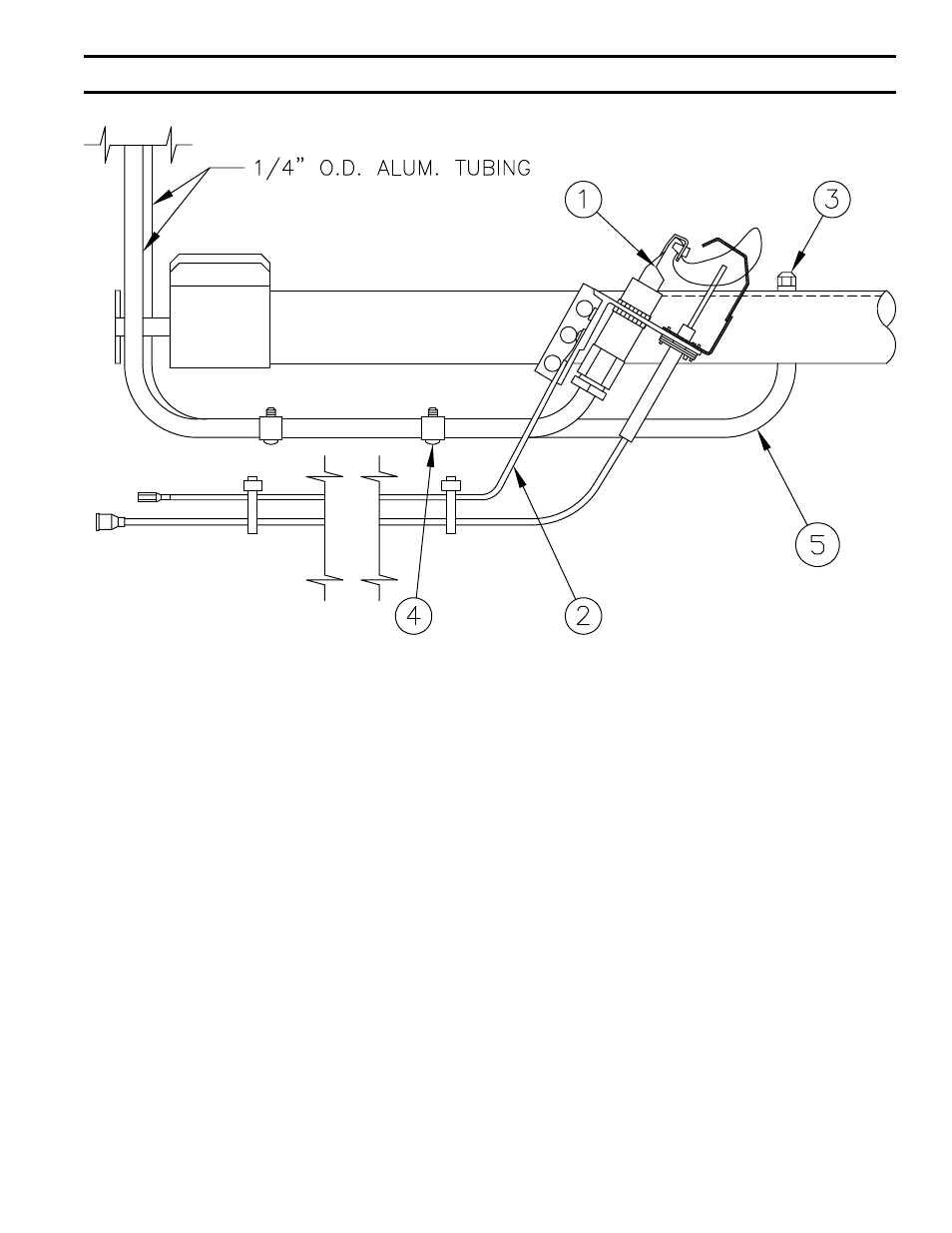

EI CONTROL SYSTEM - HONEYWELL Q3481 PILOT ASSEMBLY
EI CONTROL SYSTEM - PILOT ASSEMBLY
6236072 EI - 1, NAT., 5006B - 6009B Sections
6236075 EI - 2, NAT., 5010B - 5026B Sections
6236076 EI - 2, NAT., 5010B - 5026B Sections
Not Available ........LP, 5010B - 5026B Sections
PART NO.
ITEM
100331-01
(1) Pilot Burner/Igniter/Sensor Honeywell Q3481B1172, Nat. Gas with NE22 orifice
100332-01
(1) Pilot Burner/Igniter/Sensor Honeywell Q3481B1180, LP Gas with KR14 orifice
6136054
(2) Pilot Ground Wire Assembly, 36” (5006B - 5009B)
6137375
(2) Pilot Ground Wire Assembly, 72” (5010B - 5026B)
8236015
(3) Vent Tube Tip (USA Only) (5010B - 5026B Sections Only)
8236016
(4) Vent Tube Clip - Tinnerman C4886A4-27 (USA Only) (5010B - 5026B Sections Only)
8236048
(5) Vent Tube - ¼” x 18” Long Aluminum Tubing
For Canada, Omit Vent Tube, Vent Tube Tip and Vent Tube Clips. These items are not
used on 5006B - 5009B Sections, Robertshaw Gas Valves - USA.
