HDMI Control 09
91
En
Chapter 9
HDMI Control
By connecting this amplifier to an HDMI Control-
compatible Pioneer plasma television or the HDD/DVD
recorder with an HDMI cable, you can control this
amplifier from the remote control of a connected plasma
television, as well as have the connected plasma
television automatically change inputs in response to
operations carried out on this unit.
Refer to the operating manual for your plasma television
for more information about which operations can be
carried out by connecting via HDMI cable.
• You cannot use this function with components that
do not support HDMI Control.
• We cannot guarantee this unit will work with HDMI
Control-compatible components other than those
made by Pioneer.

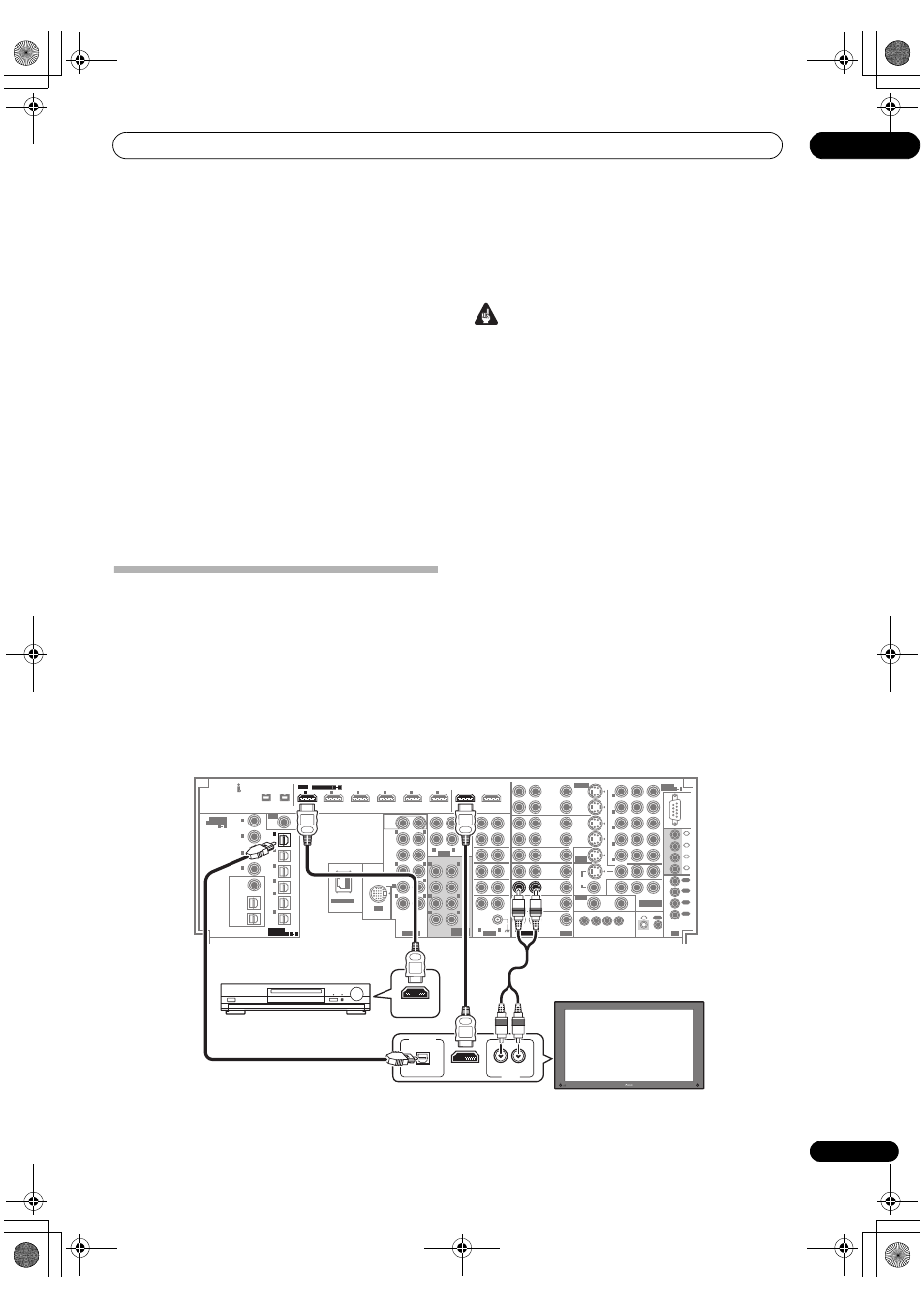

Making the HDMI Control connections
You can use synchronized operation for a connected
plasma television and up to six other components.
Be sure to connect the plasma television’s audio cable to
the audio input of this unit.
Important
• When connecting this system or changing
connections, be sure to switch the power off and
disconnect the power cord from the wall socket.
After completing all connections, connect the power
cords to the wall socket.
• After connecting this amplifier to an AC outlet, a 15
second initialization process begins. You cannot
carry out any operations during initialization. The
HDMI indicator on the display unit blinks during
initialization, and you can turn this amplifier on once
it has stopped blinking.
• To get the most out of this function, we recommend
that you connect your HDMI component not to a
plasma television but rather directly to the HDMI
terminal on this amplifier.
• To use the HDMI control function, connect this
amplifier and plasma television using the HDMI OUT
1 terminal. Connecting the HDMI control compatible
component using the
HDMI OUT 2 terminal may
result in malfunction. If this happens, turn off the
HDMI control compatible component’s HDMI control
setting.
• HDMI Control is compatible with up to six units, 3
DVD or Blu-ray disc players and 3 DVD or Blu-ray disc
recorders. (The maximum number of units may differ
depending on the connected plasma television.)
S400 S400 (AUDIO)
(For LD)
ASSIGNABLE 6 1
ASSIGNABLE
L R VIDEO AUDIO L R AUDIO
L
L
L
R
R
L R
R
L
L
R
R
L R
L R
AUDIO
ZONE3 OUT
ZONE2 OUT
ZONE2 OUT
ZONE3 OUT
MONITOR OUT OUT
IN
1
IN
2
IN
3
IN
4
1
OUT
2
OUT
3
OUT 4
IR
CONTROL
COMPONENT
VIDEO
ASSIGN-
ABLE
ASSIGN-
ABLE
VIDEO
IN OUT
SUB
WOOFER
FRONT
CENTER
1 2
1 2
EXTRA
SUR- ROUND
(Single) SUB W.
FRONT
CENTER
SUR- ROUND
SUR- ROUND BACK
SURROUND
BACK
PRE OUT MULTI CH IN
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 OUT1
(HDMI CTRL) OUT2
HDMI
RF IN
IN
(TV) 1
IN (SAT)
2
IN
(DVR/
VCR 1)
3
IN
(DVR/
VCR 2)
4
IN (VIDEO/
GAME
1)
5
IN
(CD-R/
TAPE/ MD)
6
(DVD/LD)
2 IN 1
(BD)
IN 2
(CD)
IN 3
(SACD) IN 4
COAXIAL
1 4
ASSIGNABLE
OPTICAL
1 6
ZONE2
OUT
SOURCE
OUT
ZONE3
/SOURCE
OUT
1 2 3 4
12 V TRIGGER
(DC OUT 12V TOTAL 250 mA MAX)
RS-
232C
VIDEO/
GAME 1
IN
SAT IN IN
IN
TUNER
IN
IN
IN
CD-R/ TAPE/ MD
REC SEL OUT
CD
SACD
PHONO
TV IN
BD IN
DVD/LD IN
IN IN
IN
(DVD/LD)
IN (DVD/LD)
1
1 5
IN
(VIDEO/
GAME 1)
3
IN
(BD) 2
IN
(DVR/VCR 1) 4
IN
(DVR/VCR 2) 5
IN
ZONE2 OUT
DVR/ VCR 2
DVR/ VCR 1
REC SEL OUT REC SEL OUT
IN
REC SEL OUT REC SEL OUT
S-VIDEO Y P B P R
LAN (10/100)
IN
iPod
TV IN
L R AUDIO ASSIGNABLE
OPTICAL
1 6
IN
(TV) 1
ASSIGNABLE 6 1
IN 1 OUT1
(HDMI CTRL) HDMI
AV OUT
AUDIO R L
DIGITAL OUT
HDMI IN
HDMI OUT
SC-LX90
HDMI/DVI-equipped component
HDMI/DVI-compatible monitor
or plasma television
