Controls and displays 04
31
En
9 MASTER VOLUME dial
10 ACTIVE MONITOR indicator
The indicators of the speaker terminals compatible with
sound output are lit.

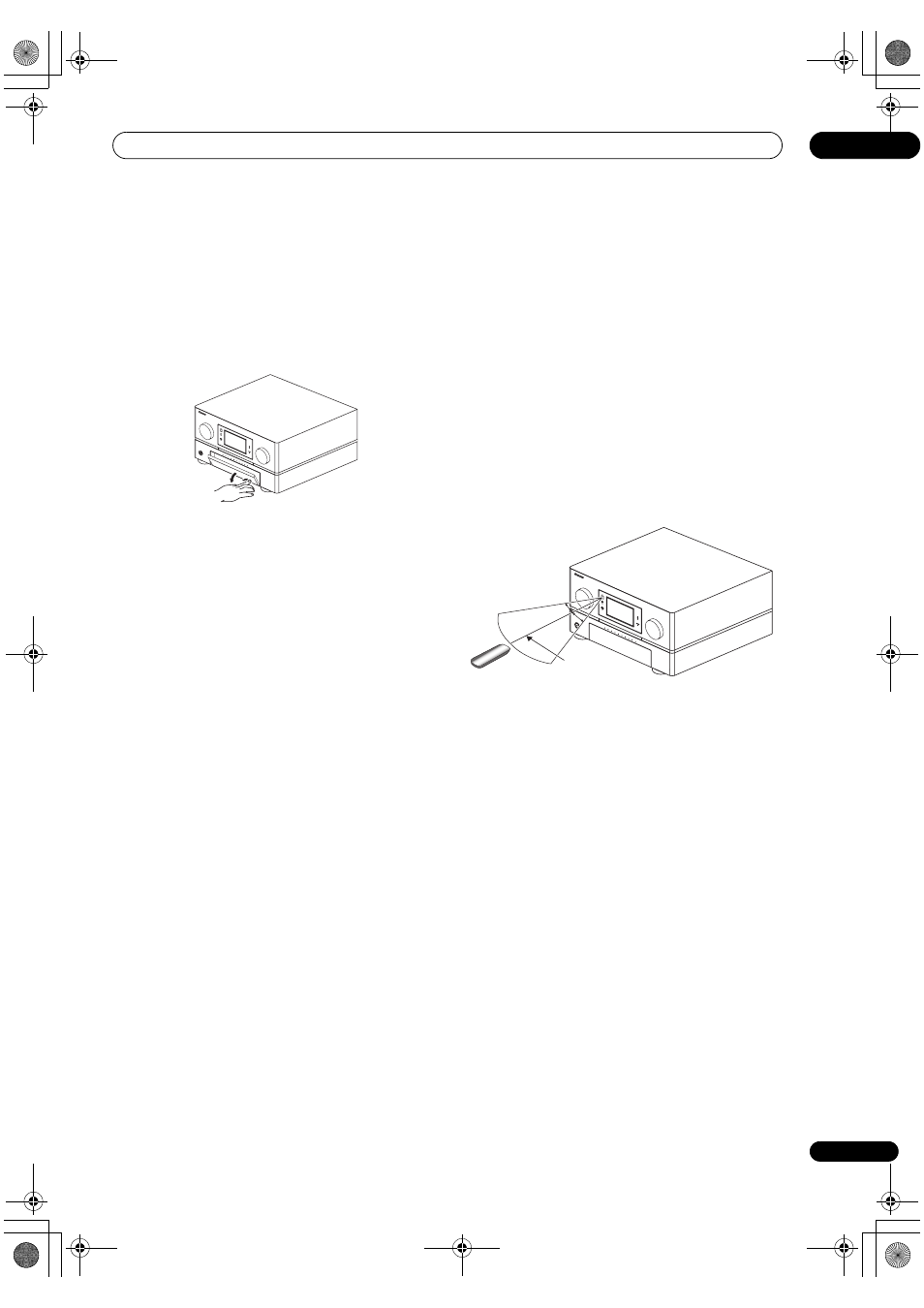

11 Front panel controls
To access the front panel controls, push gently on the
lower third portion of the panel with your finger.
12 MULTI-ZONE CONTROL
If you’ve made MULTI-ZONE connections (see
MULTI-
ZONE listening on page 64) use these controls to control
the sub zone from the main zone (see
Using the MULTI-
ZONE controls on page 66).
13 AUDIO PARAMETER
Use to access the Audio options (page 99).
14 VIDEO PARAMETER
Use to access the Video options (page 101).
15 /// /ENTER
Use the arrow buttons when setting up your surround
sound system (see page 40).
16 STATUS
Information on the currently selected and set functions,
the input signal, etc., is displayed on the LCD (page 104).
17 LCD VIEW
The information shown on the LCD can be switched in
three steps (page 103).
18 DIMMER
Dims or brightens the LCD display (page 103).
19 USB interface
Connect a USB audio device for playback (page 73).
20 SPEAKERS
Use to change the speaker system (page 61).
21 AUTO SURROUND/STREAM DIRECT
Press to select Auto Surround (page 34) or Stream Direct
(page 36) listening.
22 PHONES jack
Use to connect headphones. When the headphones are
connected, there is no sound output from the speakers.
23 MCACC SETUP MIC jack
Use to connect the supplied microphone.
24 SETUP
Press to access the System Setup menu (page 40).
25 RETURN
Press to confirm and exit the current menu screen.
26 VIDEO/GAME 2 INPUT
See
Connecting a component to the front panel inputs on
page 26.
Operating range of remote control unit
The remote control may not work properly if:
• There are obstacles between the remote control and
the amplifier’s remote sensor.
• Direct sunlight or fluorescent light is shining onto the
remote sensor.
• The amplifier is located near a device that is emitting
infrared rays.
• The amplifier is operated simultaneously with
another infrared remote control unit.
SC-L X90
MAST ER VOLU ME
STA NDB Y/O N
INPUT SEL EC TOR
R1 R2 R3 R4 R5 ACT IVE MON ITOR L5 L4 L3 L2 L1
SC- LX90
MA STER VOLU ME
STA NDB Y/O N
INP UT SEL ECT OR
R1 R2 R3 R4 R5 ACT IVE M ONIT OR L5 L4 L3 L2 L1
7 m
30°
30°
