Simple Home Theater Guide 02
13
En
If you see an error message ( ERR) in the right side
column (or the speaker configuration displayed isn’t
correct), there may be a problem with the speaker
connection. If selecting
RETRY doesn’t work, turn off the
power and check the speaker connections. If there
doesn’t seem to be a problem, you can simply use
/
to select the speaker and
/ to change the setting
(and number for surround back) and continue.
6 Make sure ‘OK’ is selected, then press ENTER.
A progress report is displayed on-screen while the
amplifier outputs more test tones to determine the
optimum amplifier settings for Channel Level, Speaker
Distance, Standing Wave, Acoustic Cal EQ and Full Band
Phase Control.
Again, try to be as quiet as possible while this is
happening. It may take 3 to 10 minutes.
7 The Auto MCACC Setup has finished! Press RETURN
to go back to the System Setup menu.
1
Be sure to disconnect the microphone from this amplifier
upon completion of the Auto MCACC setup.
The settings made in the Auto MCACC Setup should give
you excellent surround sound from your system, but it is
also possible to adjust these settings manually using the
System Setup menu (starting on page 40).
2
Problems when using the Auto MCACC Setup
If the room environment is not optimal for the Auto
MCACC Setup (too much background noise, echo off the
walls, obstacles blocking the speakers from the
microphone) the final settings may be incorrect. Check
for household appliances (air conditioner, fridge, fan,
etc.), that may be affecting the environment and switch
them off if necessary. If there are any instructions
showing in the front LCD display, please follow them.
• Some older TVs may interfere with the operation of
the microphone. If this seems to be happening,
switch off the TV when doing the Auto MCACC Setup.

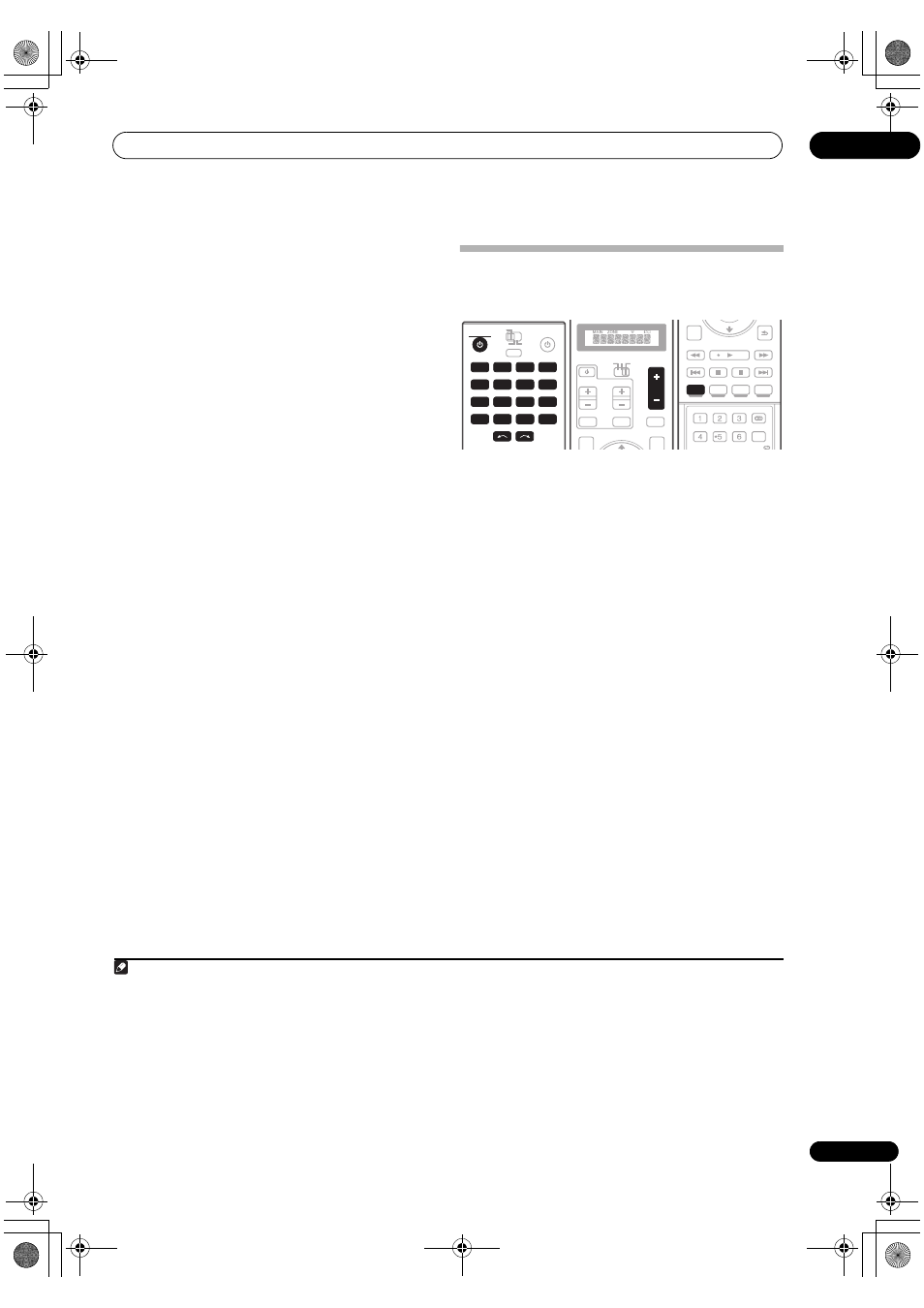

Playing a source
Here are the basic instructions for playing a source (such
as a DVD disc) with your home theater system.
1 Switch on your system components and amplifier.
Start by switching on the playback component (for
example a DVD player), your TV
3
and subwoofer (if you
have one), then the amplifier (press AV AMPLIFIER ).
• Make sure the setup mic is disconnected.
2 Select the input source you want to play.
You can use the input source buttons on the remote
control,
INPUT SELECT, or the front panel INPUT
SELECTOR dial. 4
3 Press AUTO/DIRECT (AUTO SURROUND/STREAM
DIRECT) to select ‘AUTO SURROUND’ and start
playback of the source. 5
If you’re playing a Dolby Digital or DTS surround sound
DVD disc, you should hear surround sound. If you are
playing a stereo source, you will only hear sound from the
front left/right speakers in the default listening mode.
• See also Listening to your system on page 34 for
information on different ways of listening to sources.
It is possible to check on the LCD whether or not multi-
channel playback is being performed properly.
When using a surround back speaker, Dolby Digital EX
is displayed when playing Dolby Digital signals, and
DTS+Neo:6 is displayed when playing DTS 5.1-channel
signals.
When not using a surround back speaker, Dolby Digital
is displayed when playing Dolby Digital signals.
Note
1 You can also choose to view the settings from the MCACC Data Check screen. See Automatic MCACC (Expert) on page 40 for more on this.
2 • Depending on the characteristics of your room, sometimes identical speakers with cone sizes of around 12 cm end up with different size settings. You
can correct the setting manually using the
Manual speaker setup on page 52.
• The subwoofer distance setting may be farther than the actual distance from the listening position. This setting should be accurate (taking delay and
room characteristics into account) and generally does not need to be changed.
• If Auto MCACC Setup measurement results are incorrect due to the interaction of the speakers and viewing environment, we recommend adjusting
the settings manually.
3 Make sure that the TV’s video input is set to this amplifier (for example, if you connected this amplifier to the
VIDEO 1 jacks on your TV, make sure that
the VIDEO 1 input is now selected).
4 If you need to manually switch the input signal type press SIGNAL SEL (page 37).
5 • You may need to check the digital audio output settings on your DVD player or digital satellite receiver. It should be set to output Dolby Digital, DTS and
88.2 kHz / 96 kHz PCM (2 channel) audio, and if there is an MPEG audio option, set this to convert the MPEG audio to PCM.
• Depending on your DVD player or source discs, you may only get digital 2 channel stereo and analog sound. In this case, the amplifier must be set to
a multichannel listening mode (see Listening in surround sound on page 34 if you need to do this) if you want multichannel surround sound.
DVD
AV AMPLIFIER SOURCE MAIN
MULTI
OPERATION
ZONE2 3
DVR1
GALLERY
HOME MEDIA
INPUT SELECT
CD
TUNER iPod HDMI PHONO
CD-R
DVR2 VIDEO1 VIDEO2
BD TV SAT
SACD
DVD
GALLERY
HOME MEDIA
CD
TUNER iPod HDMI PHONO
CD-R
BD TV SAT
SACD
DVR1 DVR2 VIDEO1 VIDEO2
AV AMPLIFIER
AUDIO
PARAMETER
VIDEO
PARAMETER
SOURCE TV AMP
INPUT MUTE MUTE
VOL
VOL
TV CONTROL
CH
VOL
STATUS
THX
CH LEVEL
RETURN
SETUP
STEREO/
F.S.SURR
SIGNAL SEL SLEEP AUDIO DIMMER
SR+ SBch PHASE iPod CTRL
A.ATT GENRE HDMI OUT
DISP
AUTO/
DIRECT STANDARD ADV SURR AUTO/
DIRECT
