Connecting your equipment 03
26
En

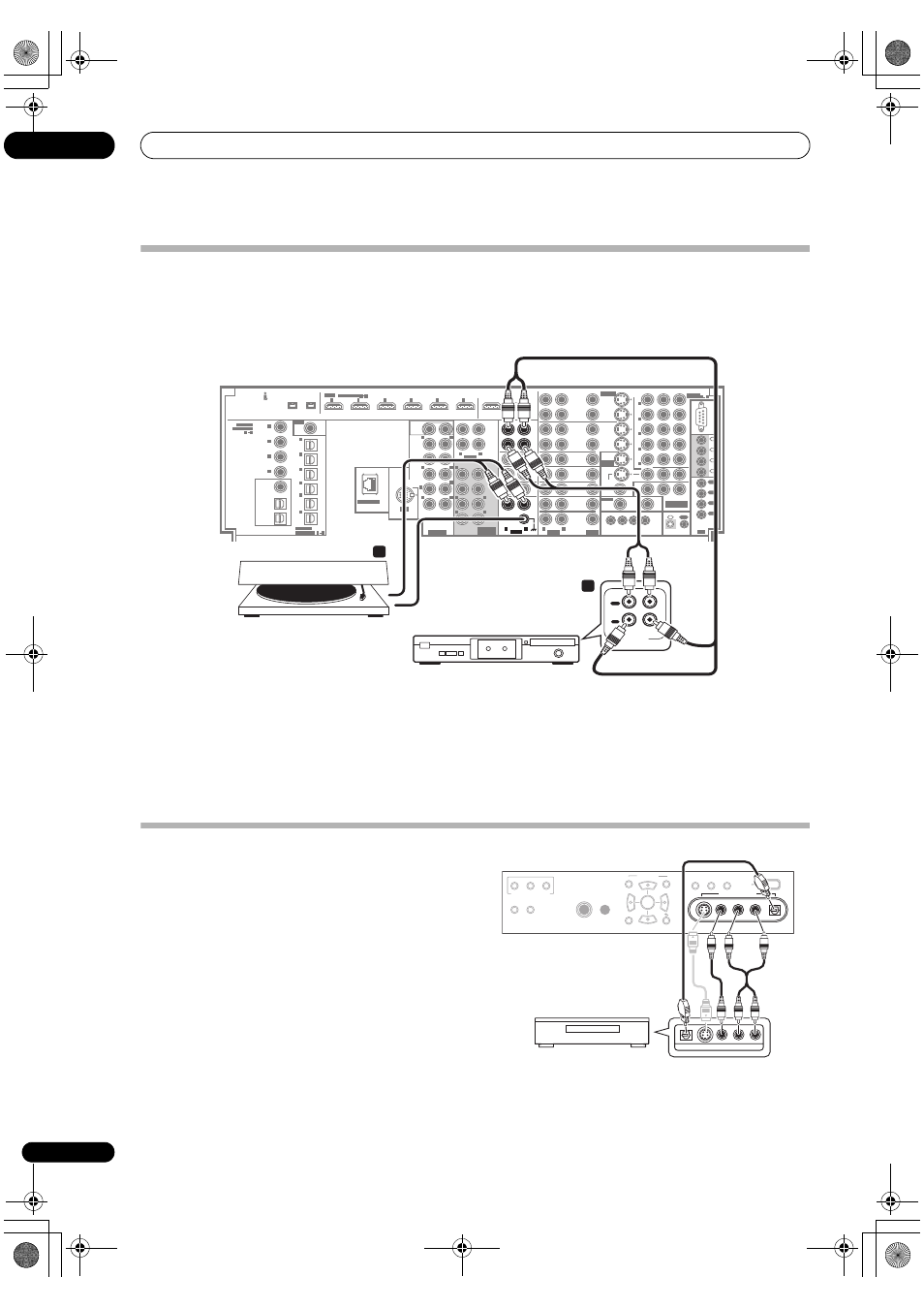

Connecting analog audio sources
This amplifier features five stereo audio-only inputs. One of these inputs have corresponding outputs for use with audio
recorders.
One of the audio inputs ( PHONO) is a dedicated turntable input which should not be used for any other type of
component. This input also has a grounding terminal that most turntables require.
1 Connect the analog audio outputs of the source
component to one of the AUDIO inputs.
Connect using a stereo RCA/phono jack audio cable.
• If you’re connecting a tape deck, MD recorder, etc.,
connect the analog audio outputs ( RECSEL OUT) to
the analog audio inputs on the recorder.
2 Turntables only: Connect the stereo audio outputs to
the PHONO inputs.
• If your turntable has a grounding wire, secure it to the
ground terminal on this amplifier.
• If your turntable has line-level outputs (i.e., it has a
built-in phono pre-amp), connect it to the CD inputs
instead.
Connecting a component to the front panel inputs
The front panel inputs comprise a composite video jack
(
VIDEO), an S-Video jack (S-VIDEO), stereo analog audio
inputs ( AUDIO L/R) and an optical digital audio input
( DIGITAL IN). You can use these connections for any kind
of audio/video component, but they are especially
convenient for portable equipment such as camcorders,
video games and portable audio/video equipment.
• Push down on the lower portion of the front panel
door to access the front video connections.
• Select these inputs using INPUT SELECT (remote) or
the INPUT SELECTOR dial (front panel) to select
VIDEO/GAME 2.
S400 S400 (AUDIO)
(For LD)
ASSIGNABLE 6 1
ASSIGNABLE
L R VIDEO AUDIO L R AUDIO
L
L
L
R
R
L R
R
L
L
R
R
L R
L R
AUDIO
ZONE3 OUT
ZONE2 OUT
ZONE2 OUT
ZONE3 OUT
MONITOR OUT OUT
IN
1
IN
2
IN
3
IN
4
1
OUT
2
OUT
3
OUT 4
IR
CONTROL
COMPONENT
VIDEO
ASSIGN-
ABLE
ASSIGN-
ABLE
VIDEO
IN OUT
SUB
WOOFER
FRONT
CENTER
1 2
1 2
EXTRA
SUR- ROUND
(Single) SUB W.
FRONT
CENTER
SUR- ROUND
SUR- ROUND BACK
SURROUND
BACK
PRE OUT MULTI CH IN
IN 1 IN 2 IN 3 IN 4 IN 5 IN 6 OUT1
(HDMI CTRL) OUT2
HDMI
RF IN
IN
(TV) 1
IN
(SAT)
2
IN (DVR/
VCR 1)
3
IN (DVR/
VCR 2)
4
IN
(VIDEO/ GAME 1)
5
IN (CD-R/ TAPE/
MD)
6
(DVD/LD)
2 IN 1
(BD) IN 2
(CD) IN 3
(SACD) IN 4
COAXIAL
1 4
ASSIGNABLE
OPTICAL
1 6
ZONE2
OUT
SOURCE
OUT
ZONE3
/SOURCE
OUT
1 2 3 4
12 V TRIGGER
(DC OUT 12V TOTAL 250 mA MAX)
RS-
232C
VIDEO/
GAME 1
IN
SAT IN IN
IN
TUNER
IN
IN
IN
CD-R/ TAPE/ MD
REC SEL OUT
CD
SACD
PHONO
TV IN
BD IN
DVD/LD IN
IN IN
IN
(DVD/LD)
IN (DVD/LD)
1
1 5
IN
(VIDEO/
GAME 1)
3
IN
(BD) 2
IN
(DVR/VCR 1) 4
IN
(DVR/VCR 2) 5
IN
ZONE2 OUT
DVR/ VCR 2
DVR/ VCR 1
REC SEL OUT REC SEL OUT
IN
REC SEL OUT REC SEL OUT
S-VIDEO Y P B P R
LAN (10/100)
IN
iPod
L R AUDIO
IN
PHONO
IN
CD-R/ TAPE/ MD
REC SEL OUT
PLAY
OUT
IN REC
R L
AUDIO IN/OUT
1
2
SC-LX90
Turntable
Tape deck, etc.
PHONES
SPEAKERS AUTO SURROUND
/STREAM DIRECT
STATUS
LCD
VIEW DIMMER CTRL ZONE2 ZONE3
VIDEO/GAME 2 INPUT
DIGITAL IN S-VIDEO VIDEO L R AUDIO
MULTI-ZONE CONTROL
MCACC
SETUP MIC
USB PARAMETER
SETUP
AUDIO VIDEO
RETURN
ENTER
VIDEO/GAME 2 INPUT
DIGITAL IN S-VIDEO VIDEO L R AUDIO
VIDEO OUTPUT DIGITAL OUT
TV game, video camera,
etc.
